DMX512 is the industry-standard communication protocol used to control professional stage lighting systems. From moving head lights and LED PAR fixtures to wash lights, spotlights, lasers, and special effects equipment, DMX allows multiple devices to operate together from a single controller.
However, even well-designed lighting systems can occasionally experience DMX signal problems. Symptoms such as flickering fixtures, delayed responses, random movements, or complete fixture failures are often caused by signal issues somewhere within the system.
Fortunately, most DMX problems can be diagnosed and resolved using a systematic troubleshooting approach.
In this guide, we’ll explain the most common DMX signal problems, their causes, and how to fix them quickly.

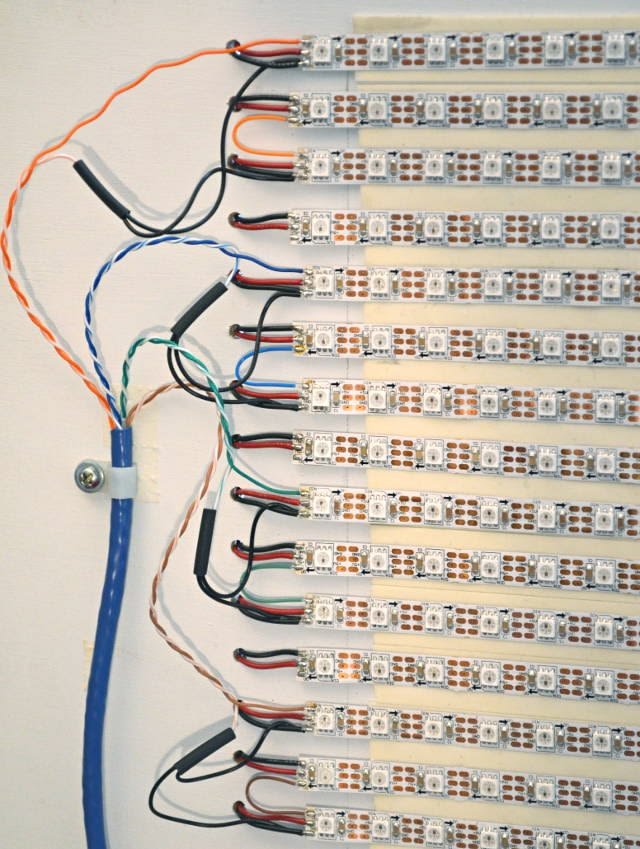

Why DMX Signal Problems Occur
DMX systems rely on stable communication between controllers and fixtures.
Signal issues typically result from:
- Incorrect addressing
- Faulty cables
- Wiring errors
- Damaged connectors
- Poor termination
- Signal interference
- Equipment failure
Understanding where communication breaks down is the key to solving DMX problems efficiently.
Common Symptoms of DMX Signal Problems
Before troubleshooting, identify the symptoms.
Fixture Does Not Respond
The fixture powers on but ignores control commands.
Flickering Lights
Fixtures randomly flash or behave unpredictably.
Delayed Responses
Commands are received but execute slowly.
Random Movement
Moving head fixtures move unexpectedly.
Intermittent Communication
Fixtures work occasionally and then stop responding.
Entire Fixture Chain Stops Working
Multiple fixtures lose communication simultaneously.
Each symptom points to a different potential cause.
Step 1: Verify Power Supply
Always start with the basics.
Confirm that:
- Fixtures are powered on
- Power cables are secure
- Circuit breakers have not tripped
- Power distribution units are functioning properly
Many “DMX problems” are actually power-related issues.
Step 2: Check DMX Addressing
Incorrect DMX addressing is one of the most common causes of communication failures.
Verify:
- Fixture addresses are correct
- Addresses do not overlap unintentionally
- Controller programming matches fixture addresses
Example:
- Fixture 1 = Address 001
- Fixture 2 = Address 017
- Fixture 3 = Address 033
Incorrect addressing can make fixtures appear unresponsive.
Step 3: Inspect DMX Cables
Damaged cables frequently cause signal issues.
Check for:
- Broken connectors
- Bent pins
- Loose connections
- Cable cuts
- Excessive wear
A simple cable replacement often resolves communication problems.
Step 4: Use Proper DMX Cables
Many technicians accidentally use microphone cables.
While they may appear similar, microphone cables are not designed for DMX communication.
Always use:
- 120-ohm DMX-rated cables
Using incorrect cables may result in:
- Signal loss
- Flickering fixtures
- Communication instability
Step 5: Check DMX IN and DMX OUT Connections
Signal flow must follow the correct direction.
Verify:
Controller → DMX IN → Fixture
Fixture DMX OUT → Next Fixture DMX IN
Reversed connections will prevent communication.
Step 6: Test Fixtures Individually
When troubleshooting larger systems:
- Disconnect all fixtures
- Connect one fixture directly to the controller
- Test operation
If the fixture responds correctly, reconnect additional fixtures one at a time.
This process helps identify the source of the problem.
Step 7: Inspect DMX Connectors
DMX connectors can become damaged through repeated use.
Check for:
- Corrosion
- Bent pins
- Loose sockets
- Physical damage
Even minor connector issues can disrupt communication.
Step 8: Install a DMX Terminator
Missing terminators are a common cause of unstable signals.
A DMX terminator should be installed in the final fixture’s DMX OUT port.
Benefits include:
- Improved signal stability
- Reduced reflections
- Fewer communication errors
Professional lighting systems almost always use terminators.
Step 9: Check Fixture DMX Modes
Many fixtures support multiple DMX operating modes.
Examples:
- Basic Mode
- Standard Mode
- Extended Mode
If the console expects one mode but the fixture uses another, communication problems may occur.
Always verify:
- Fixture mode
- Console profile
- Channel assignments
Step 10: Test the Controller
Sometimes the problem originates from the controller itself.
Verify:
- Output settings
- Universe assignments
- Software configuration
- Controller hardware
Testing with another fixture can help isolate controller-related issues.
Step 11: Check for Signal Interference
Electrical interference can affect DMX communication.
Potential sources include:
- High-voltage cables
- Power transformers
- Motors
- Wireless devices
Best practice:
- Separate DMX cables from power cables whenever possible.
Step 12: Inspect the Entire Fixture Chain
A single faulty fixture can interrupt communication downstream.
Test by:
- Removing fixtures one at a time
- Rechecking signal flow
If communication returns after removing a fixture, that device may be causing the problem.
Step 13: Verify Universe Assignments
Large productions often use multiple DMX universes.
Check:
- Universe configuration
- Console settings
- Fixture assignments
A fixture assigned to the wrong universe will not respond.
Step 14: Use a DMX Tester
Professional technicians often use DMX testing tools.
These devices help verify:
- Signal presence
- Addressing
- Data transmission
- Cable integrity
DMX testers significantly reduce troubleshooting time.
Step 15: Check Wireless DMX Systems
Wireless DMX introduces additional variables.
Verify:
- Transmitter operation
- Receiver pairing
- Signal strength
- Frequency interference
Wireless systems should be tested before every event.
Common DMX Problems and Quick Fixes
| Problem | Likely Cause | Solution |
|---|---|---|
| Fixture not responding | Wrong address | Verify DMX address |
| Random flickering | Missing terminator | Install DMX terminator |
| Entire chain offline | Damaged cable | Replace cable |
| Some fixtures work | Faulty fixture | Isolate fixture |
| Delayed response | Signal interference | Improve cable routing |
| Fixtures behave unpredictably | Incorrect DMX mode | Match console settings |
Preventing Future DMX Problems
Preventive maintenance is the best defense.
Inspect Cables Regularly
Replace damaged cables immediately.
Label Addresses Clearly
Proper documentation prevents addressing mistakes.
Use Quality Connectors
Professional-grade connectors improve reliability.
Keep Spare Cables Available
Quick replacements reduce downtime.
Test Before Every Event
Full system checks help identify issues before productions begin.
Frequently Asked Questions
Why are my DMX lights flickering?
Flickering is commonly caused by damaged cables, missing terminators, interference, or poor signal quality.
Why is my moving head light not responding?
Incorrect addressing, DMX mode mismatches, or cable issues are the most common causes.
Do I always need a DMX terminator?
While some small systems may function without one, terminators are strongly recommended for reliable communication.
Can one faulty fixture affect other fixtures?
Yes. A damaged fixture can interrupt signal flow throughout the chain.
Are wireless DMX systems reliable?
Yes, when properly configured and tested, although they require additional troubleshooting considerations.
Conclusion
Most DMX signal problems can be resolved through a structured troubleshooting process. By checking addressing, cables, connectors, termination, fixture modes, and signal routing, technicians can quickly identify the source of communication failures.
Whether you’re operating a church stage, theater, concert venue, television studio, or event production system, understanding DMX troubleshooting techniques will help ensure reliable performance and minimize downtime during critical productions.
