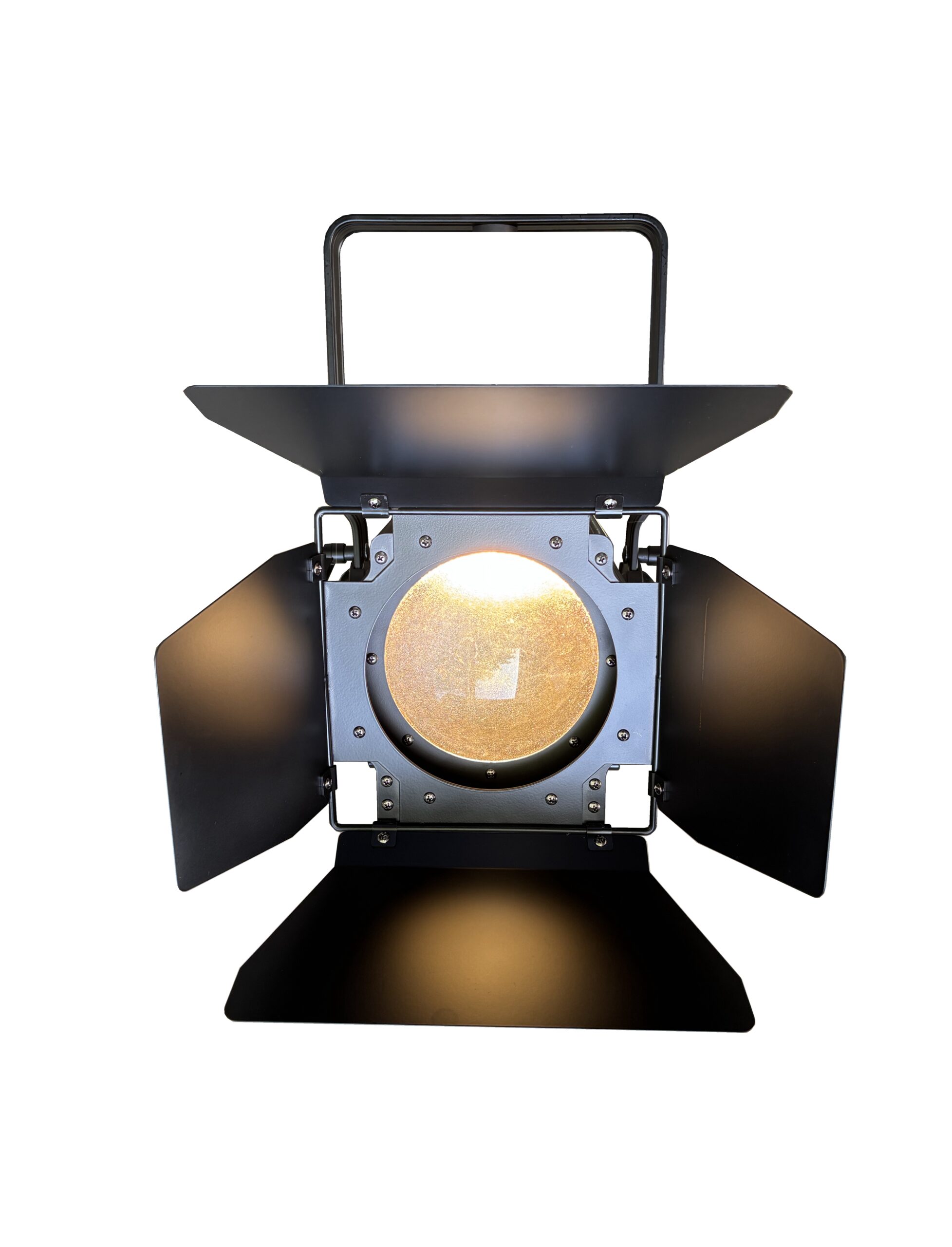

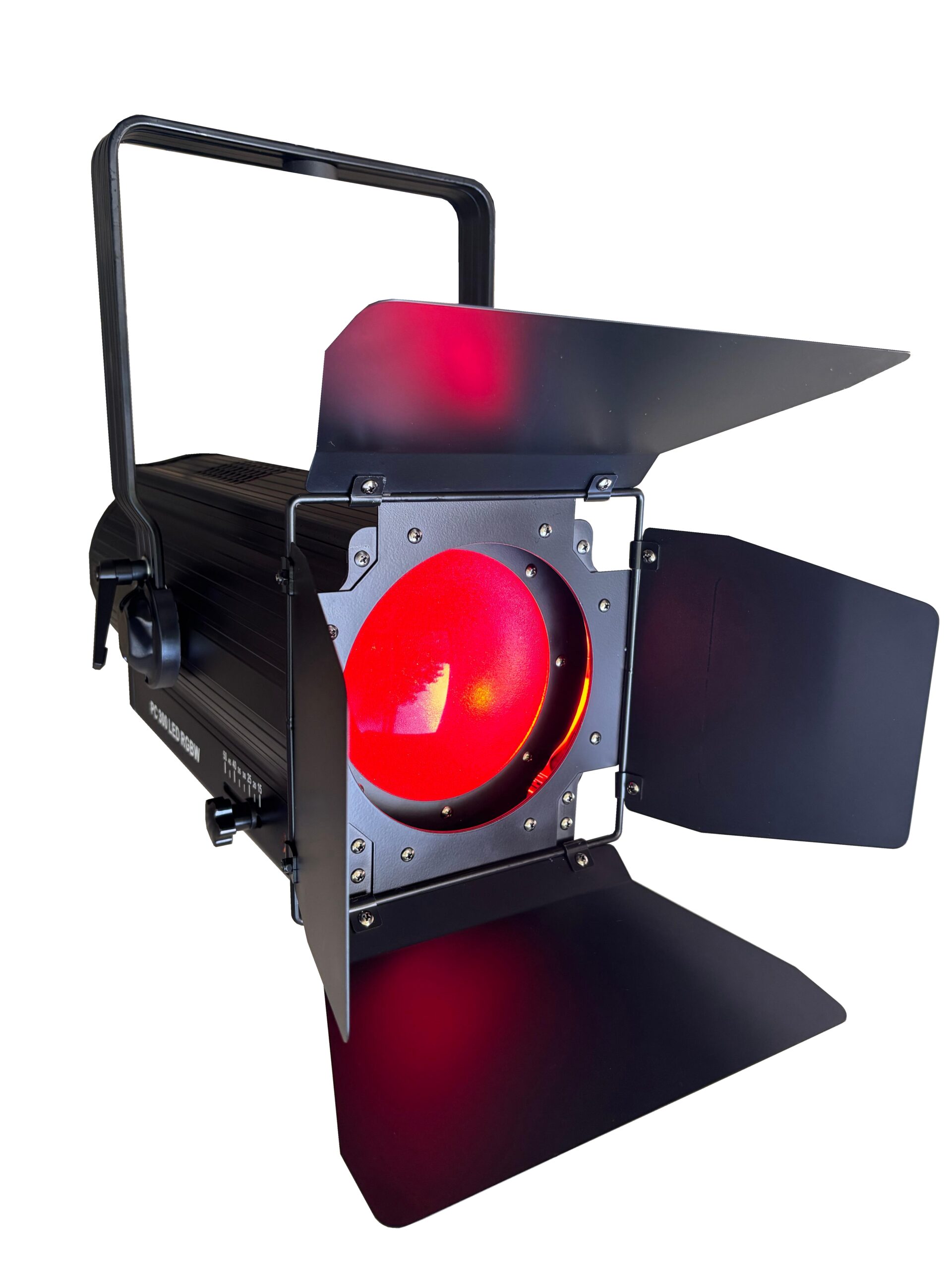

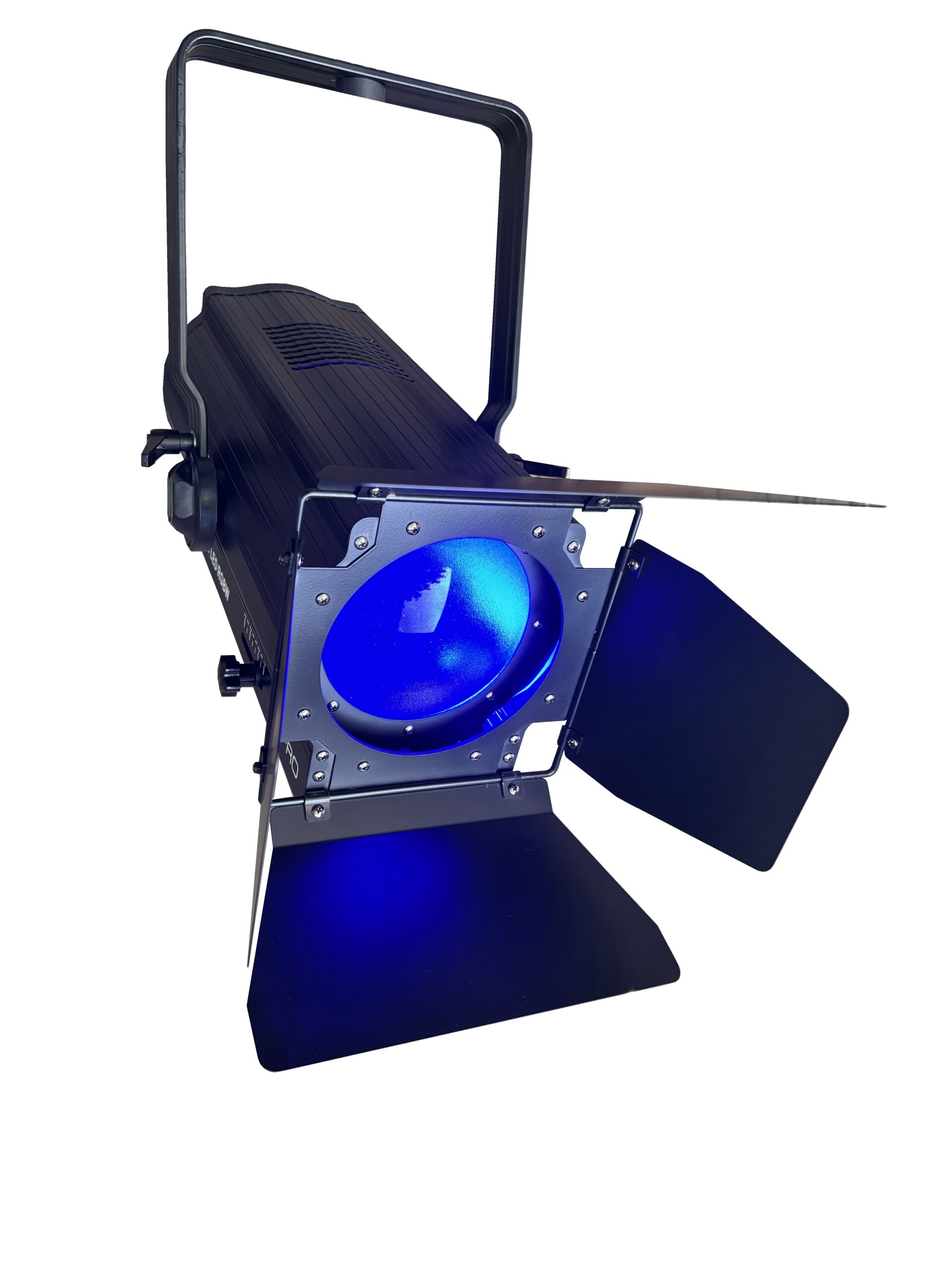

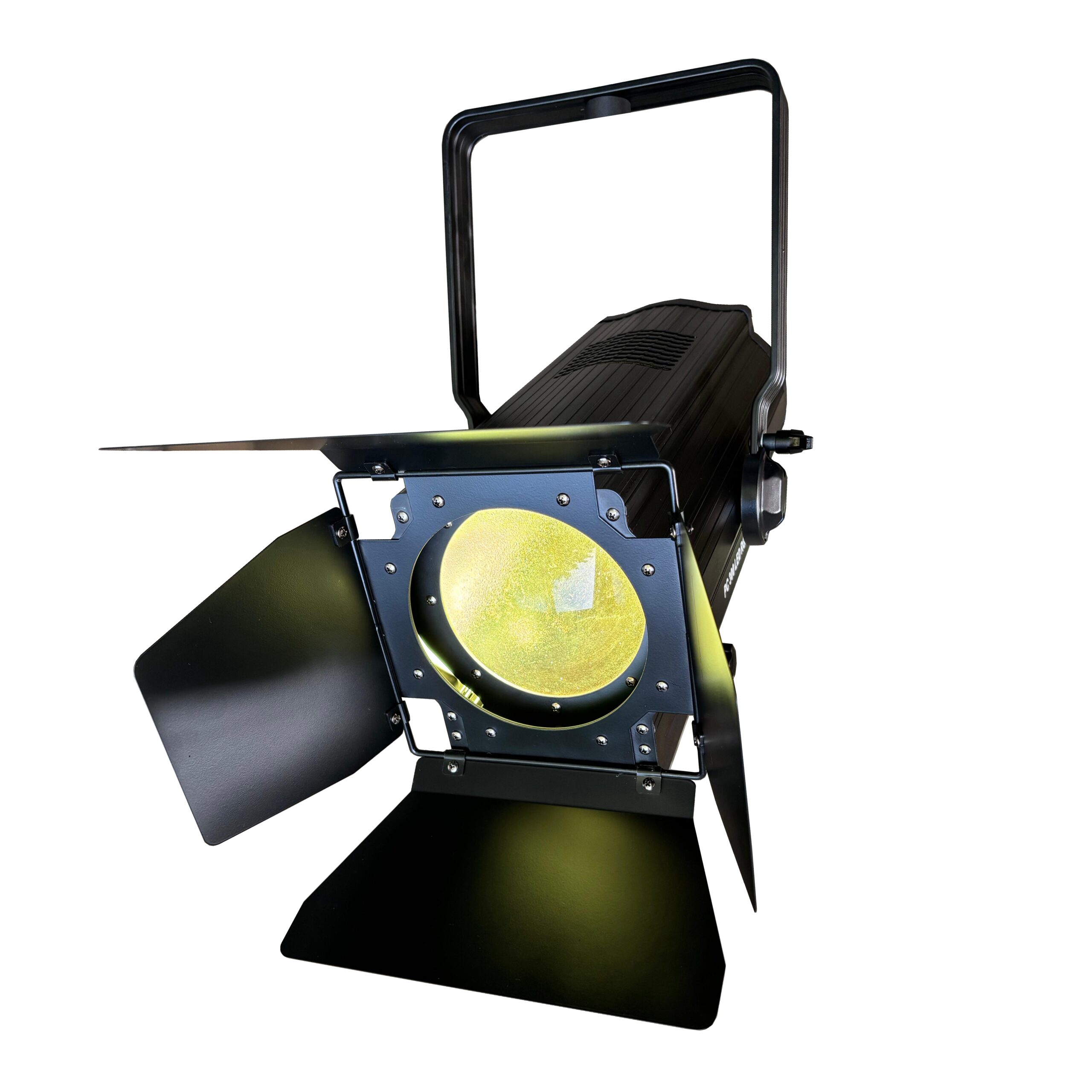

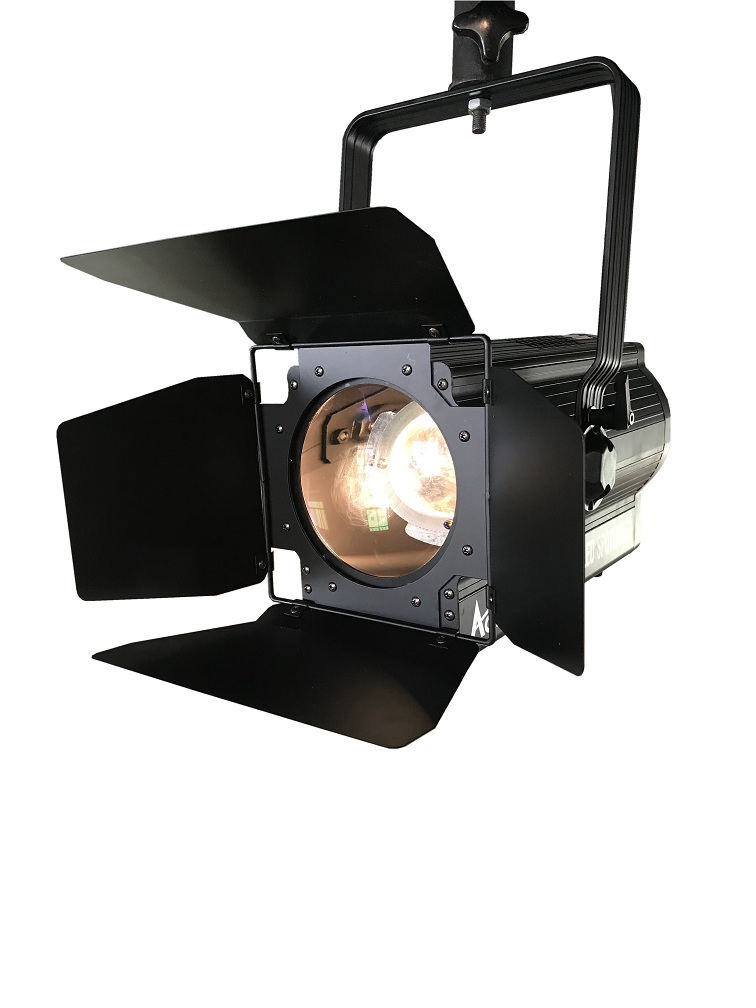

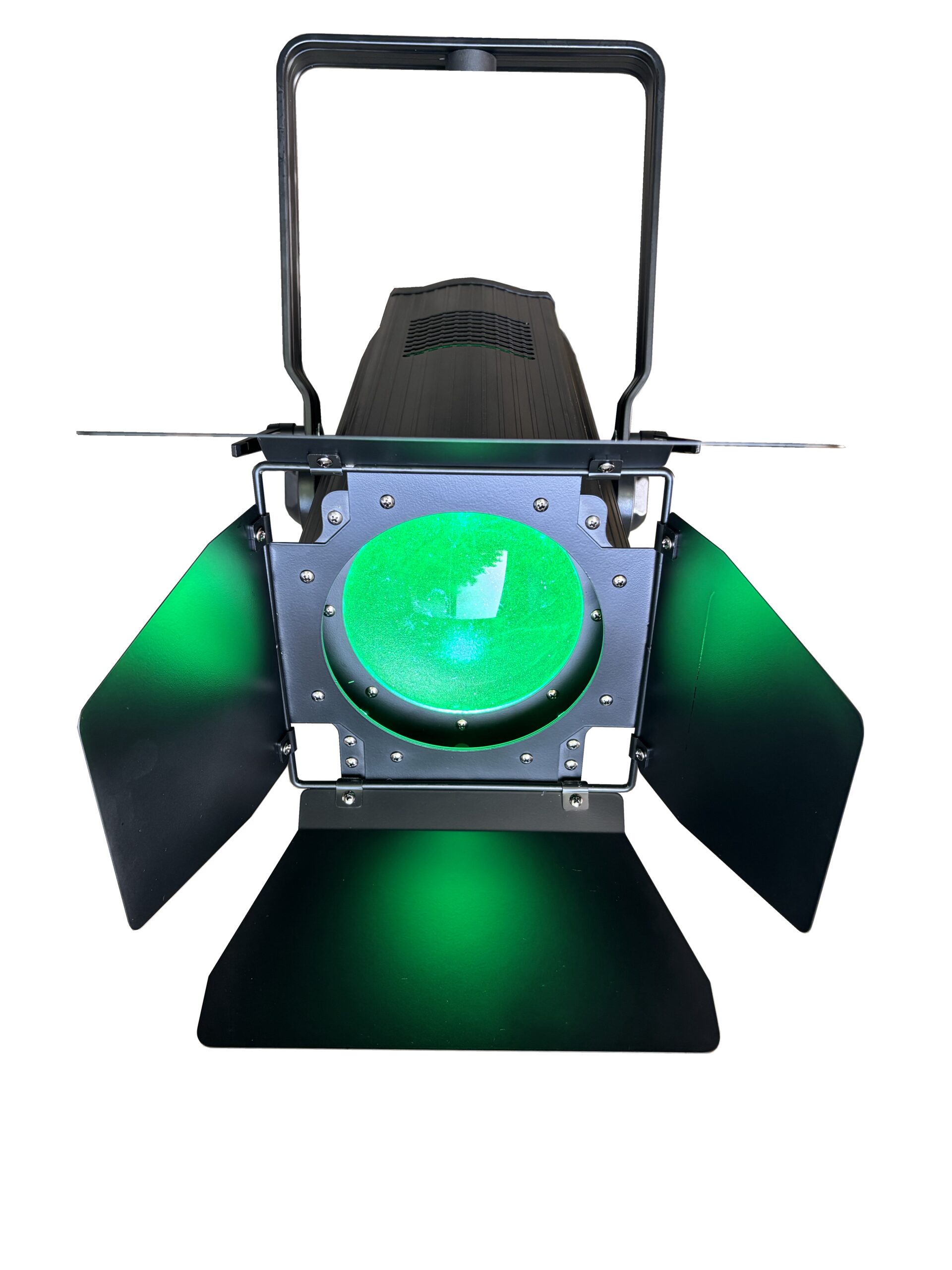

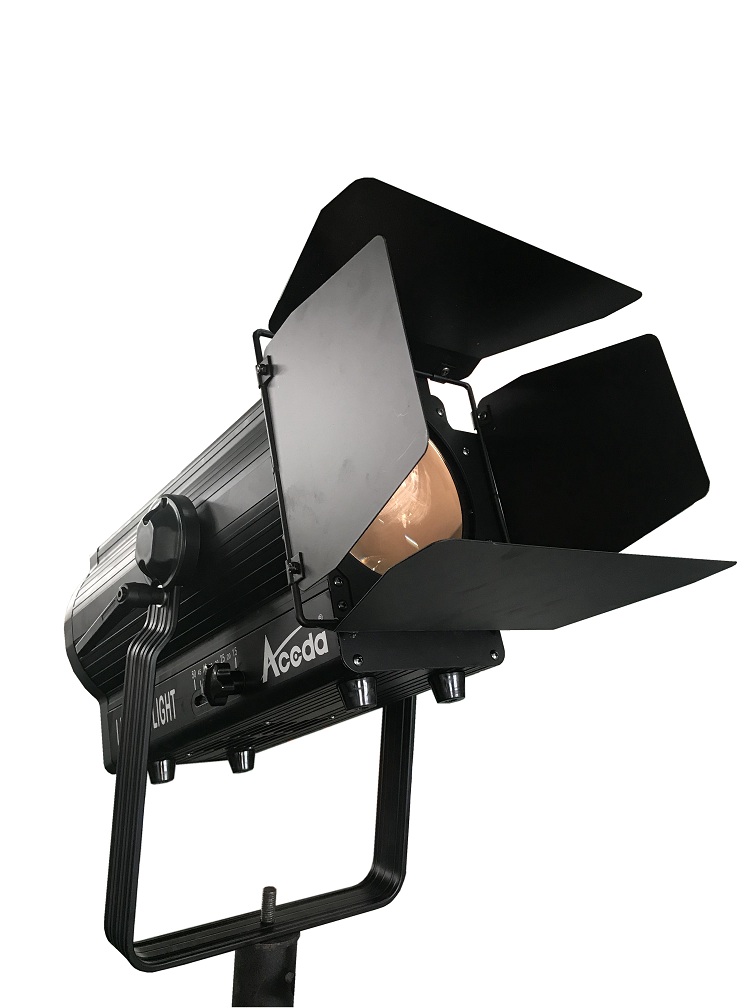

PC Lens Spotlight

1. Power Supply: AC100-240V, 50/60Hz;
2. Light Source: 200/300/400/500/600W COB single/bi-color LED; RGBW/RGBWA 4-color/5-color LED;
3. Total Power Consumption: 230/330/430W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra≥95, CRI≥95, TLCI≥95;
6. Beam Angle: 15-60° manual/motorized zoom;
7. Color Temperature: 3200K/5600K single or bi-color options; color mixing range 2700K-10000K;
8. Control Channel Modes: 1, 3, 5, 7, or 11 channels selectable;
9. Control Signal: DMX512/RDM protocols;
10. Dimming Precision & Method: 8-bit/16-bit/32-bit selectable; 0-100% smooth linear dimming; 3 dimming curves selectable;
11. Dimming Refresh Rate: >8KHz (selectable 16K/24K/32K); high-frequency control system ensures flicker-free and jitter-free light output;
12. Drive Method: Constant current drive;
13. Control Panel Display: LCD screen;
14. Luminous efficacy: 110 lm/W;
15. Strobe rate: 1–30 flashes/second;
16. Optical lens: 1) Fresnel or plano-convex PC lens made of high-transmittance borosilicate glass material, ensuring uniform light output and high efficiency; 2) Lens diameter: 175 mm (Fresnel) / 150 mm (plano-convex PC);
17. Material and structure: Aluminum alloy profile combined with copper heat pipes and finned heat sinks, facilitating rapid heat transfer from the LED chips;
18. Heat dissipation method: Copper heat pipes and fins for high-speed heat dissipation, supplemented by a silent fan;
19. Noise level: Silent fan used; noise level does not exceed 30 dB;
20. Protection rating: IP20;
21. Operating temperature monitoring: -20°C to 35°C; includes built-in thermal protection sensor for overheat protection;
22. Mounting method: Choice of manual suspension or digital electric yoke;
23. Fixture weight: 10.5 kg;
24. Fixture dimensions: 460 × 295 × 290 mm;
25. Impact-resistant design: Molded plastic components (front bezel, rear cover, and yoke arm cover) protect the fixture from collision damage; available in three colors—Diamond Black, Azure Blue, and Dawn Orange—exuding a dignified, luxurious, and premium aesthetic;
