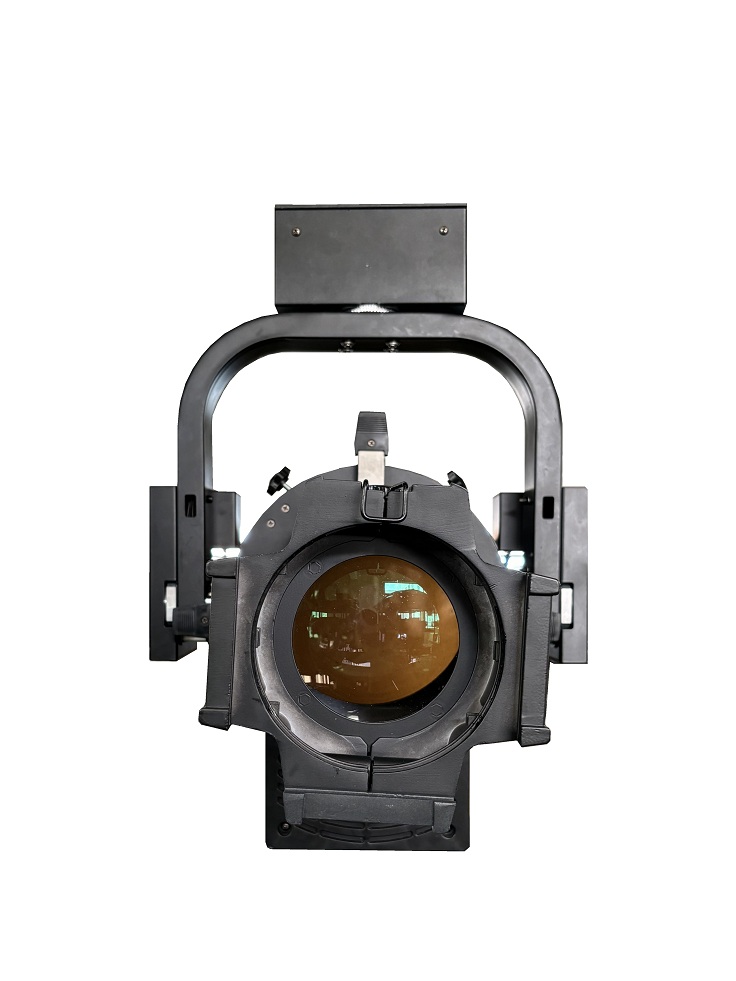

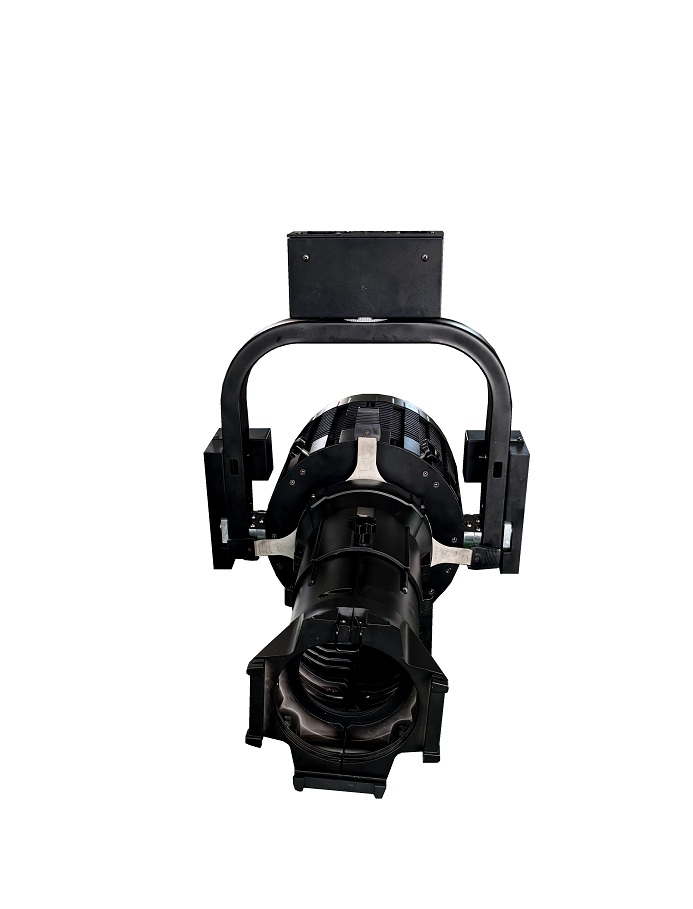

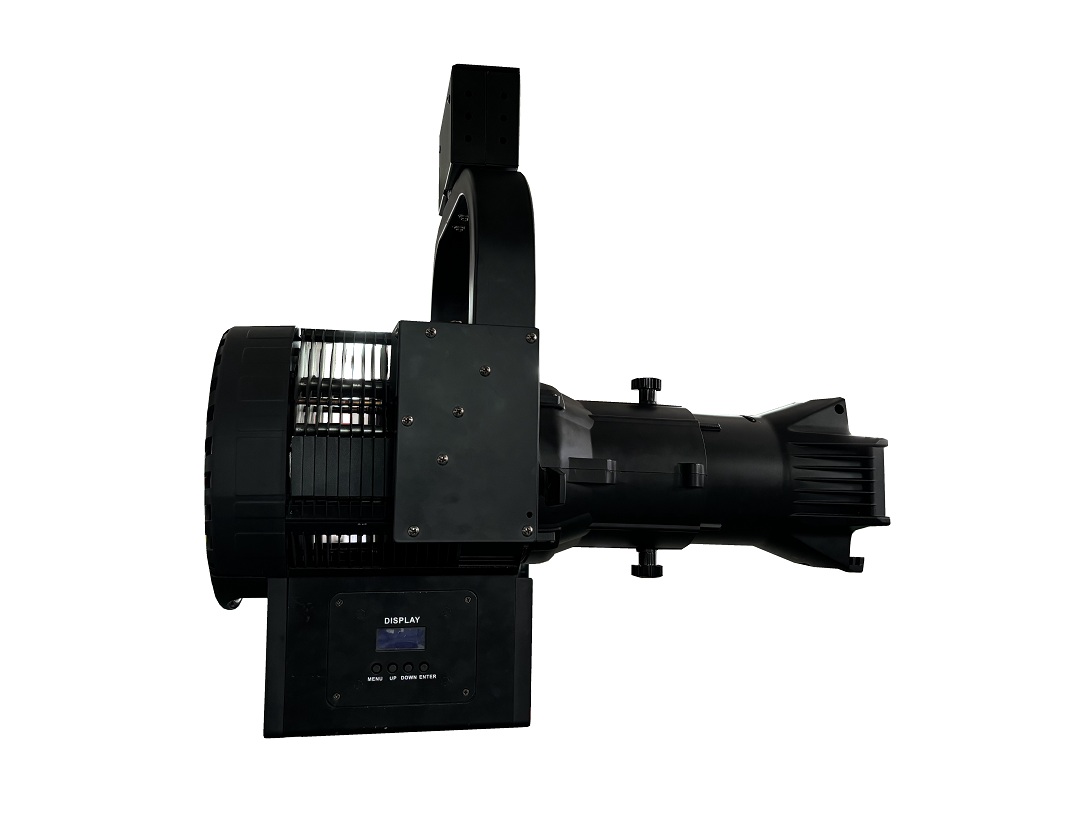

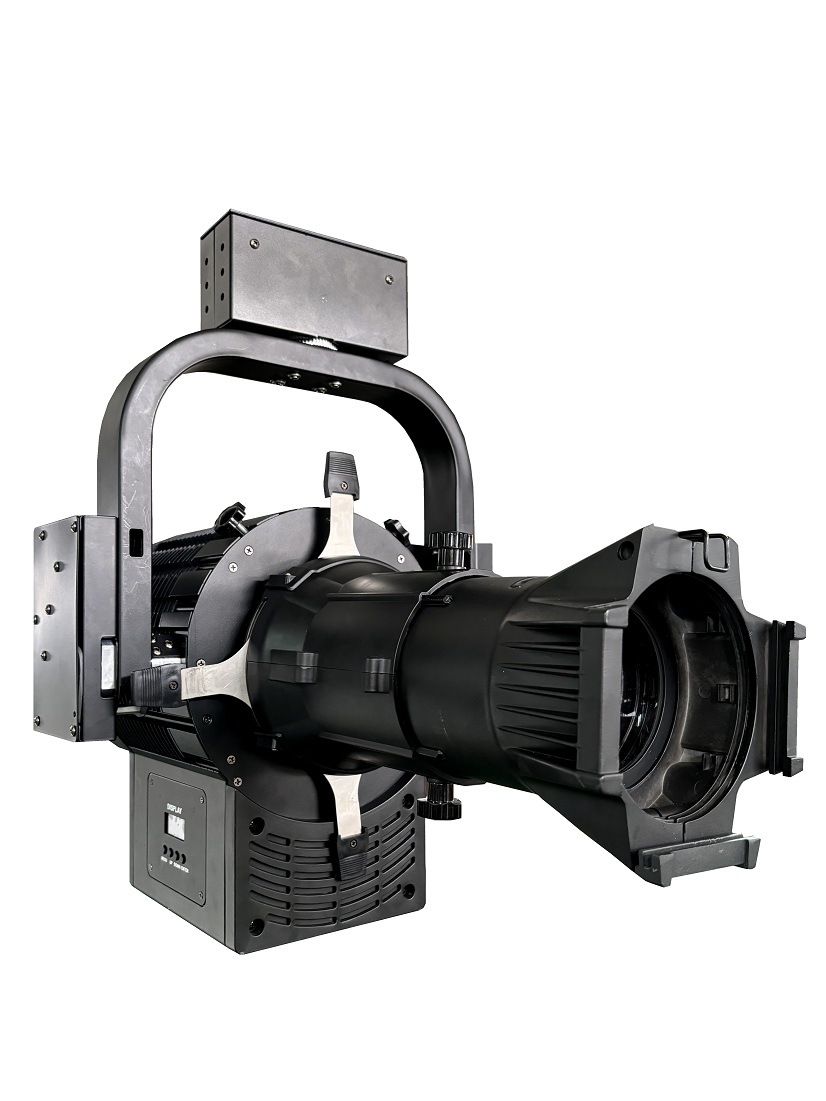

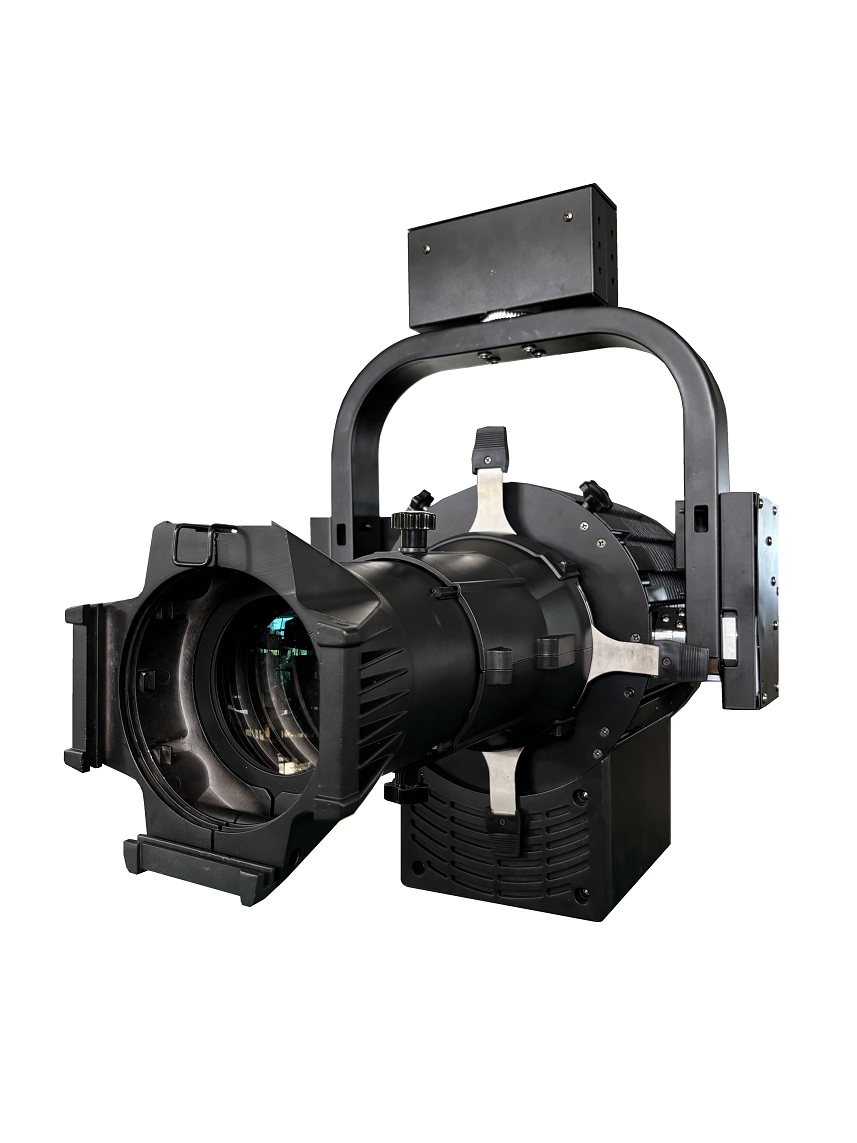

Motorized Digital Imaging Spotlight (19°)

1. Power Supply: AC 100-240V, 50/60Hz;
2. Light Source: 200/300/400/500W COB LED (Single-color, Bi-color, or RGBLA 5-color options);
3. Total Power Consumption: 230/330/430/530W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index (CRI) & TLCI: Ra ≥95, R9 >95; TLCI ≥95;
6. Motorized Yoke Parameters: Pan range 320°, Tilt range 0-90°; Pan speed 5cm/sec, Tilt speed 0.8cm/sec;
7. Correlated Color Temperature (CCT): Single/Bi-color: 3200K/5600K; Color version: Adjustable 2700K-10000K;
8. Control Channel Modes: Selectable 5, 7, 9, or 11 channels;
9. Control Signal: DMX512/RDM protocols;
10. Dimming Precision & Method: 8/16-bit (30,000/65,000 levels), 0-100% smooth linear dimming, 4 selectable dimming curves;
11. Dimming Refresh Rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control system ensures flicker-free and jitter-free light output;
12. Color management control system: 1) Precise DUV-line color correction system ensuring accurate color mixing on the first attempt; 2) Color Rendering Index (≥95), Color Saturation Index (>95), and Television Lighting Consistency Index (≥95) remain constant during color temperature shifts; 3) Built-in selection of 16 standard color swatches; 4) Built-in library of 15 effects (including storm, police car, candlelight, slow/fast disco, monitor simulation, multi-flash, and color filter effects) and independently adjustable, stepless color mixing with smooth fades and instant transitions.
13. Beam angle: 19°;
14. Drive method: Constant current drive;
15. Control panel display: LCD screen;
16. Luminous efficacy: 110 lm/W;
17. Strobe: 1–30 flashes/second;
18. Optical lens: Uses a combination of a light-gathering lens and a focusing/imaging lens group; provides uniform light distribution and high efficiency; capable of producing both soft and hard-edged beams; sharp, clean-cut imaging with no fringing;
19. Materials and structure: Integrated design utilizing aluminum alloy profiles, copper heat pipes, and cooling fins for rapid heat dissipation, efficiently transferring heat away from the LED chips;
20. Cooling method: Patented integrated cooling system using copper heat pipes and fins (fanless design);
21. Noise level: Silent fan cooling (<30 dB) or fanless cooling (zero noise);
22. Protection rating: IP20;
23. Operating temperature monitoring: -20°C to 35°C; includes built-in thermal protection sensors;
24. Fixture weight: 11.5/13.5/14.5 kg;
25. Impact-resistant design: Molded plastic covers for the front, rear, and yoke arm protect against impact damage; available in three colors—Diamond Black, Lake Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
