1. Power Supply: AC 100-240V, 50/60Hz;
2. Light Source: 56 imported 12W LEDs (dual-color temperature: 2700K/5600K);
3. Rated Power: 430W;
4. Light Source Lifespan: ≥ 50,000 hours;
5. Beam Angle: 45° x 60°;
6. Optics: 56 reflector cups + soft-light optical sheet;
7. Soft-Light Optical Sheet: High-efficiency milky-white prismatic light guide plate (mitigates glare);
8. Color Temperature: 2700K–5600K;
9. Control Channel Modes: Selectable 5CH or 6CH;
10. Control Signals: DMX512/RDM protocols, wireless Wi-Fi control via smartphone;
11. Dimming Precision & Method: Selectable 30,000-step or 55,000-step resolution; 0–100% smooth linear dimming; 3 selectable dimming curves;
12. Dimming Refresh Rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control system ensures… Flicker-free and jitter-free light output;
13. Drive method: Constant current drive;
14. Control panel display: LCD screen;
15. Strobe rate: 1–30 flashes/second;
16. Material and structure: Features a patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate, ensuring efficient heat dissipation from the LED chips;
17. Heat dissipation method: Integrated aluminum alloy housing combined with a silent cooling fan;
18. Noise level: Silent fan operation; noise level does not exceed 30 dB;
19. Protection rating: IP20;
20. Operating temperature monitoring: -20°C to 35°C; includes a built-in sensor for over-temperature protection;

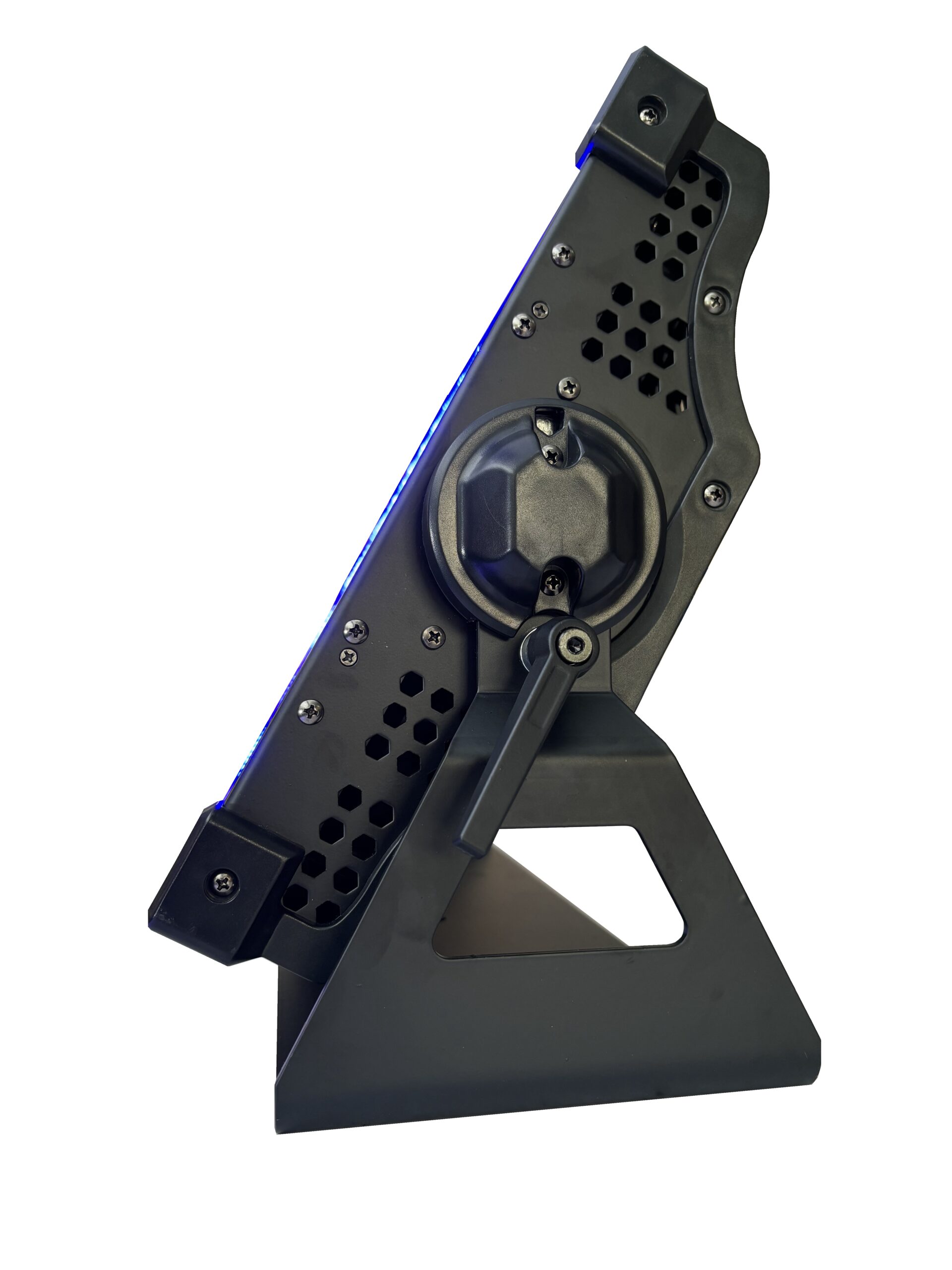

21. Mounting method: Choice of manual suspension or digital electric yoke;
22. Fixture weight: 8.8 kg / 11.8 kg;
23. Fixture dimensions: 550 x 320 x 315 mm;
24. Impact-resistant design: Molded plastic rear cover and yoke arm cover to prevent collision damage; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
