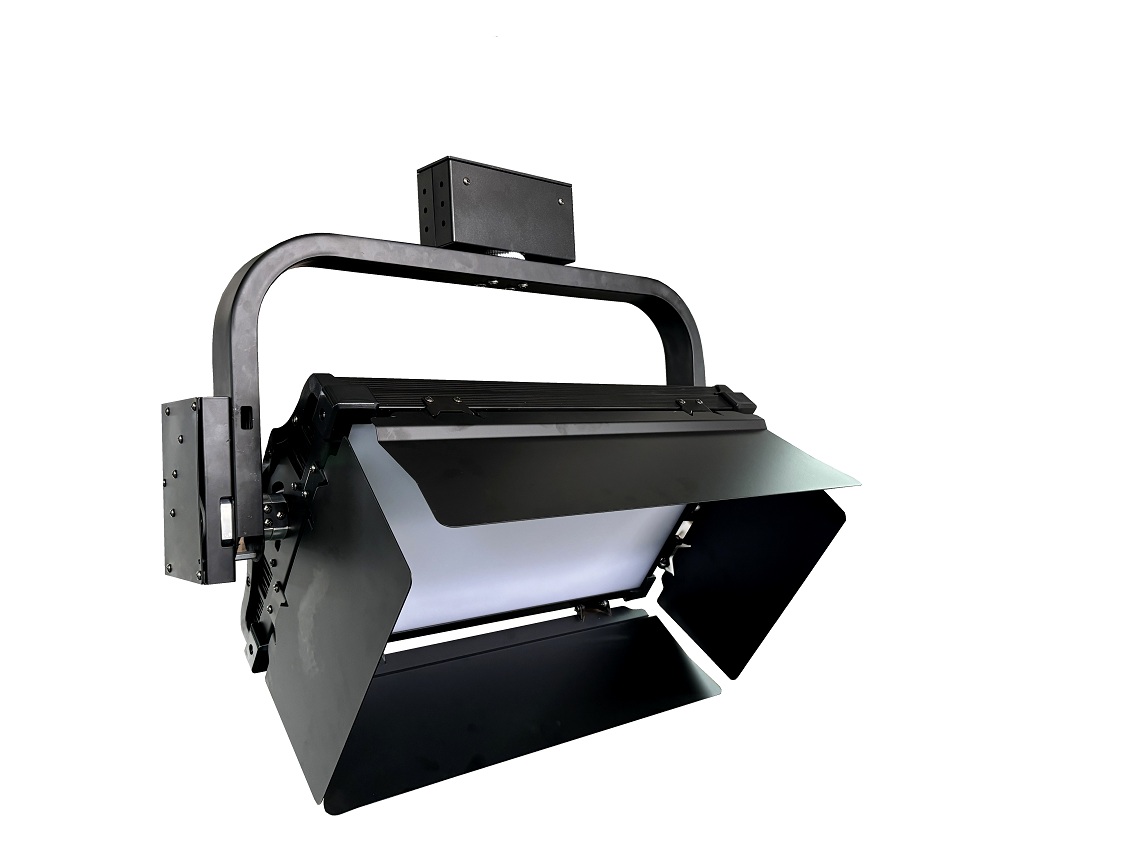

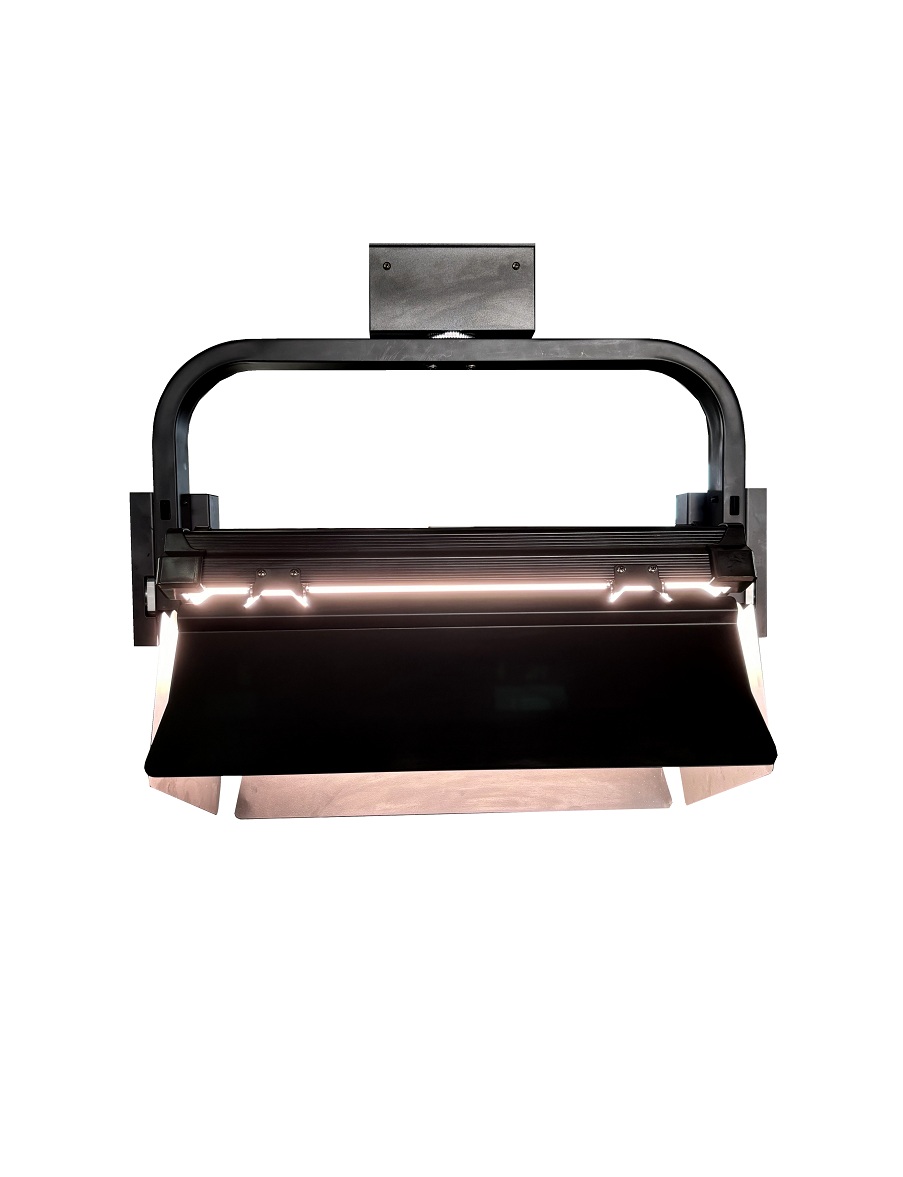

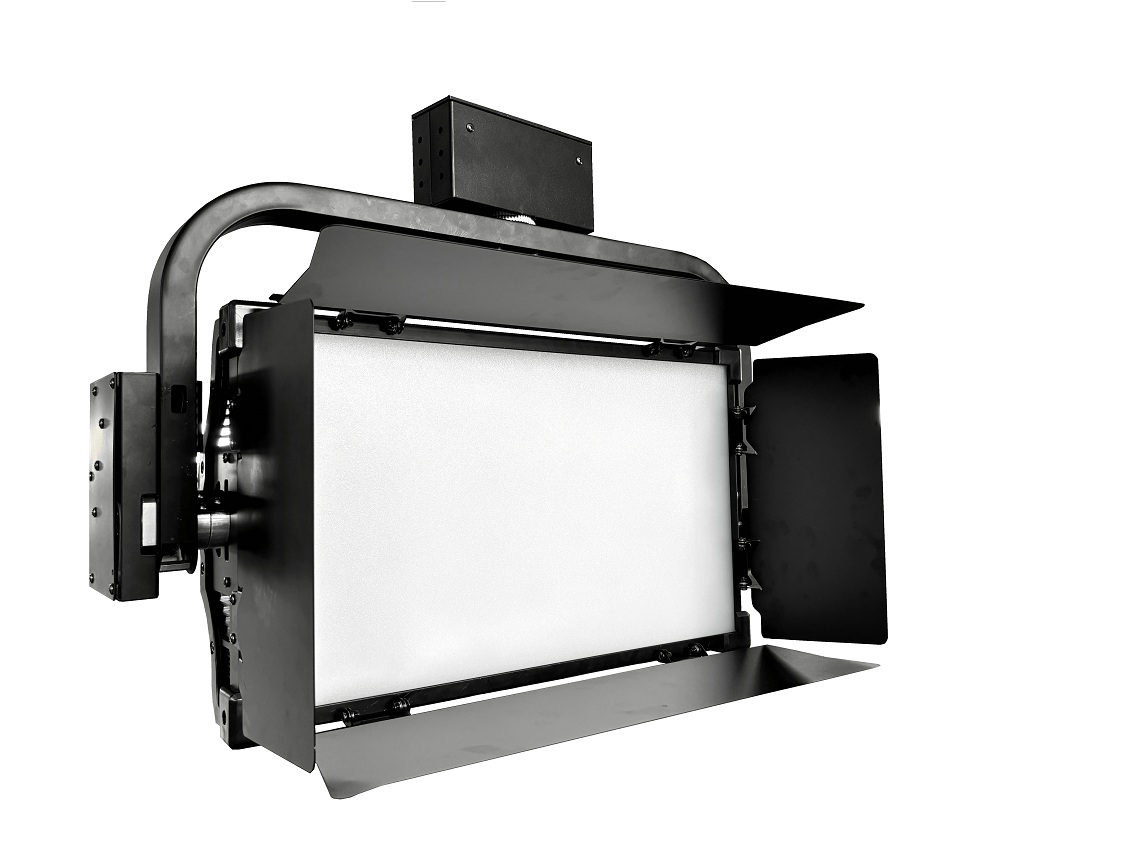

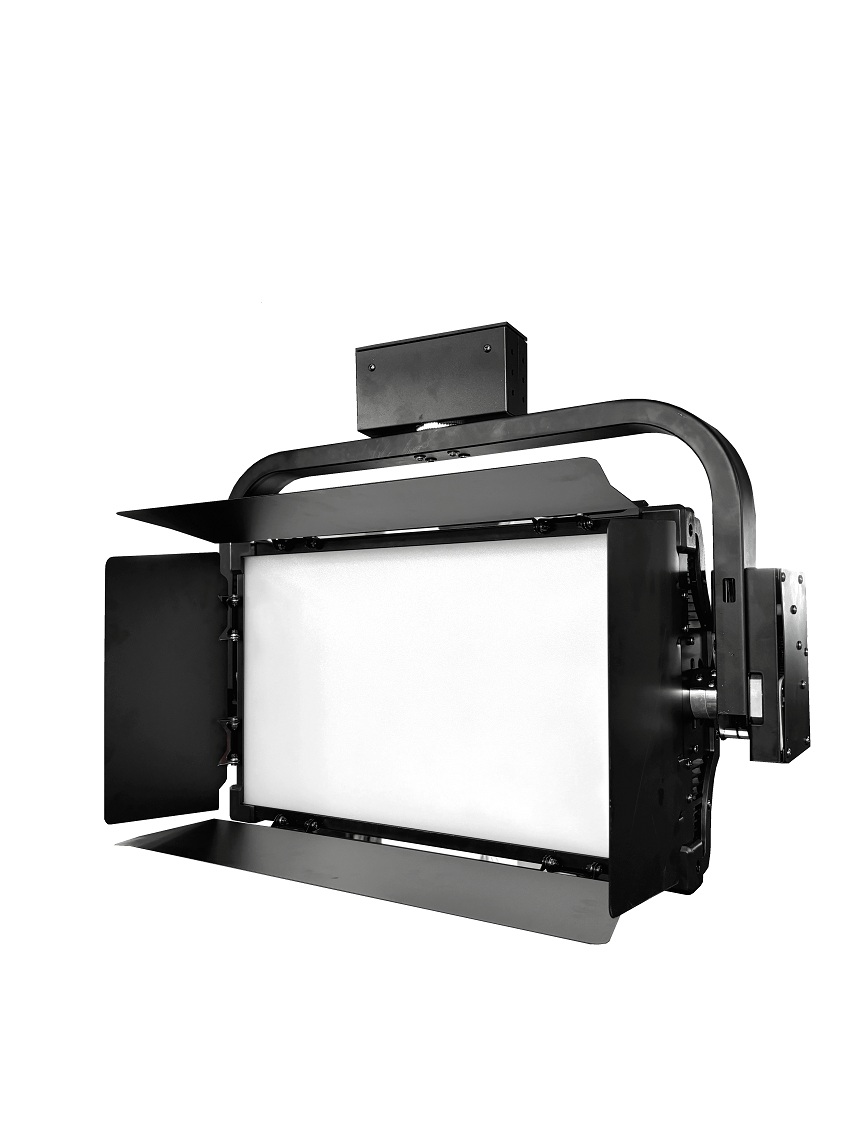

Electric digital flat-panel light

1. ​​Power Supply: AC 100–240V, 50/60Hz;
2. Light Source: 460/576/930 units (0.5W) or 2160 units (0.2W) of single/dual-color high-CRI SMD LEDs; RGBWA (378/504 × 0.5W); or 420 × 2 × 1W + 392 × 0.5W configurations;
3. Total Power Consumption: 170/230/330/380W;
4. Light Source Lifespan: ≥ 50,000 hours;
5. Color Rendering Index (CRI) & Color Saturation Index: Ra ≥ 95, CRI ≥ 95, TLCI ≥ 95;
6. Beam angle: 120°;
7. Color temperature: Options for 3200K, 5600K (single), or dual-color; adjustable range 2700K–10000K; CRI and color saturation index remain constant during color temperature adjustment;
8. Yoke parameters: Adjustment range—pan 320°, tilt 0–90°; speed—pan 5 cm/s, tilt 0.8 cm/s;
9. Control channel modes: Dual-color options (5, 7, 9, or 11 channels);
10. Control signal: DMX512/RDM protocol control;
11. Dimming precision and method: Options for 30,000 or 65,000 levels; smooth linear dimming (0–100%); 3 selectable dimming curves;
12. Dimming refresh rate: Above 16 kHz (selectable 16 kHz/24 kHz/32 kHz); high-frequency control system ensures flicker-free and jitter-free light output;
13. Drive method: Constant current drive;

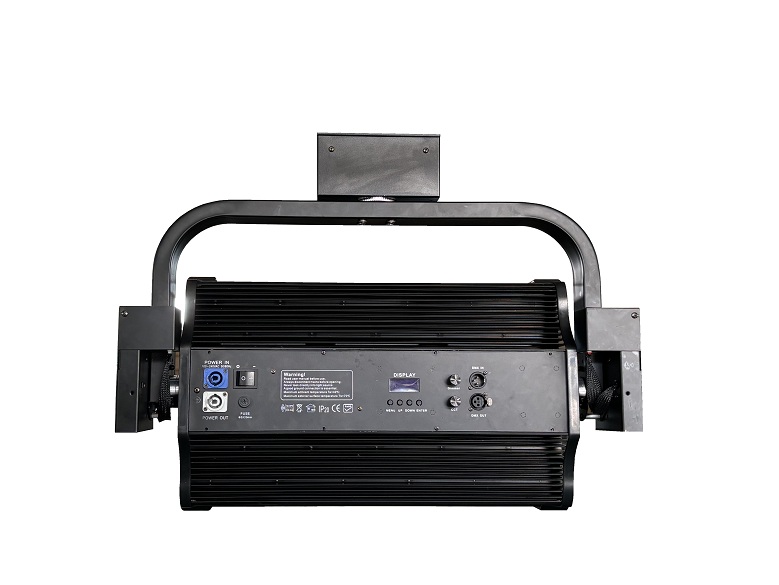

14. Control panel display: LCD screen; interface features manual dual-knob controls;
15. Strobe: 1–30 flashes/second. /sec;
16. Optical distribution: 1) Uses an imported milky-white PC light-guide plate; ensures uniform light distribution without revealing individual LED dots, offers high luminous efficacy, and provides anti-glare performance; 2) Features a secondary light-correcting honeycomb focusing grid to eliminate glare;
17. Materials and structure: Utilizes a patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate, efficiently conducting heat away from the LED chips;
18. Heat dissipation: Employs a fanless, integrated aluminum alloy heat dissipation system relying on natural air convection; this technology holds a utility model patent;
19. Noise: Silent operation;
20. Protection rating: IP20;
21. Operating temperature range: -20°C to 35°C; includes a built-in sensor for over-temperature protection;
22. Fixture weight: 10.5/14.5/15.5 kg;
23. Fixture dimensions: 570*650*155 / 650*550*155 / 735*580*138 mm;
24. Impact-resistant design: Features molded plastic decorative frames and suspension arm covers to prevent impact damage; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige
