CONTROL384

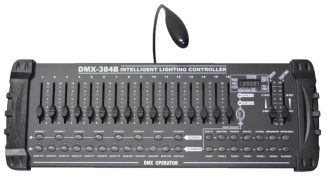

The DMX-384B is a standard DMX512/1990 signal controller.
It has 24 Scanners, divided into A and B pages, with each Scanner containing 16 channels.
It can programm 30 Banks, each containing 8 Scenes
It can programm 6 Chases, each with 240 steps (i.e., 30 Banks, 8 Scenes).
It has three operating modes: manual, voice-activated, and automatic.
In automatic mode, the FADE can be selected to have all FADEs or only X/Y FADEs, both with SPEED adjustment; restarting power will run the last Chase or Bank.
X and Y channels can be set in each Scanner.
Output delay function; the delay time is adjusted using the FADE TIME potentiometer.

It has a Blackout output function.
It has MIDI triggering functions for Banks, Chases, and Blackouts.
It has a built-in microphone for sound triggering.
It features a 4-digit LED display.
The first digit displays CHASES, the second digit displays SCENES,
The third and fourth digits display BANKS
The second, third, and fourth digits display the number of steps, 0-255, or TIME
The BLACKOUT function can be controlled manually or via MIDI remote control.
USB desk lamp interface.
