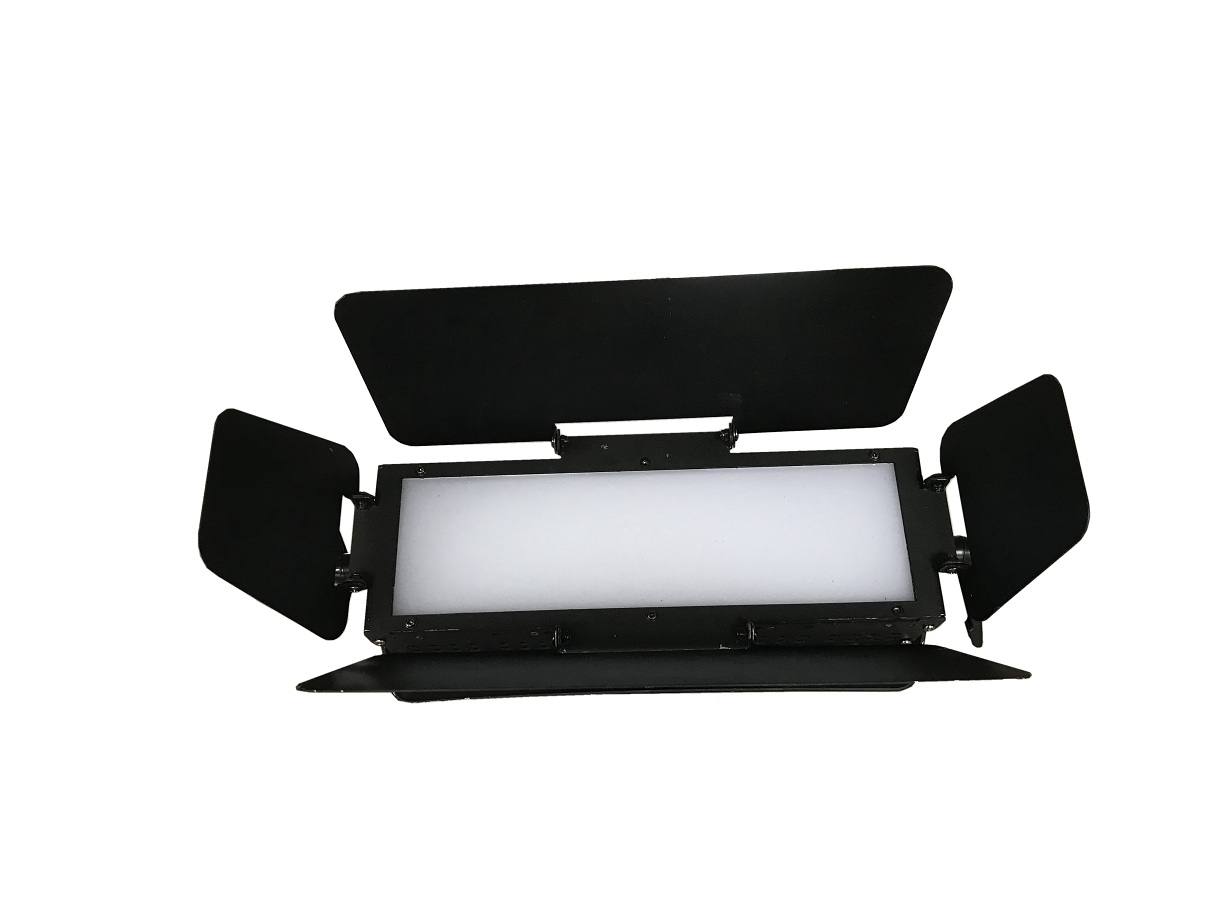

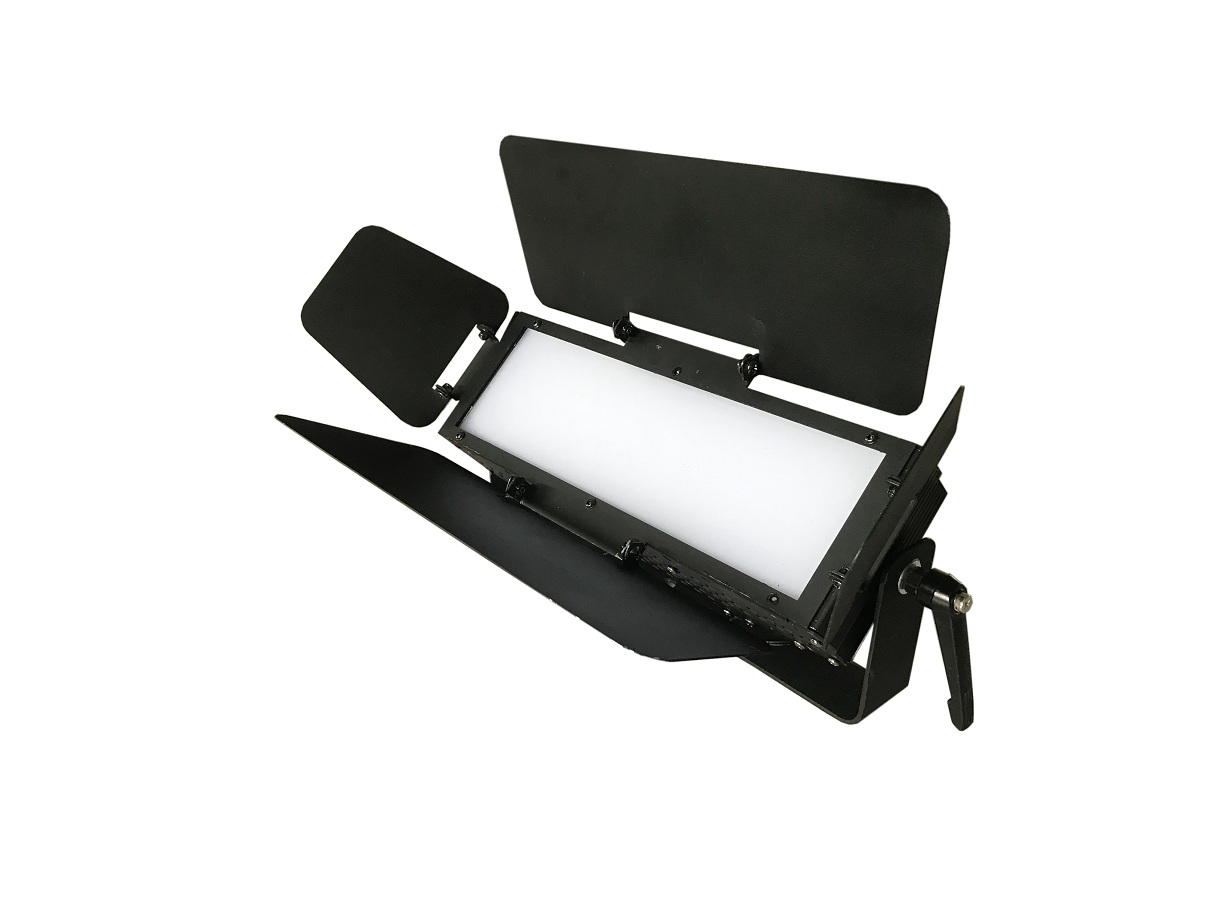

60W Flat Panel Light

1. Power Supply: AC 100–240V, 50/60Hz;
2. Light Source: 300 high-CRI SMD LED beads in total (150 beads at 3200K, 150 beads at 5600K); individual bead power ≥ 0.3W;
3. Power: LED bead power 60W; total fixture power 100W;
4. Light source lifespan: ≥ 50,000 hours;
5. Color Rendering Index (CRI) and Color Saturation Index: Ra ≥ 95, CRI ≥ 95, TLCI ≥ 95;
6. Beam angle: 120°;
7. Color temperature: Adjustable from 3200K to 5600K;
8. Illuminance: 1300 lx at 1m; 385 lx at 2m; 170 lx at 3m;
9. Control channel modes: Selectable 2, 5, or 6 channels;
10. Control signal: DMX512/RDM protocol;
11. Dimming precision and mode: Selectable 8-bit, 16-bit, or 32-bit; 0–100% smooth linear dimming; 3 selectable dimming curves;
12. Dimming refresh rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control technology ensures flicker-free and jitter-free light output;
13. Drive method: Constant current drive;
14. Control panel display: LCD screen;
15. Strobe: 1–30 flashes/second;
16. Optical system: Uses an imported milky-white PC light guide plate; hides individual LED beads for uniform light distribution, high luminous efficacy, and anti-glare performance;
17. Material and structure: Patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate, efficiently conducting heat away from the LED beads;
18. Cooling method: Fanless integrated aluminum alloy cooling system; natural heat dissipation via air convection;
19. Noise level: 0 dB;
20. Protection rating: IP20;
21. Operating temperature monitoring: -20°C to 35°C; built-in temperature sensor for overheat protection;
22. Mounting method: Manual suspension;
23. Fixture weight: 3.5 kg;
24. Fixture dimensions: 410 x 160 x 180 mm;
