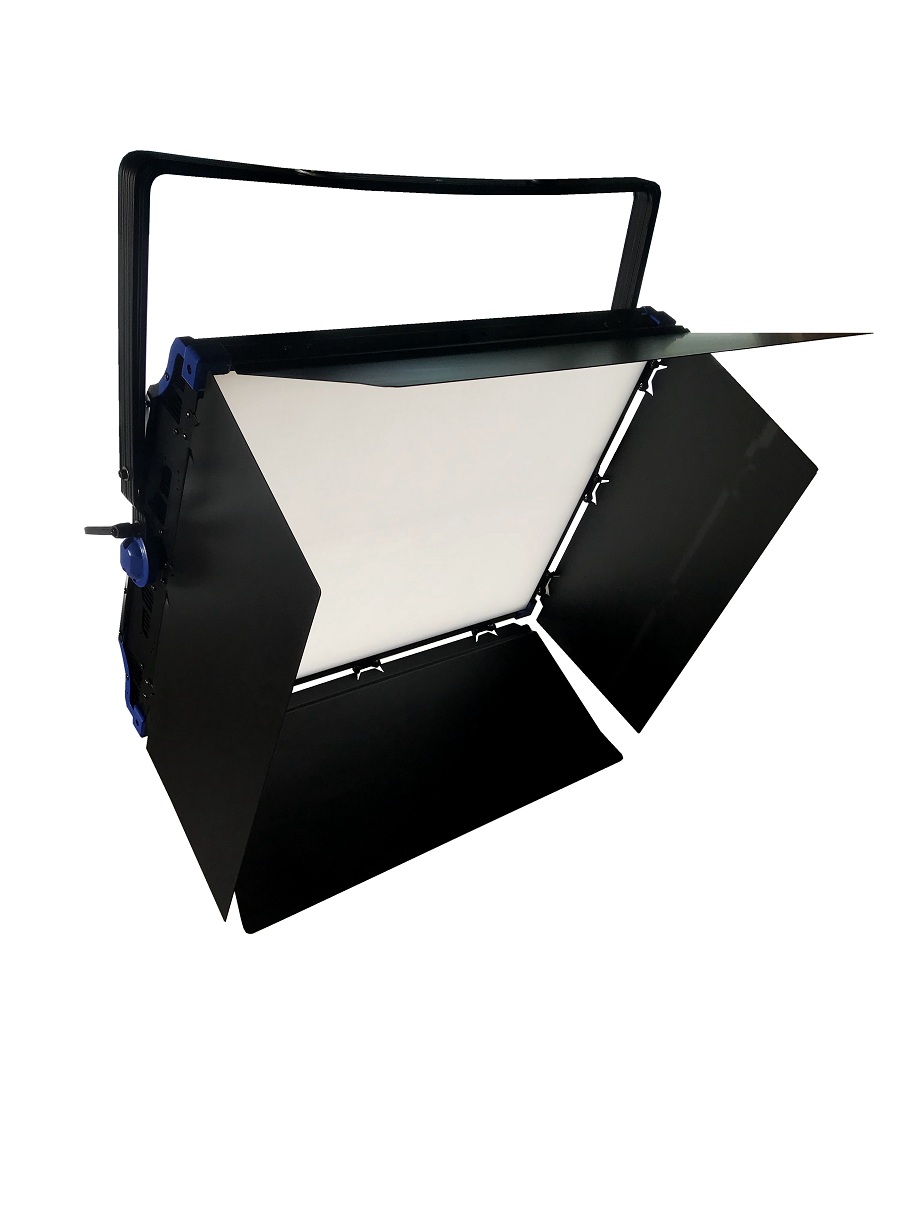

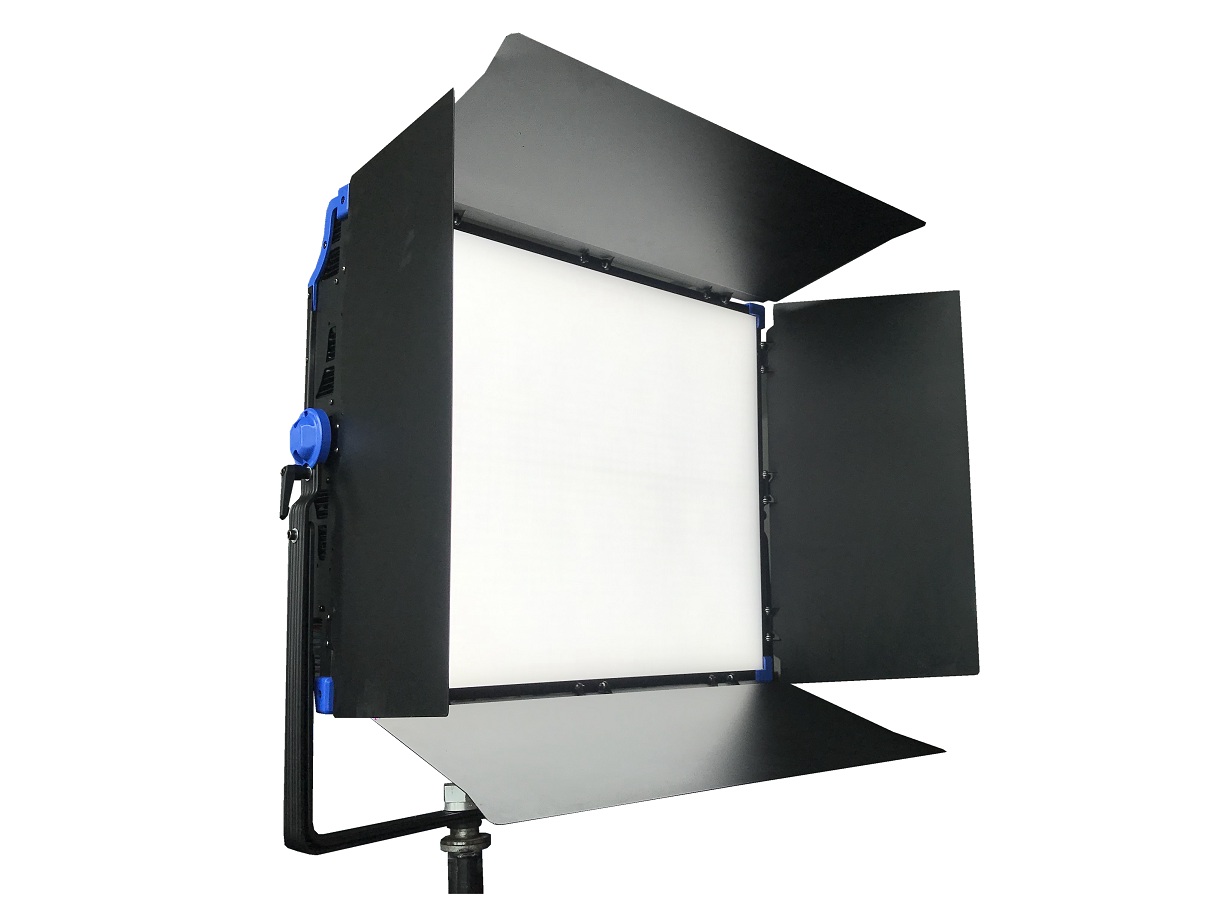

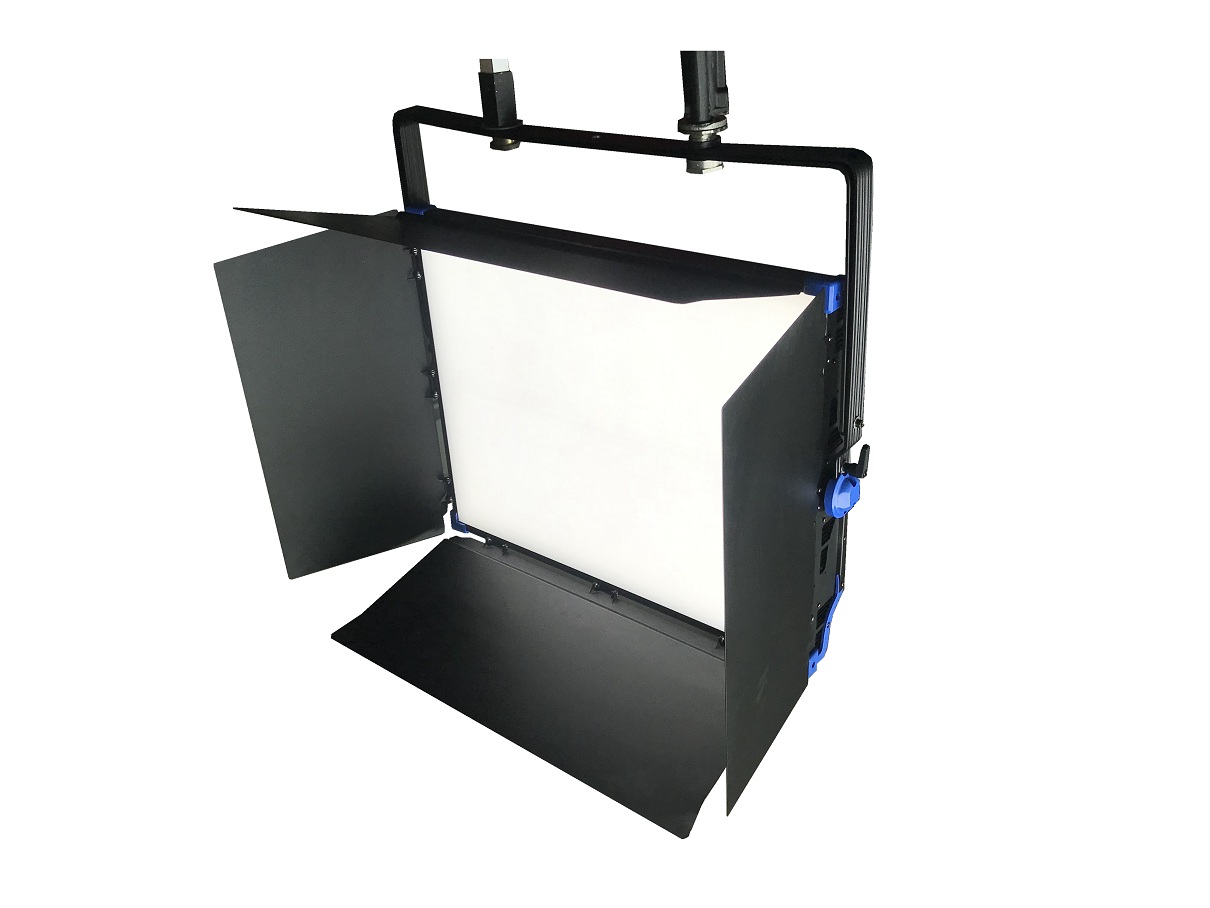

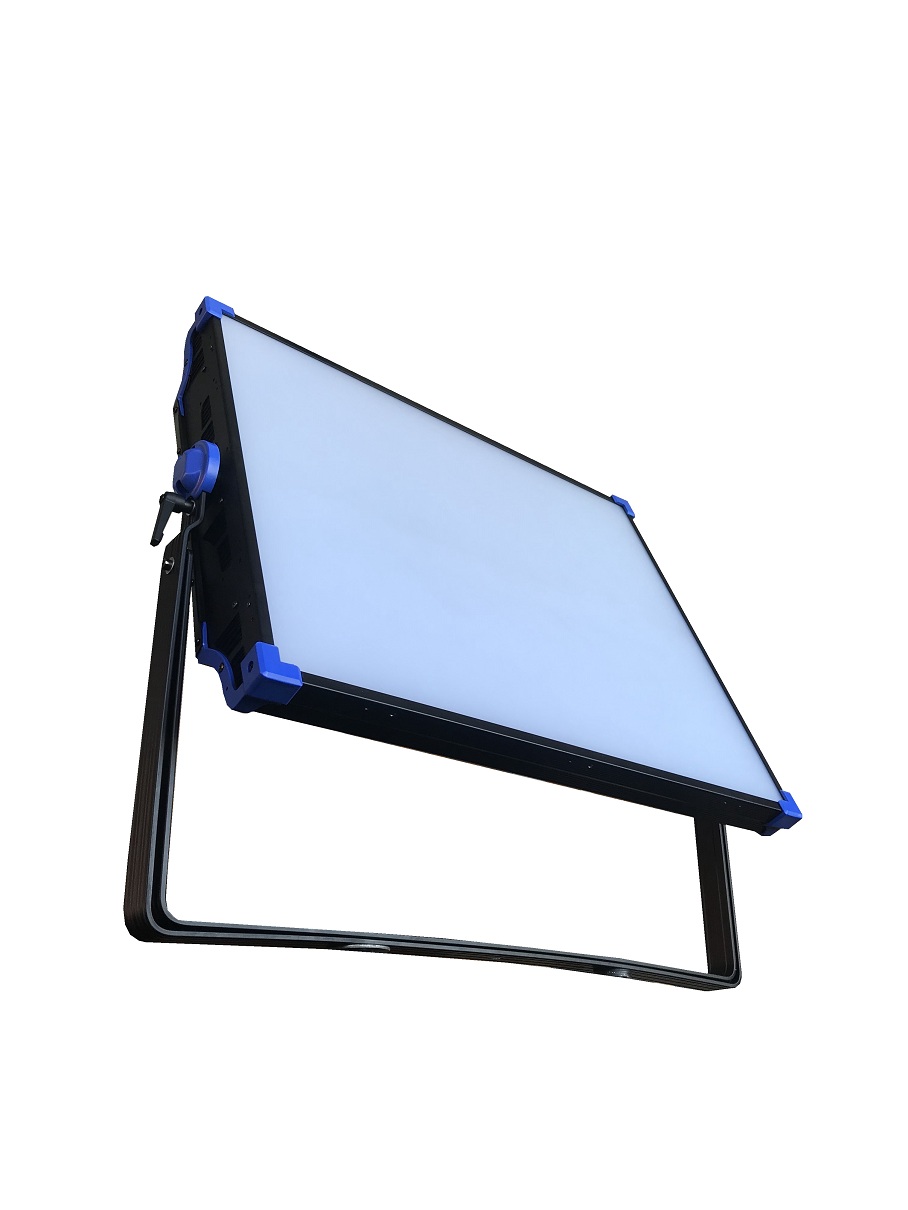

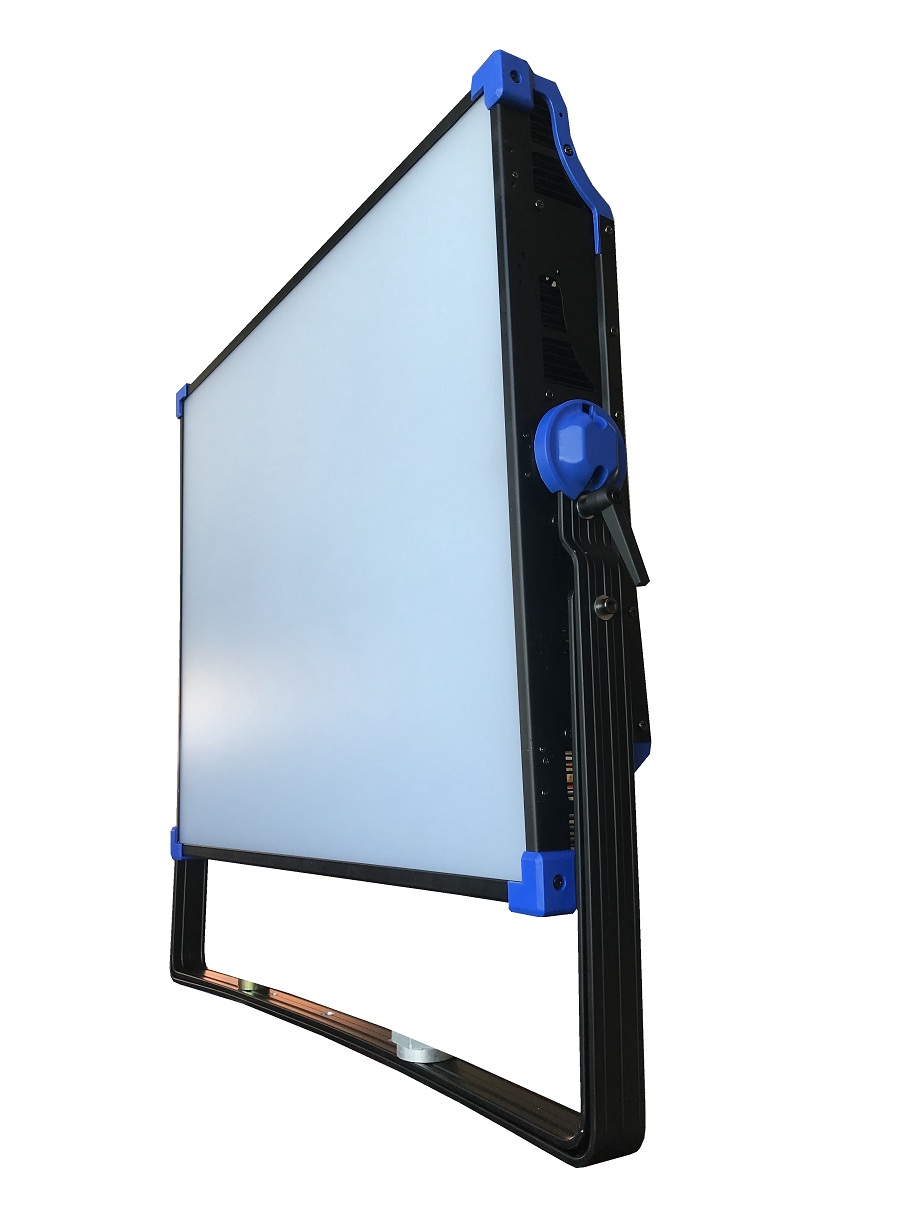

500W Flat Panel Light

1. Power Supply: AC 100–240V, 50/60Hz;
2. Light Source: At least 1,440 full-spectrum, high-CRI SMD LED beads (rated at ≥0.5W each);
3. Power: LED bead power 500W; total fixture power 550W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index (CRI): Ra ≥ 95, CRI ≥ 95, TLCI ≥ 95;
6. Beam angle: 120°;
7. Color temperature: Options for 3200K, 5600K (single), or tunable white (3200K–5600K);
8. Control channel modes: Single color temperature (1 or 3 CH); tunable white (2, 5, or 6 CH);
9. Control signal: DMX512/RDM protocol;
10. Dimming precision and method: 8-bit, 16-bit, or 32-bit options; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming refresh rate: >16 kHz (selectable 16 kHz/24 kHz/32 kHz); high-frequency control technology ensures flicker-free and jitter-free light output;
12. Drive method: Constant current drive;
13. Control panel display: LCD screen;
14. Strobe: 1–30 flashes/second;
15. Optical system: 1) Uses imported milky-white PC light guide plate for uniform light distribution (hiding individual LEDs), high luminous efficacy, and anti-glare performance; 2) Secondary light correction via honeycomb focusing grid to eliminate harsh glare;
16. Material and structure: Patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate for efficient heat dissipation from the LEDs;
17. Cooling method: Fanless integrated aluminum alloy heat dissipation system utilizing natural air convection (utility model patent);
18. Noise level: 0 dB;
19. Protection rating: IP20;
20. Operating temperature monitoring: -20°C to 35°C; built-in temperature sensor for over-temperature protection;
21. Mounting method: Manual suspension or digital electric yoke options;
22. Fixture weight: 25.5 kg;
23. Fixture dimensions: 820 × 605 × 115 mm;
