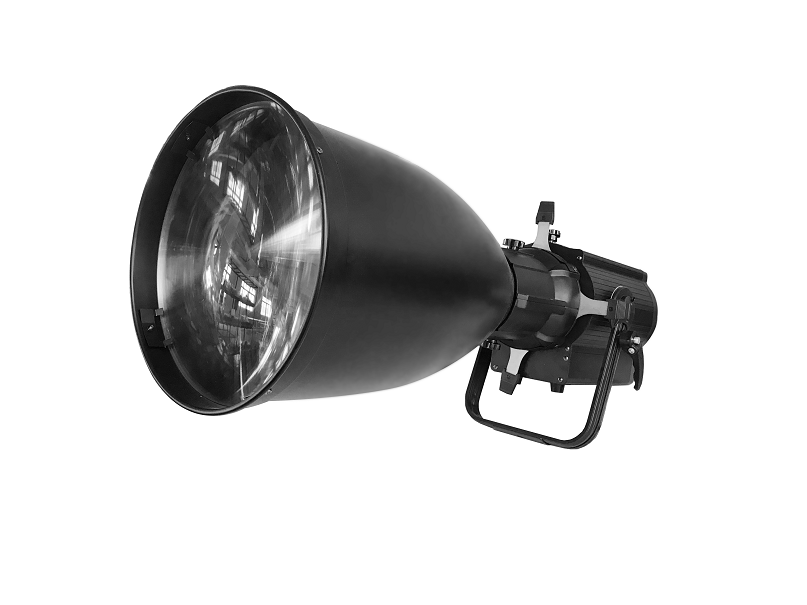

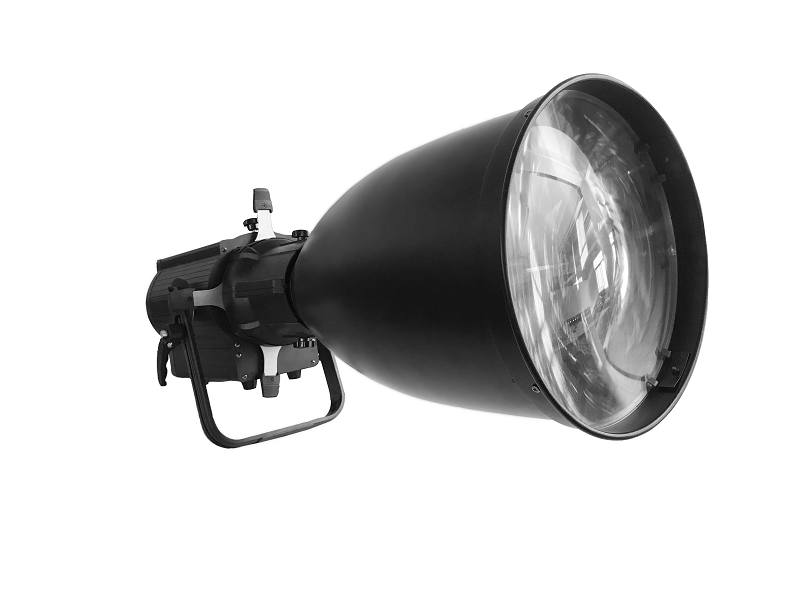

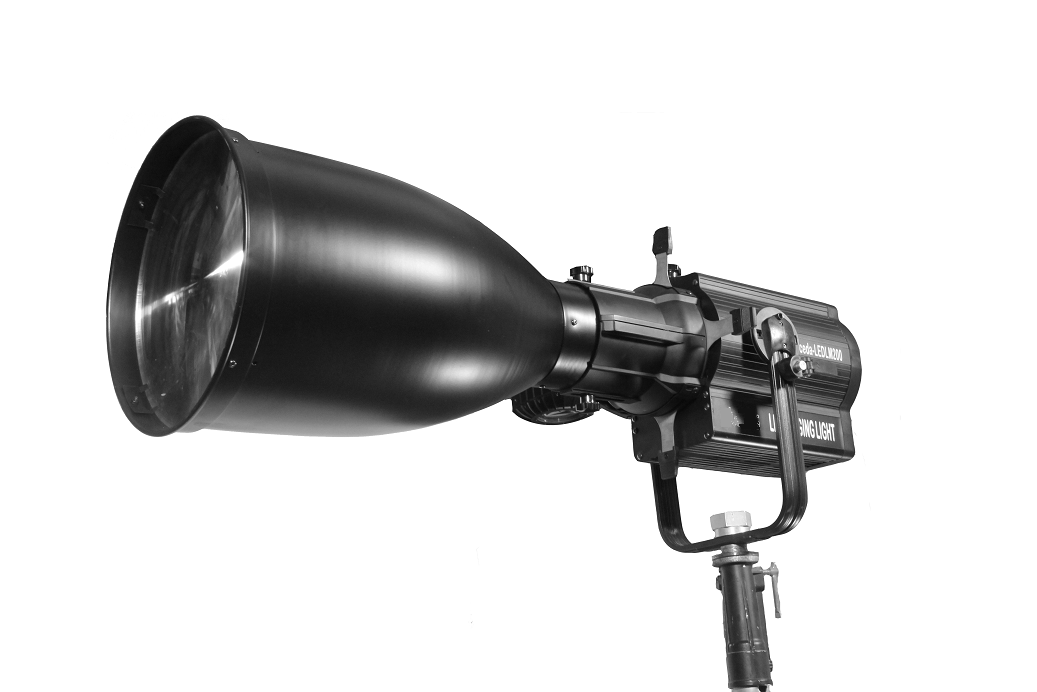

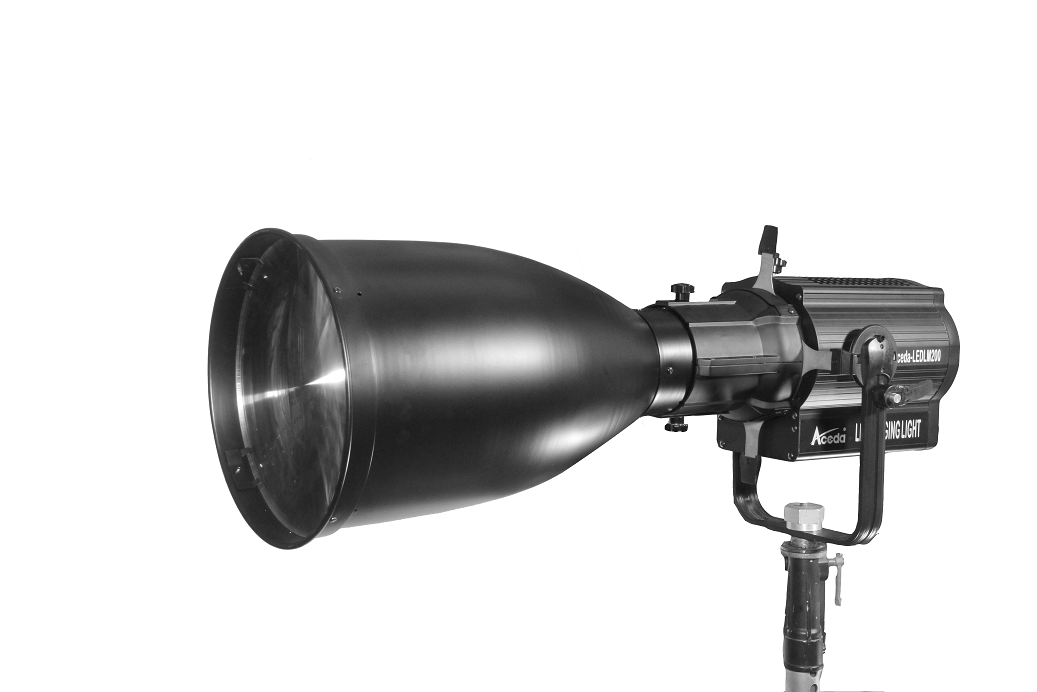

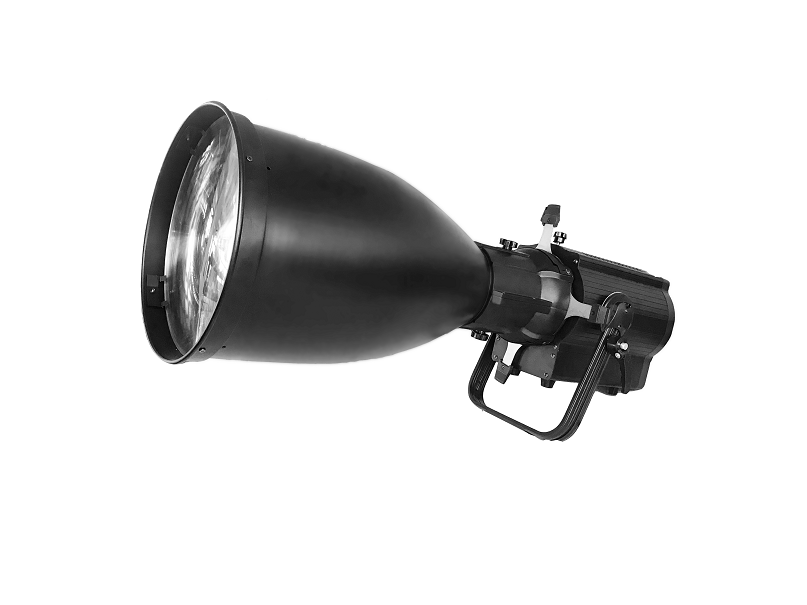

5-Degree Profile Spotlight

1. Power Supply: AC100-240V, 50/60Hz;
2. Light Source: 100/200/300/400/500/600W COB single/dual-color LED; RGBW/RGBWA 4-color/5-color LED;
3. Total Power Consumption: 130/230/330/430/530/630W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95, TLCI ≥95;
6. Beam Angle: 5° fixed focus;
7. Color Temperature: 3200K/5600K (single or dual-color options); 2700K–10000K variable range for color mixing models;
8. Control Channel Modes: Single-color (1/3 CH); Dual-color (2/5/6/11 CH);
9. Control Signal: DMX512/RDM protocols;
10. Dimming Precision & Method: Selectable 30,000-step or 55,000-step resolution; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming Refresh Rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control system ensures flicker-free and jitter-free light output;
12. 12. Drive method: Constant current drive;
13. Control panel display: LCD screen;
14. Luminous efficacy: 110 lm/W;
15. Strobe frequency: 1–30 flashes/second;
16. Optical lens: Uses a combination of a condenser lens and a Fresnel lens; provides uniform light distribution and high luminous efficiency; capable of adjusting beam edge softness (hard/soft focus) and delivering sharp, clean beam cuts without fringing;
17. Materials and structure: Aluminum alloy profile combined with copper heat pipes and finned heat sinks to ensure rapid heat dissipation from the LED source;
18. Cooling method: High-speed heat dissipation via copper pipes and fins with a silent fan (fanless cooling for the 100W model);
19. Noise level: Silent fan operation; noise level does not exceed 25 dB;
20. Ingress protection rating: IP20;
21. Operating temperature monitoring: -20°C to 35°C; features a built-in sensor for over-temperature protection;
22. Mounting method: Manual suspension;
23. Fixture weight: 9.5 kg;
24. Fixture dimensions: 780 × 350 × 335 mm;
25. Impact-resistant design: Molded plastic rear housing and yoke arm covers protect the fixture from collision damage; available in three colors—Diamond Black, Azure Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
