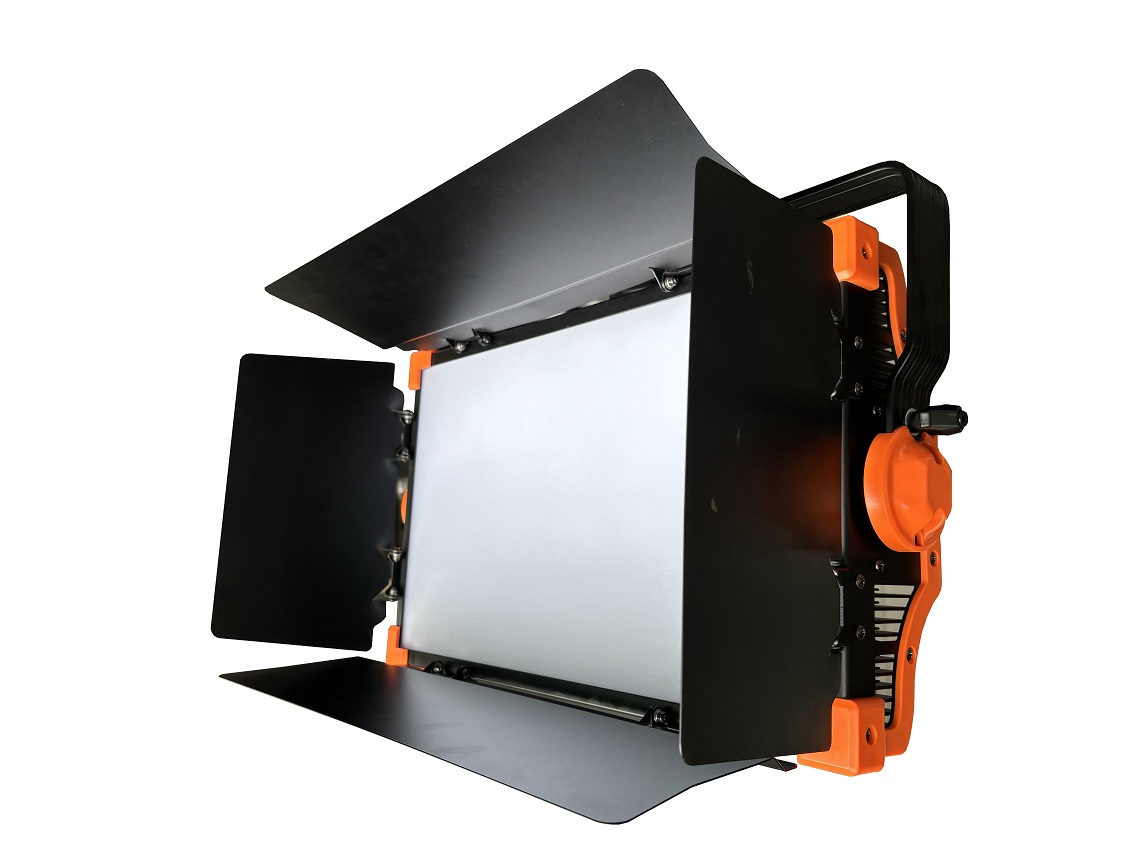

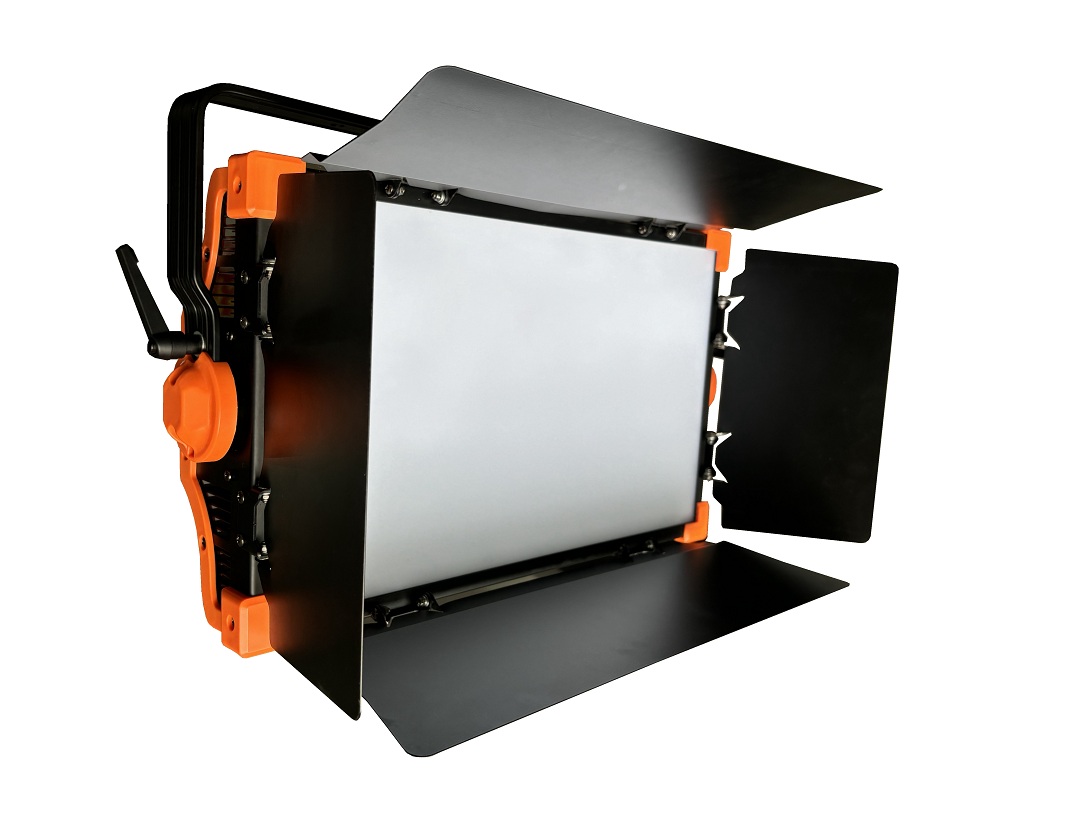

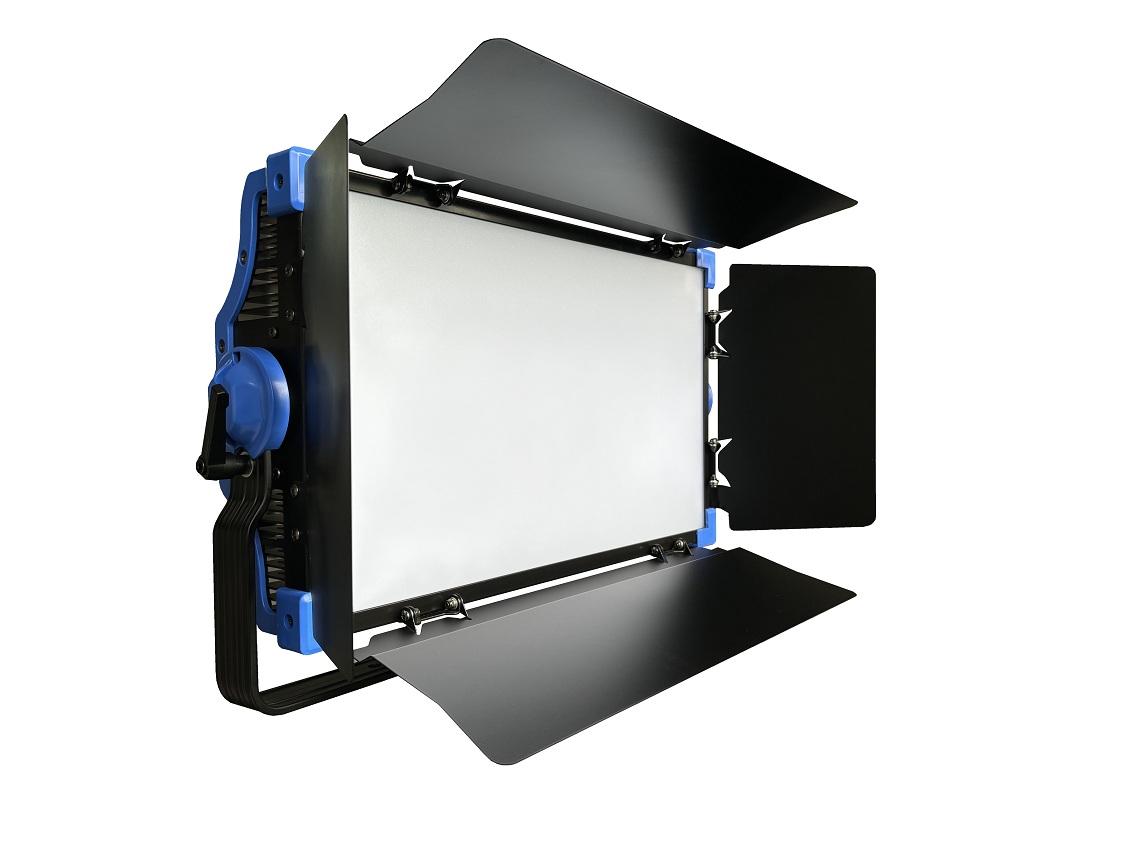

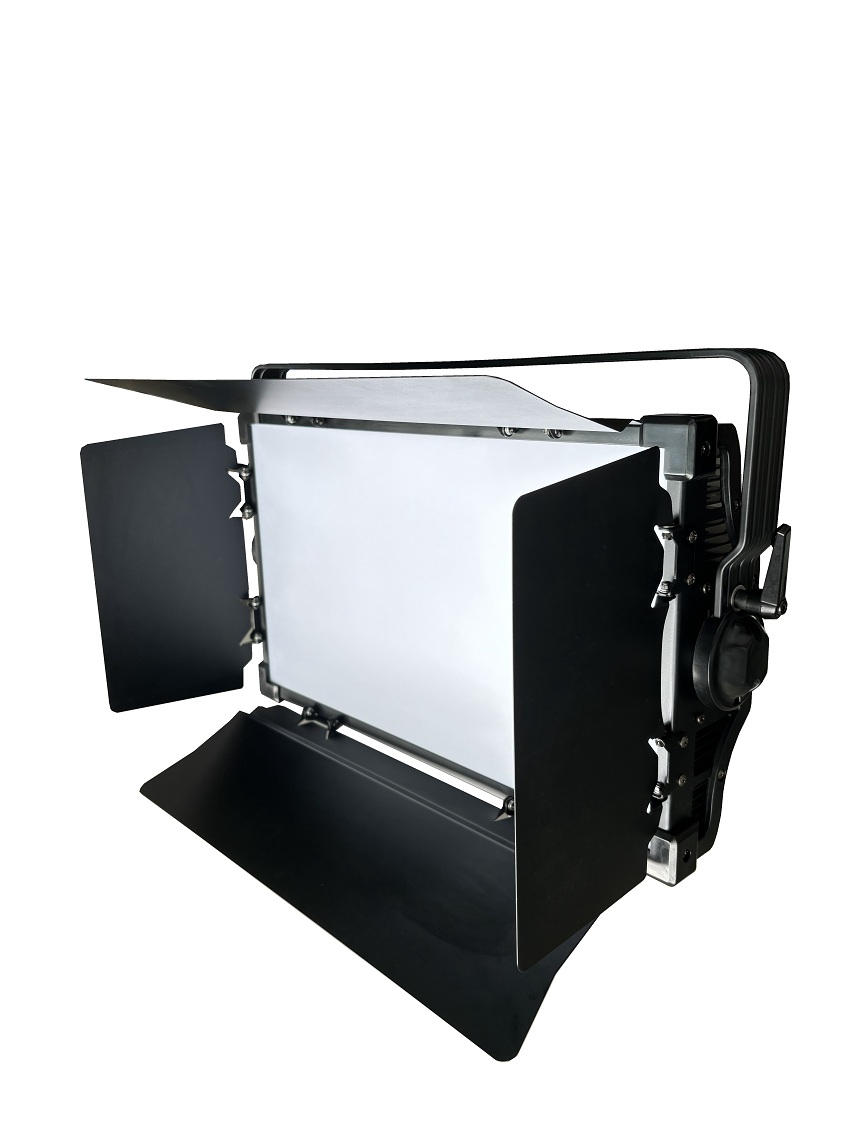

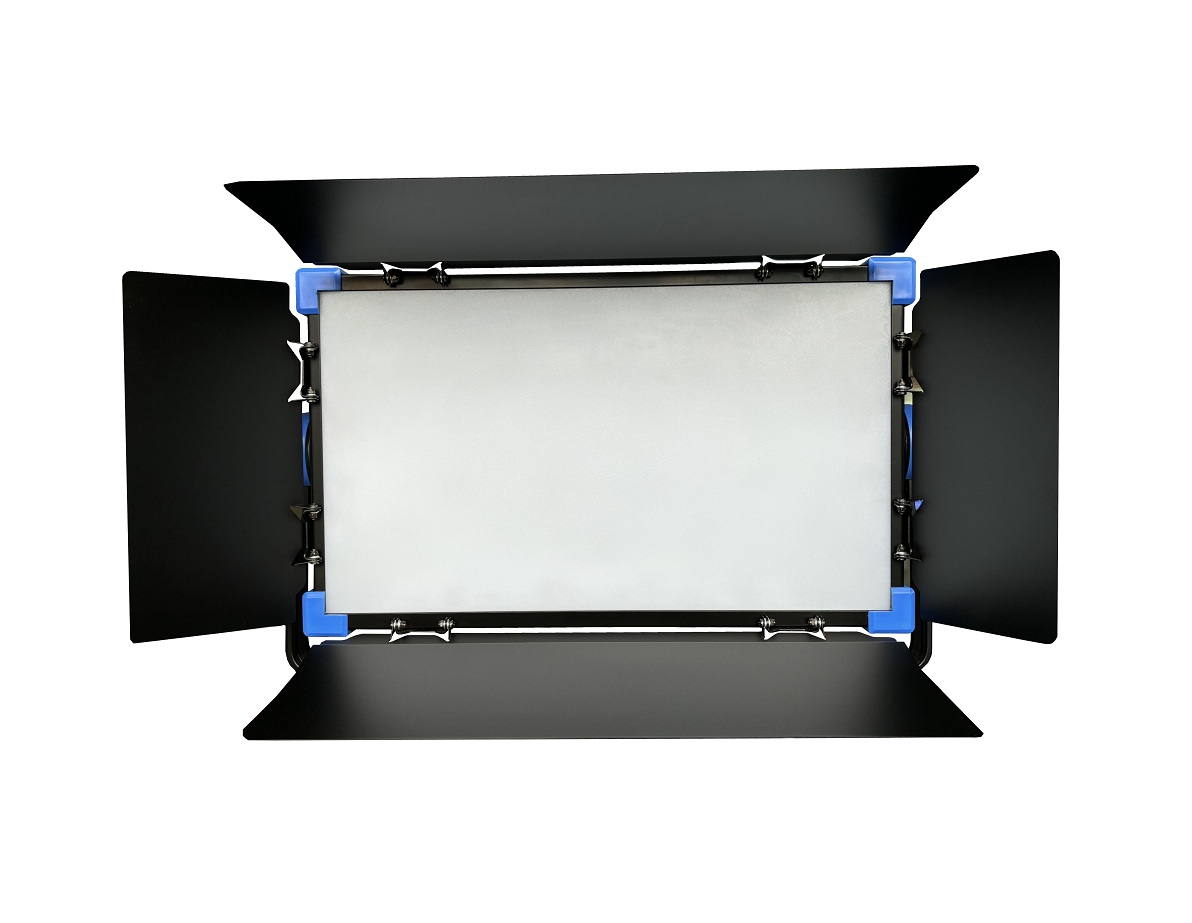

200W Flat Panel Light

1. Power Supply: AC 100-240V, 50/60Hz;
2. Light Source: 576 x 0.5W full-spectrum, high-CRI SMD LEDs;
3. Power: LED power 200W; total fixture power 230W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95, TLCI ≥95;
6. Beam Angle: 120°;
7. Color Temperature: Options for 3200K, 5600K (single), or tunable white (3200K–5600K);
8. Control Channel Modes: Single color (1 or 3 CH); Tunable white (2, 5, or 6 CH);
9. Control Signal: DMX512/RDM protocol;
10. Dimming Precision & Method: 8-bit, 16-bit, or 32-bit options; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming Refresh Rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control technology ensures flicker-free and jitter-free light output;
12. Drive Method: Constant current drive;

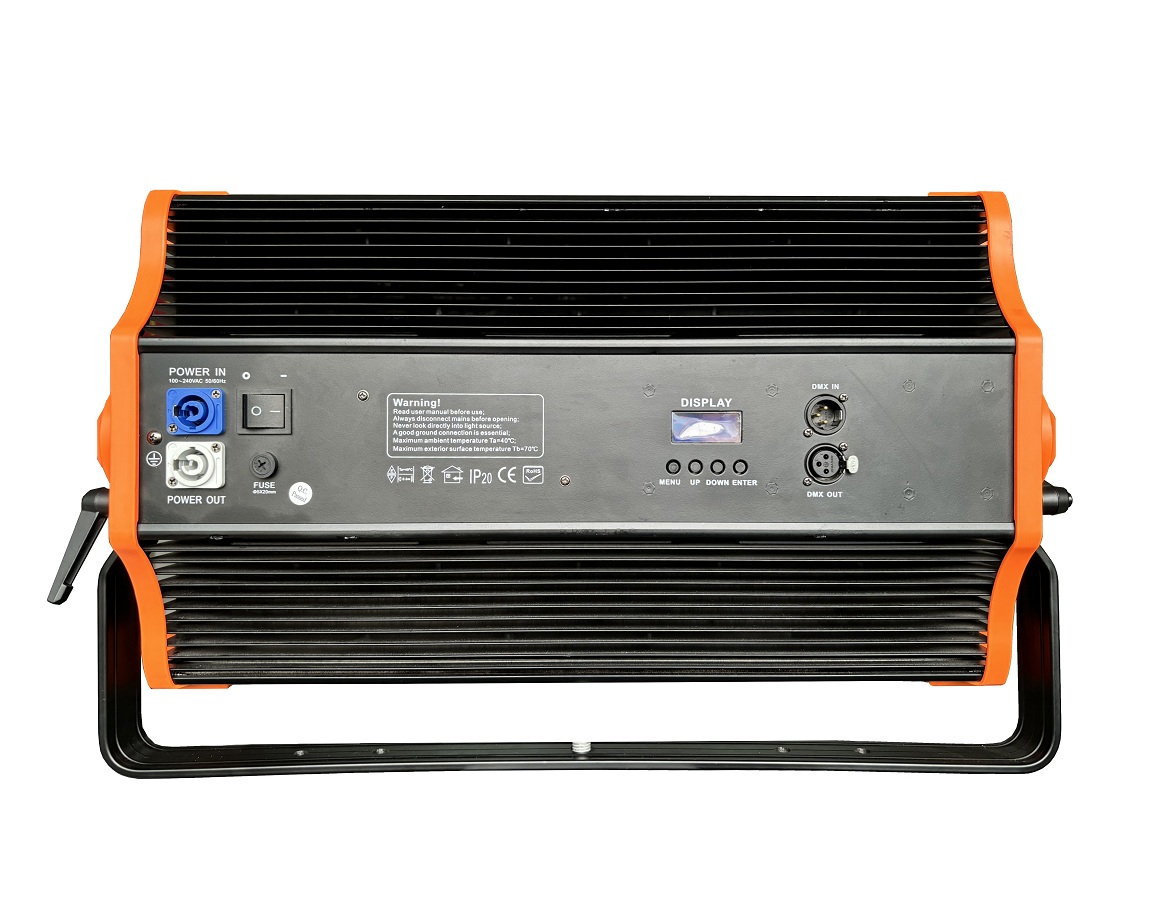

13. Control Panel Display: LCD screen;
14. Strobe: 1–30 flashes/second;
15. Optical System: 1) Imported milky-white PC light guide plate (hides individual LEDs, ensures uniform light distribution, high luminous efficacy, anti-glare); 2) Secondary light output correction via honeycomb grid to eliminate glare/harshness;
16. Material & Structure: Patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate for efficient heat dissipation from the LEDs;

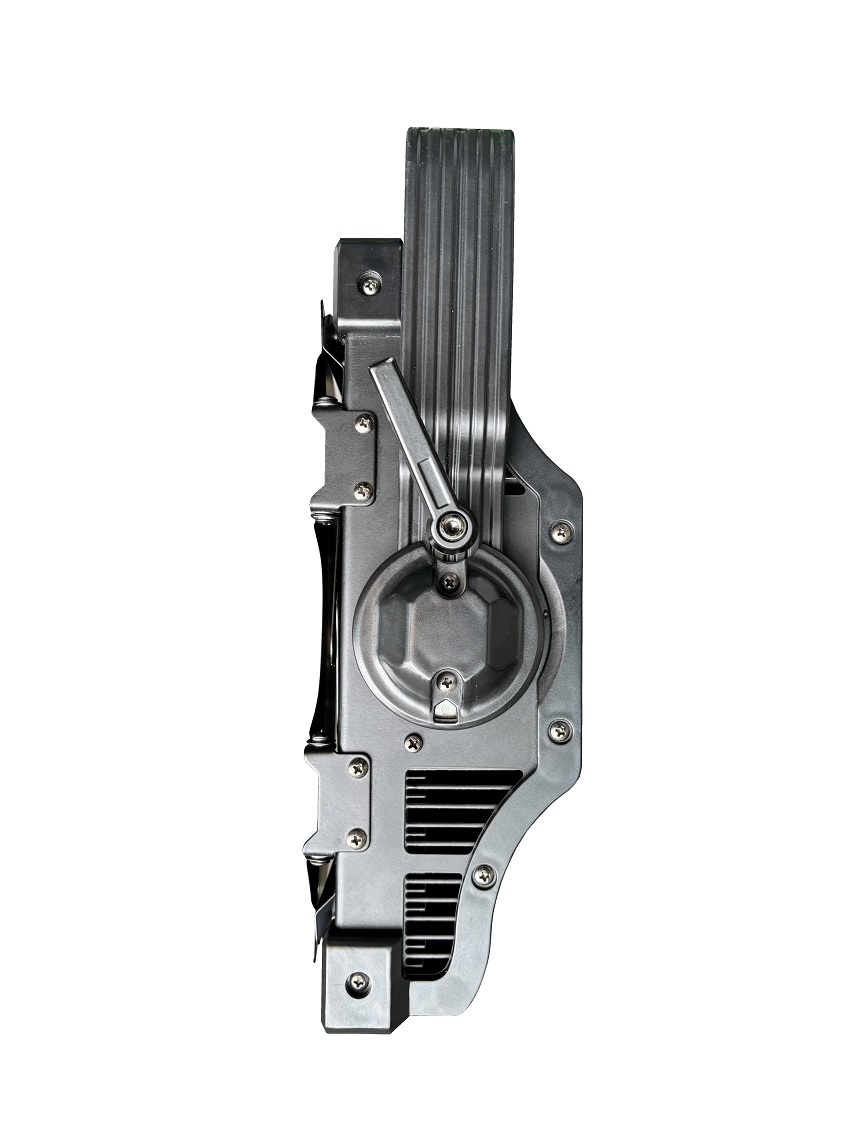

17. Cooling Method: Fanless integrated aluminum alloy cooling system utilizing natural air convection (Utility Model Patent);
18. Noise Level: 0 dB. db;
19. Protection rating: IP20;
20. Operating ambient temperature monitoring: -20°C to 35°C; features a built-in temperature sensor for over-temperature protection;
21. Mounting method: Choice of manual suspension or digital electric motorized yoke;
23. Fixture weight: 12.5 kg;
24. Fixture dimensions: 575 x 320 x 115 mm;

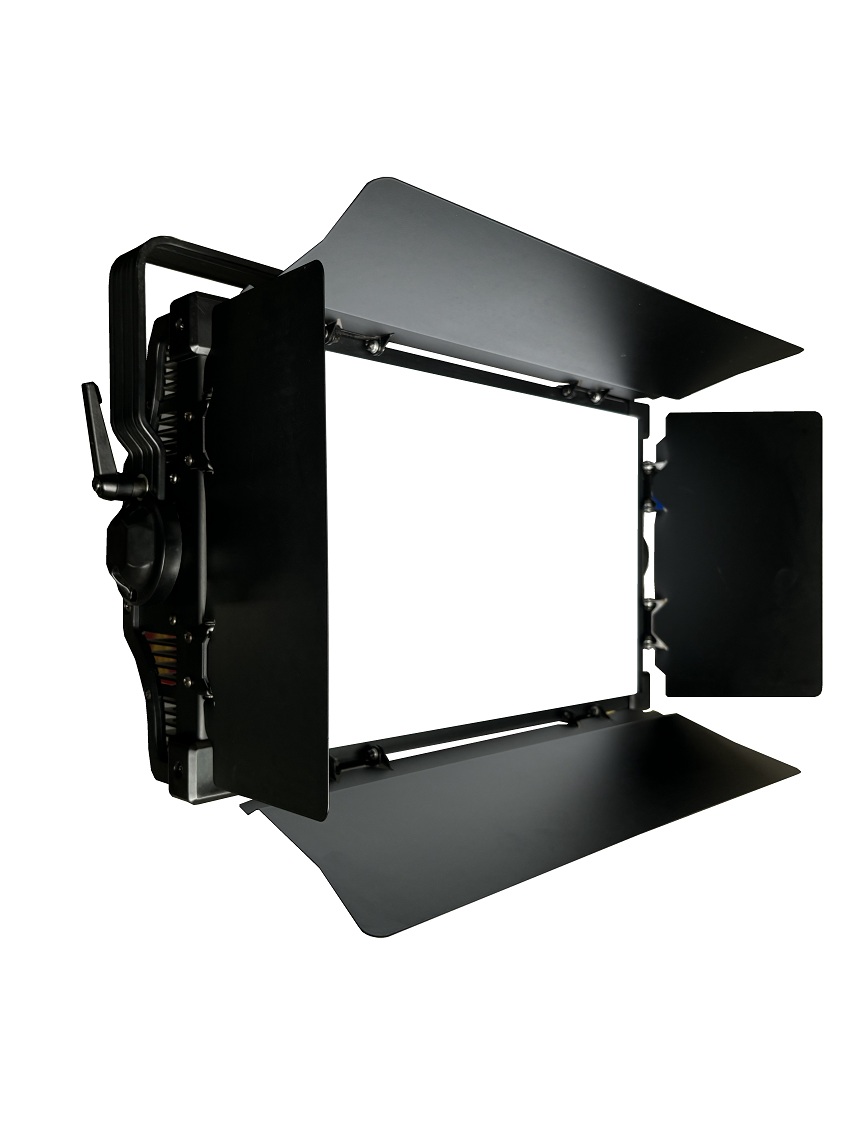

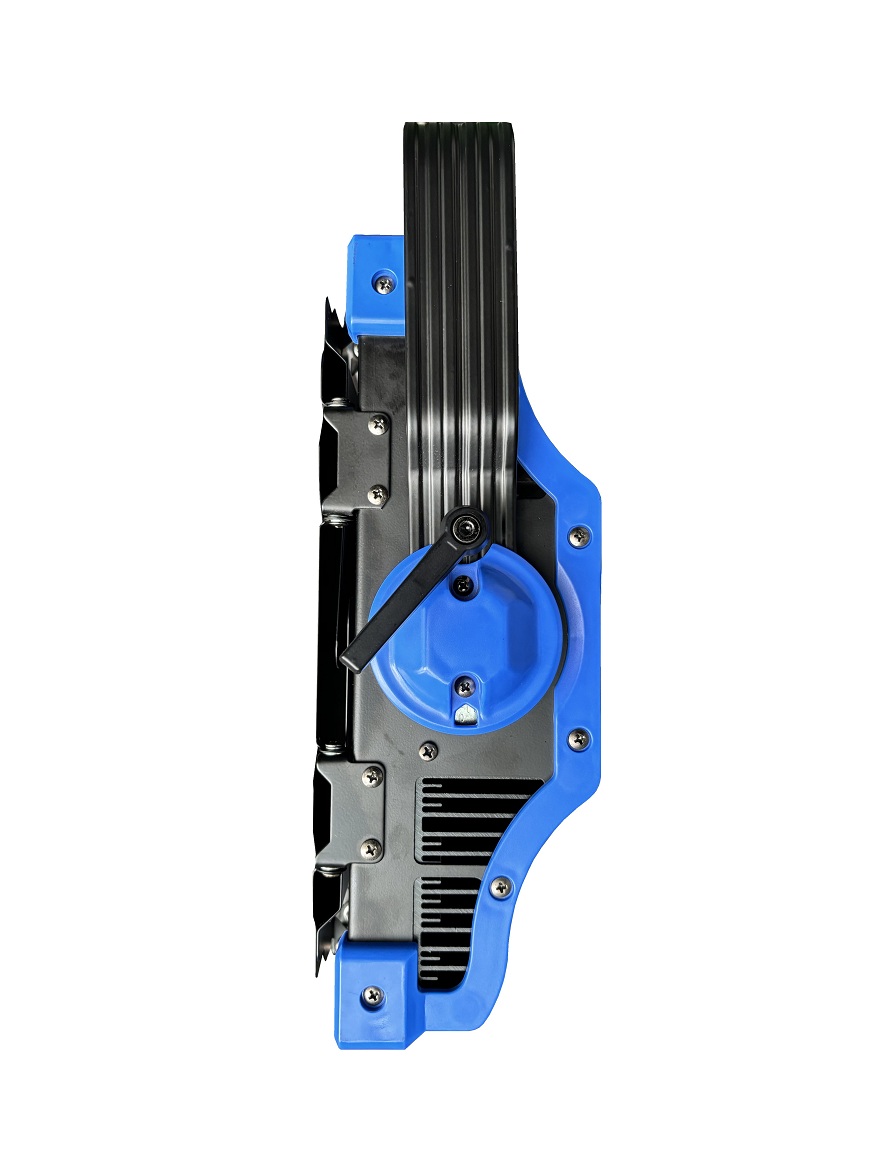

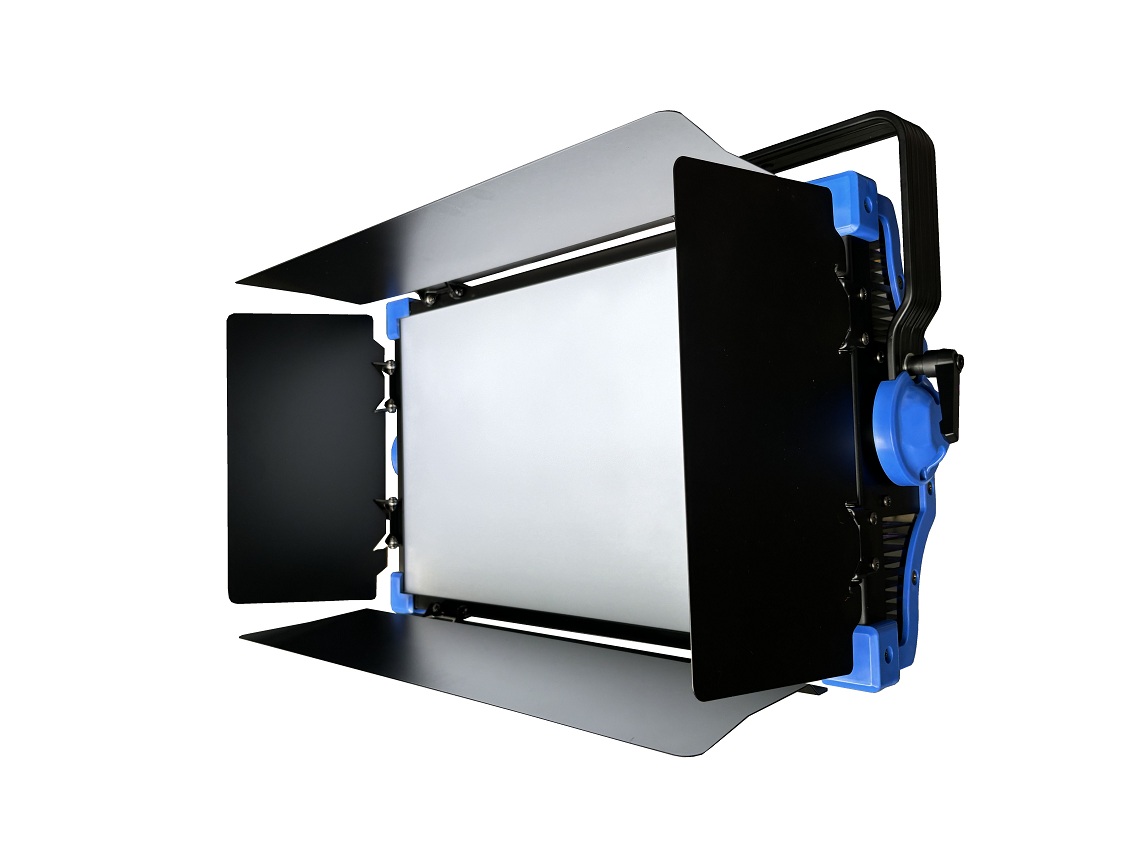

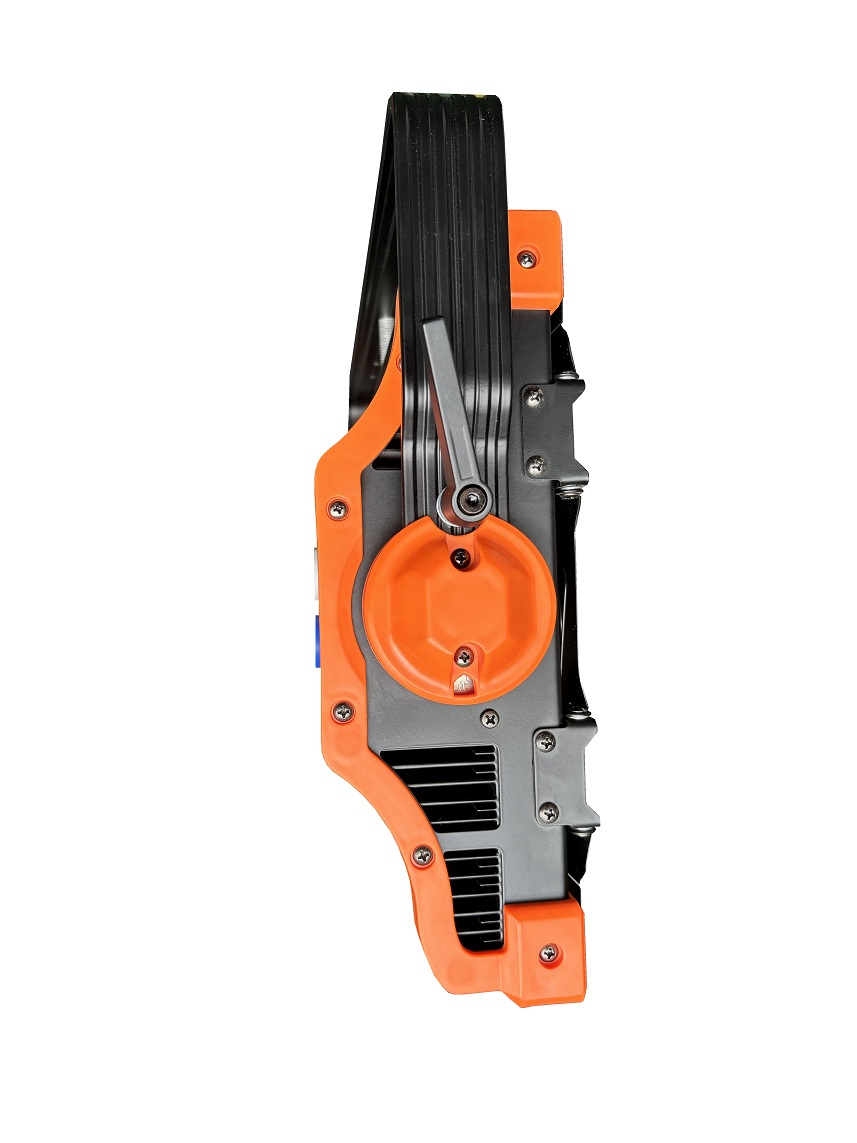

25. Impact-resistant design: Molded plastic is used for the frame and yoke covers to prevent damage from collisions; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
