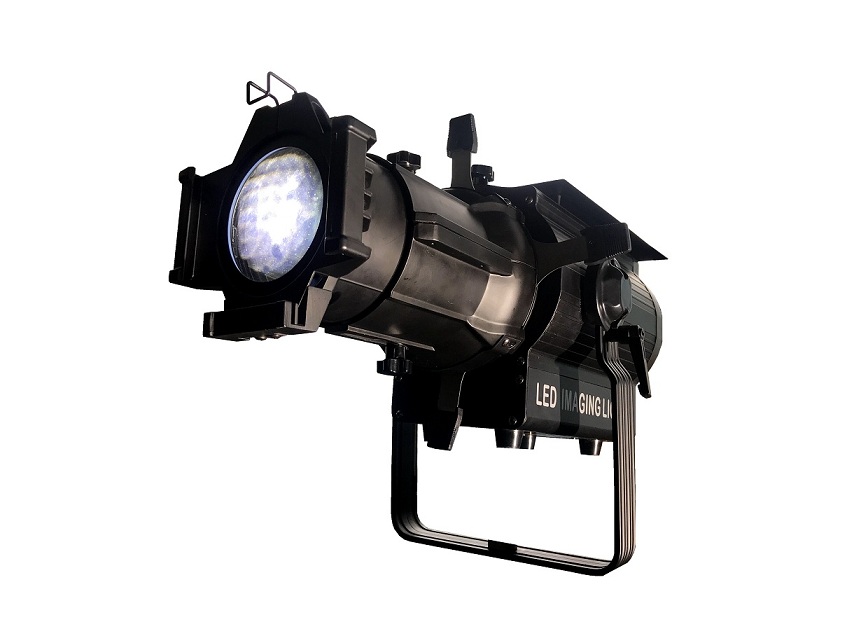

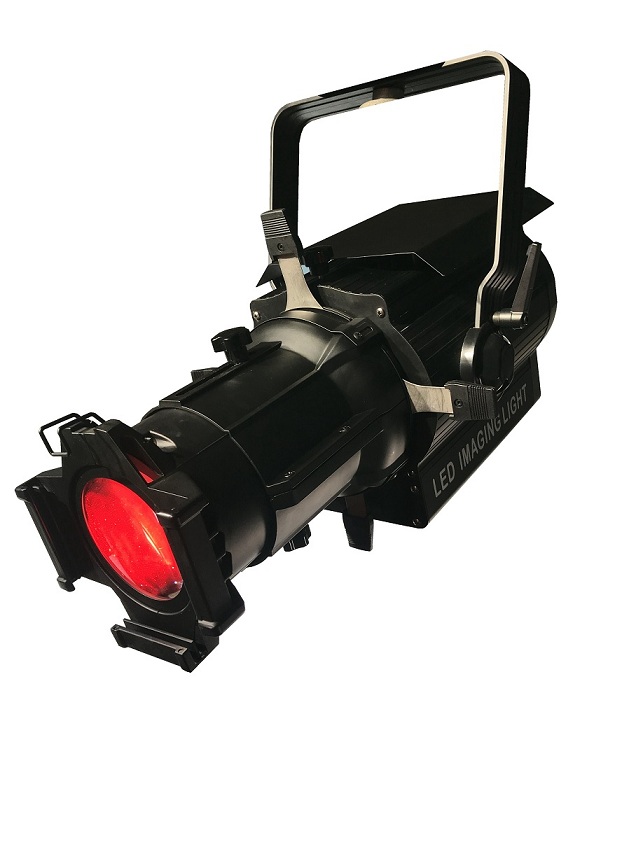

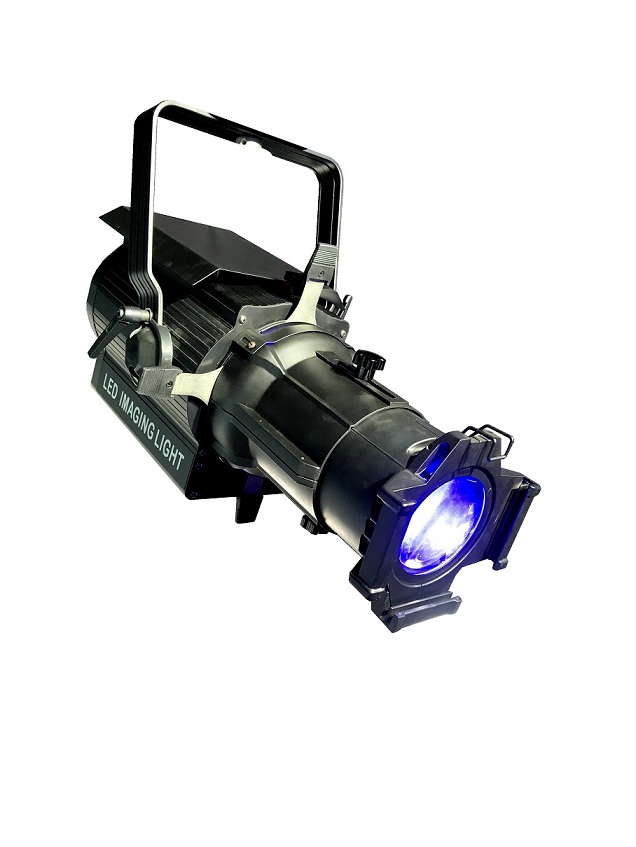

19-Degree Waterproof Profile Light

1. Power Supply: AC100-240V, 50/60Hz;
2. Light Source: 100/200/300/400W COB Single/Dual Color LED; RGBW/RGBWA 4-Color/5-Color LED;
3. Total Power Consumption: 130/230/330/430W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95, TLCI ≥95;
6. Beam Angle: 19° (26°, 36°, 50°) Fixed Focus;
7. Color Temperature: 3200K/5600K (Single/Dual Color options); Color Mixing Range: 2700K–10000K;
8. Control Channel Modes: Single Color (1/3 CH options); Dual Color (2/5/6 CH options);
9. Control Signal: DMX512/RDM Protocol; 10. Dimming precision and modes: Selectable 30,000-step or 65,000-step resolution; smooth, linear dimming from 0–100%; choice of 3 dimming curves;
11. Dimming refresh rate: Above 16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control technology ensures flicker-free and jitter-free light output;
12. Drive method: Constant current drive;
13. Control panel display: LCD screen; manual control interface featuring dual rotary knobs;
14. Luminous efficacy: 110 lm/W;
15. Strobe rate: 1–30 flashes/second;
16. Optical lens: Uses a combination of a light-gathering lens and a focusing/imaging lens group; provides uniform light distribution and high efficiency; capable of producing both soft and hard-edged beams; delivers sharp, clean-cut beam edges without fringing;
17. Materials and structure: Constructed from aluminum alloy profiles, copper heat pipes, and finned heat sinks to ensure rapid heat dissipation from the LED source;
18. Cooling method: High-efficiency cooling via copper heat pipes and fins combined with a silent fan (100W model utilizes fanless cooling);
19. Noise level: Silent fan operation; noise level does not exceed 25dB;
20. Protection rating: IP44;
21. Operating temperature monitoring: -20°C to 35°C; includes built-in thermal protection sensor to prevent overheating;
22. Mounting method: Manual suspension mounting;
23. Fixture weight: 10.8 kg;
24. Fixture dimensions: 600 x 350 x 335 mm;
25. Impact-resistant design: Molded plastic rear cover and mounting arm covers protect against impact damage; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
