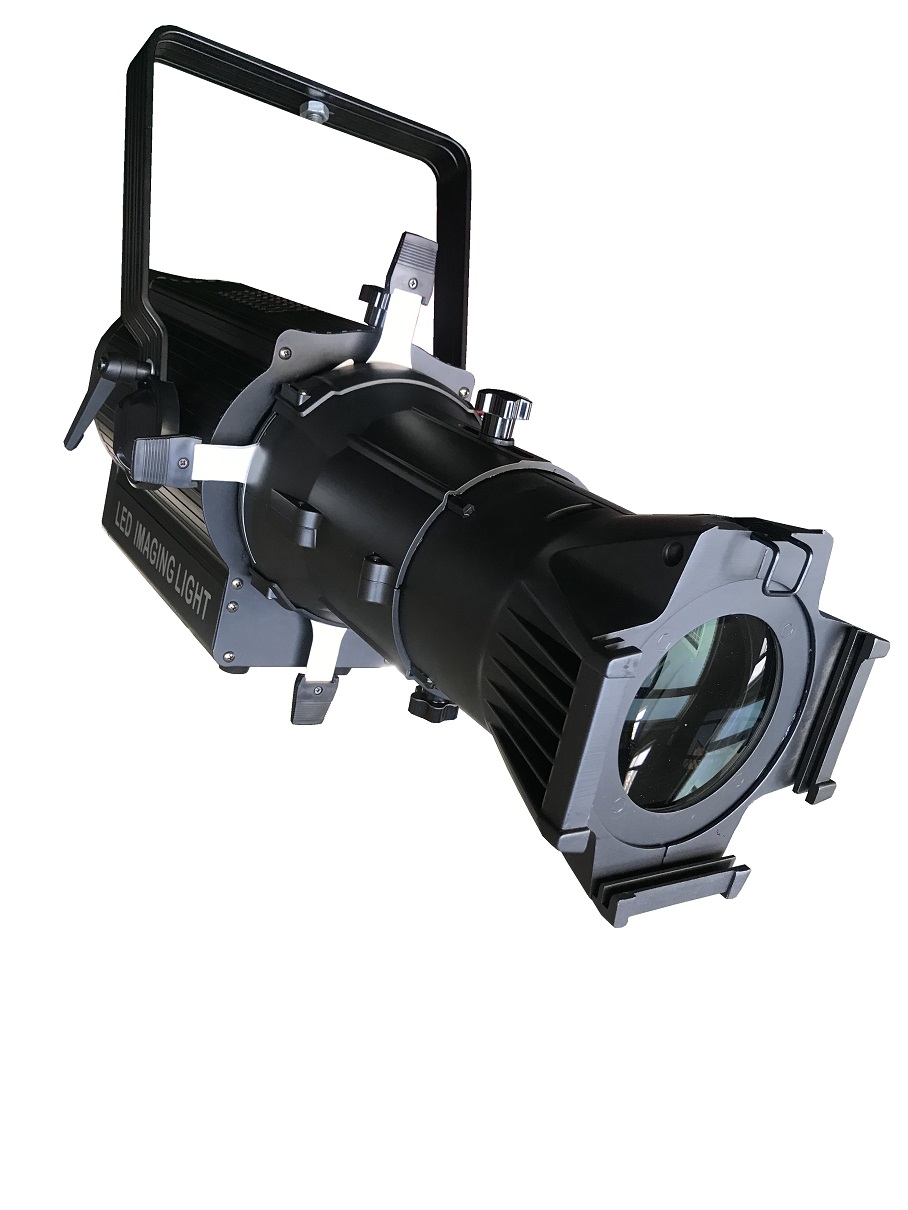

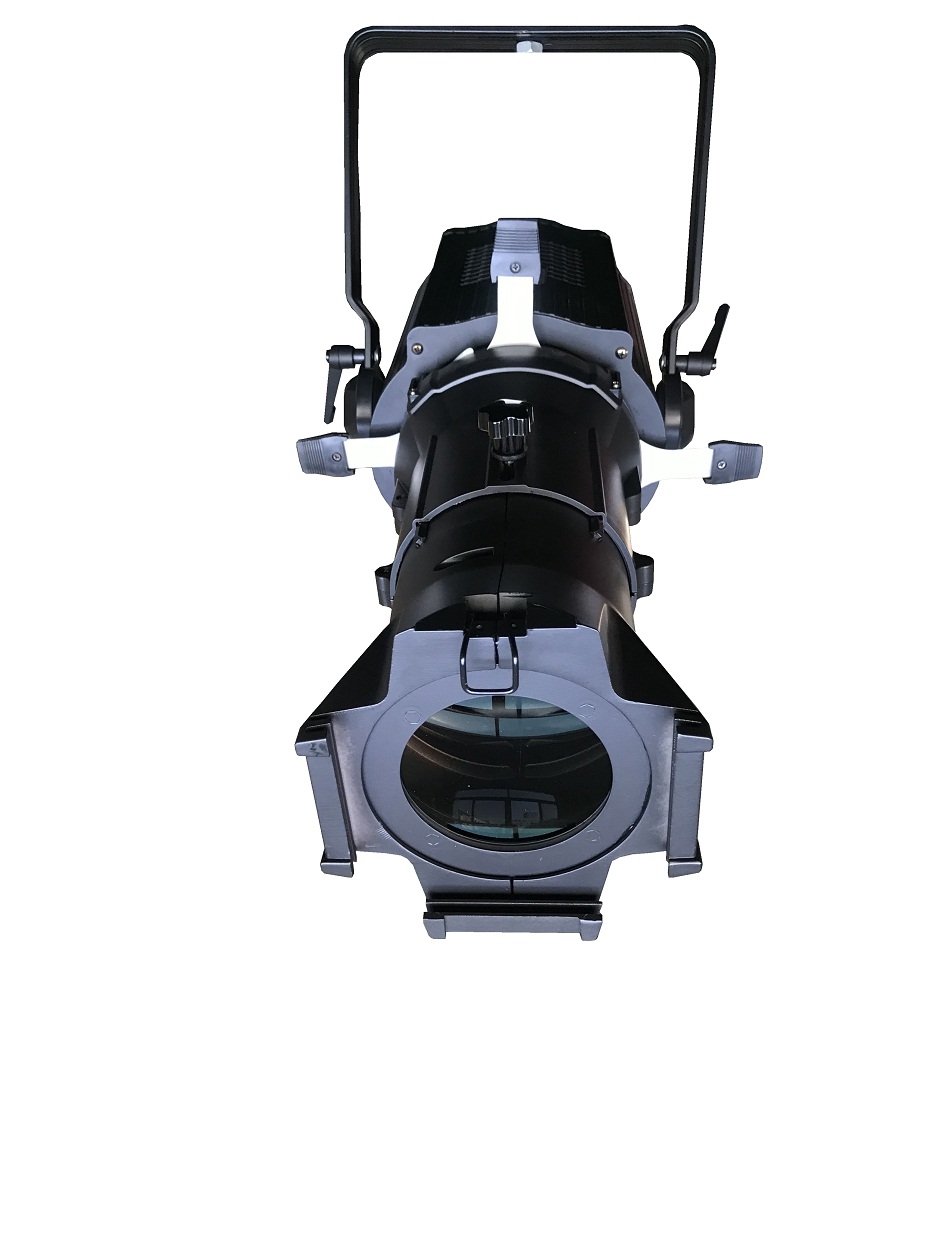

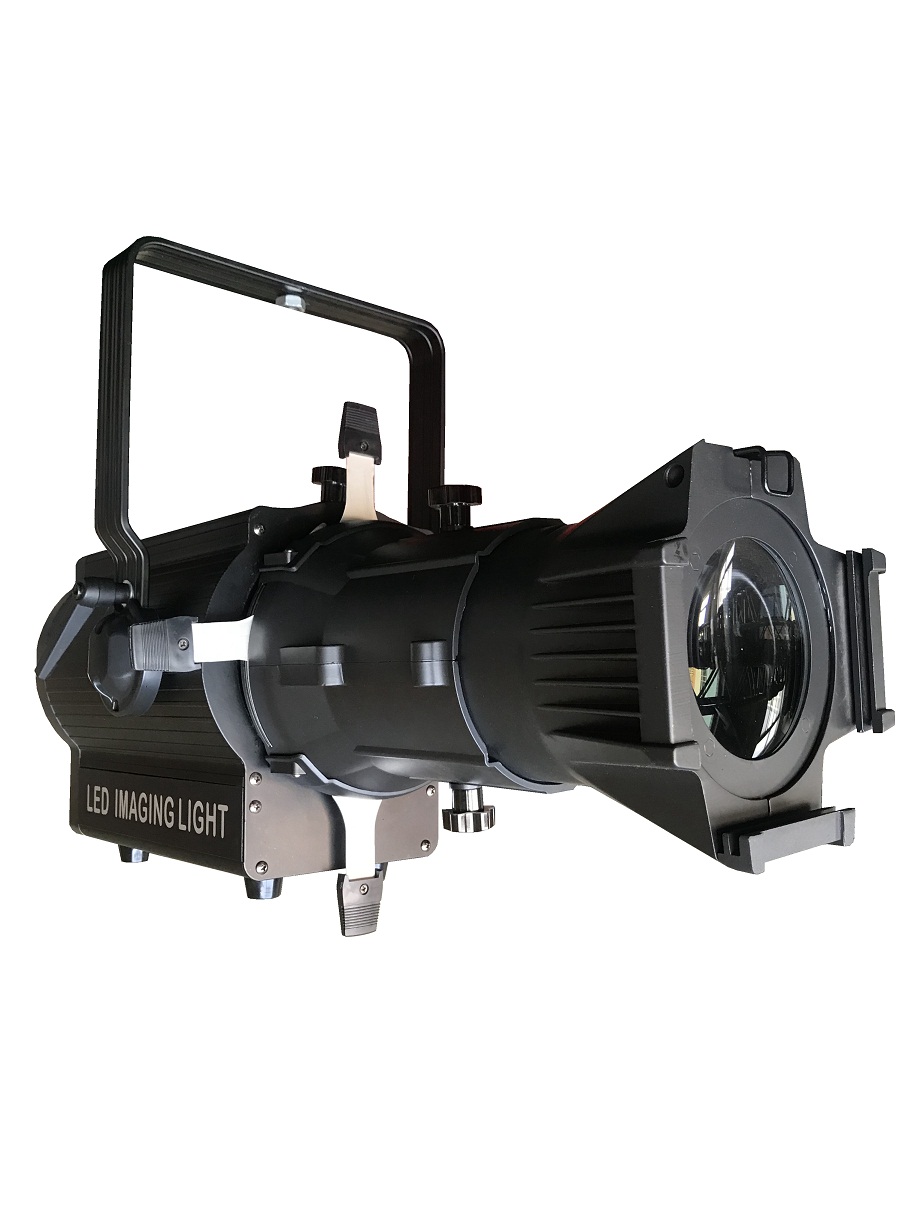

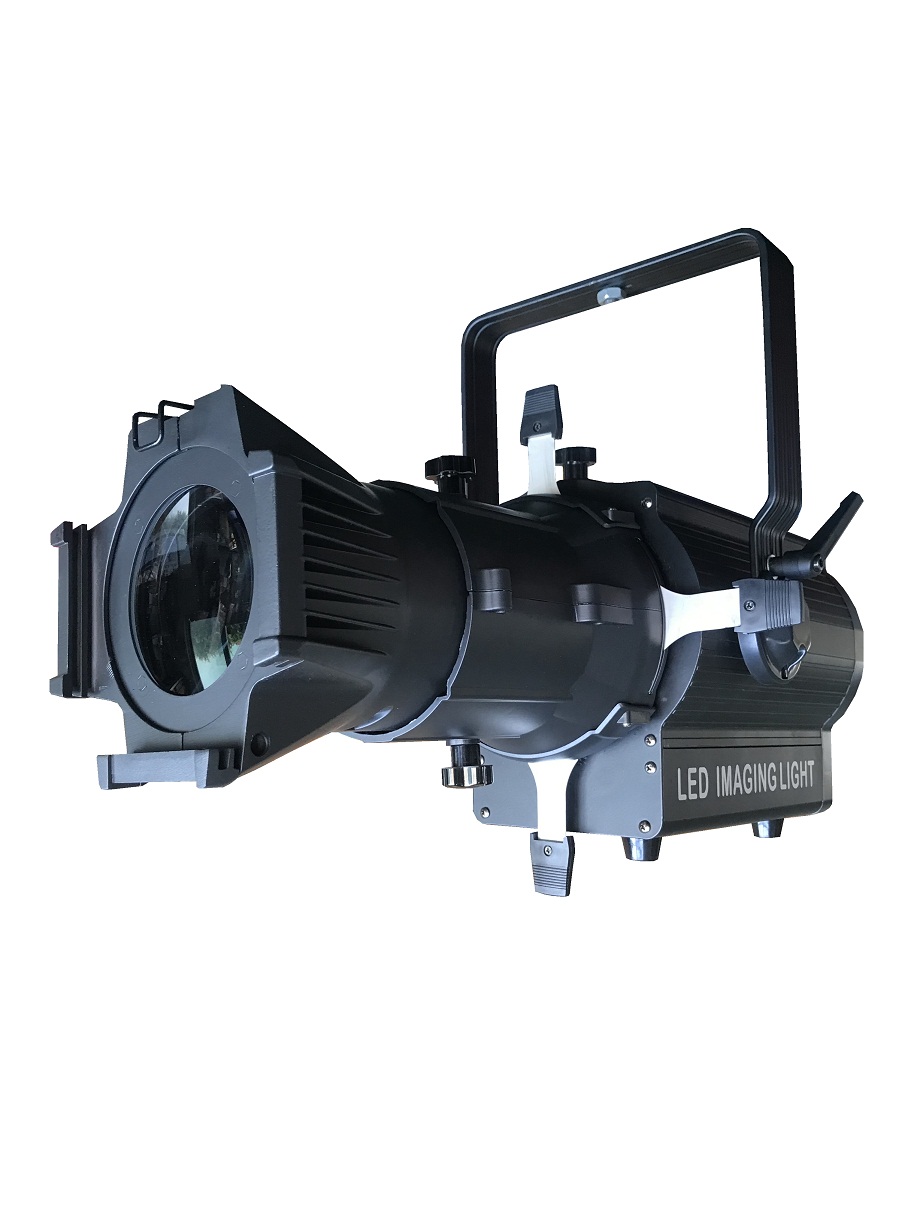

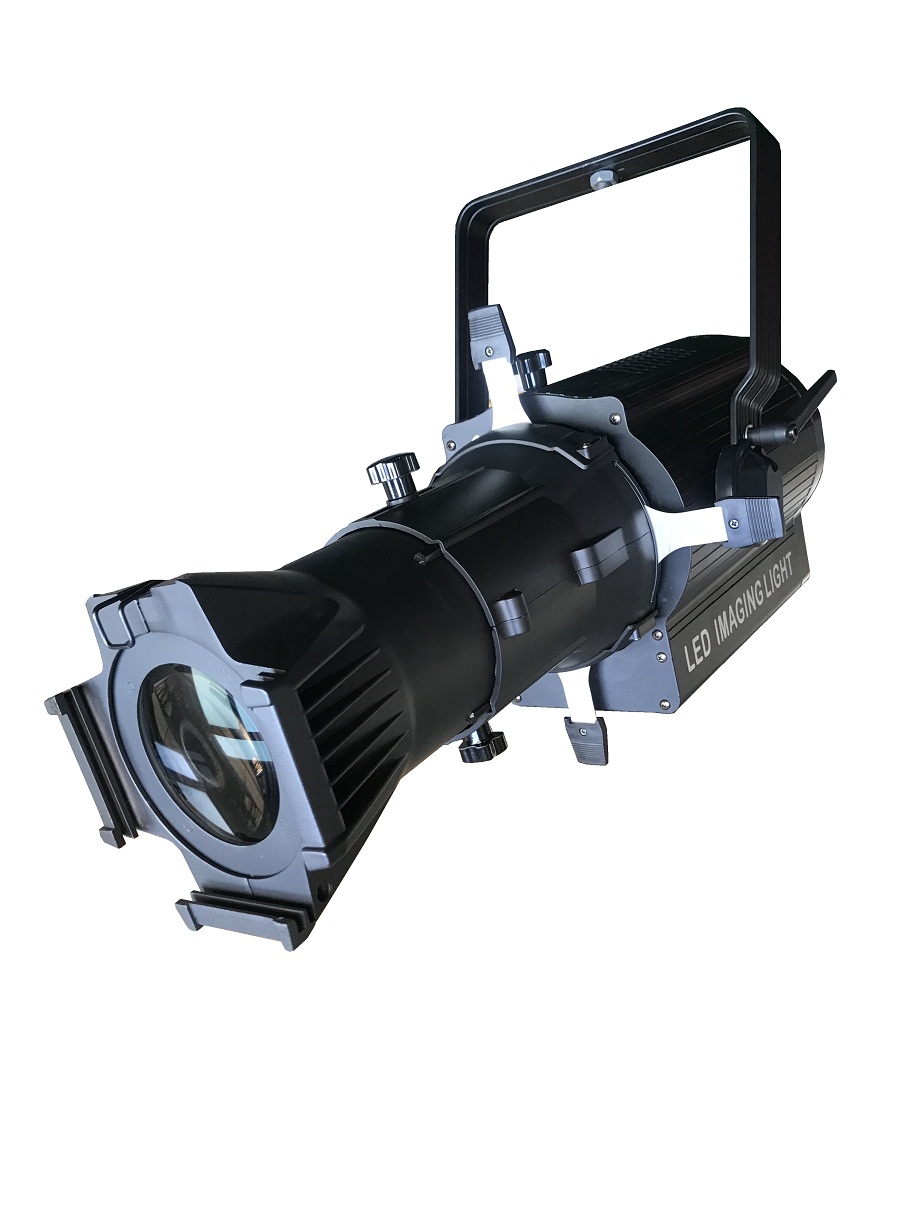

19-Degree Profile Spotlight

1. Power Supply: AC100-240V, 50/60Hz;
2. Light Source: 100/200/300/400/500/600W COB single/dual-color LED chips; RGBW/RGBWA four/five-color LED chips;
3. Total fixture power: 130/230/330/430/530/630W;
4. Light source lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95; TLCI ≥95;
6. Beam angle: 19° (26°, 36°, 50°) fixed focus;
7. Color temperature: Single (3200K or 5600K) or dual-color temperature options; color mixing range: 2700K–10000K;
8. Control channel modes: Single-color (1 or 3 CH); dual-color (2, 5, or 6 CH);
9. Control signal: DMX512/RDM protocols;
10. Dimming precision and method: 8-bit/16-bit/32-bit selectable; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming refresh rate: >8kHz (selectable 16kHz/24kHz/32kHz); high-frequency control system ensures flicker-free and jitter-free light output;
12. Drive method: Constant current drive;
13. Control panel display: LCD screen; manual control via dual rotary knobs on the interface;
14. Luminous efficacy: 110 lm/W;
15. Strobe: 1–30 flashes/second;
16. Optical lens: Features a combination of a light-gathering lens and a focusing/imaging lens group; ensures uniform light distribution and high luminous efficacy; capable of producing both soft and hard-edged light spots, with sharp, clean-cut projection lines free of fringing;
17. Materials and structure: Constructed using aluminum alloy profiles, copper heat pipes, and finned heat sinks to ensure rapid heat dissipation from the LED source;
18. Cooling method: Utilizes copper heat pipes and finned heat sinks for high-speed heat dissipation, combined with a silent fan (the 100W model employs fanless cooling);
19. Noise level: Uses a silent fan; noise output does not exceed 25 dB;
20. Protection rating: IP20;
21. Operating temperature monitoring: -20°C to 35°C; includes a built-in sensor for over-temperature protection;
22. Mounting method: Manual suspension;
23. Fixture weight: 10.8 kg;
24. Fixture dimensions: 600 × 350 × 335 mm;
25. Impact-resistant design: Molded plastic rear cover and mounting arm covers protect the fixture from impact damage; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
