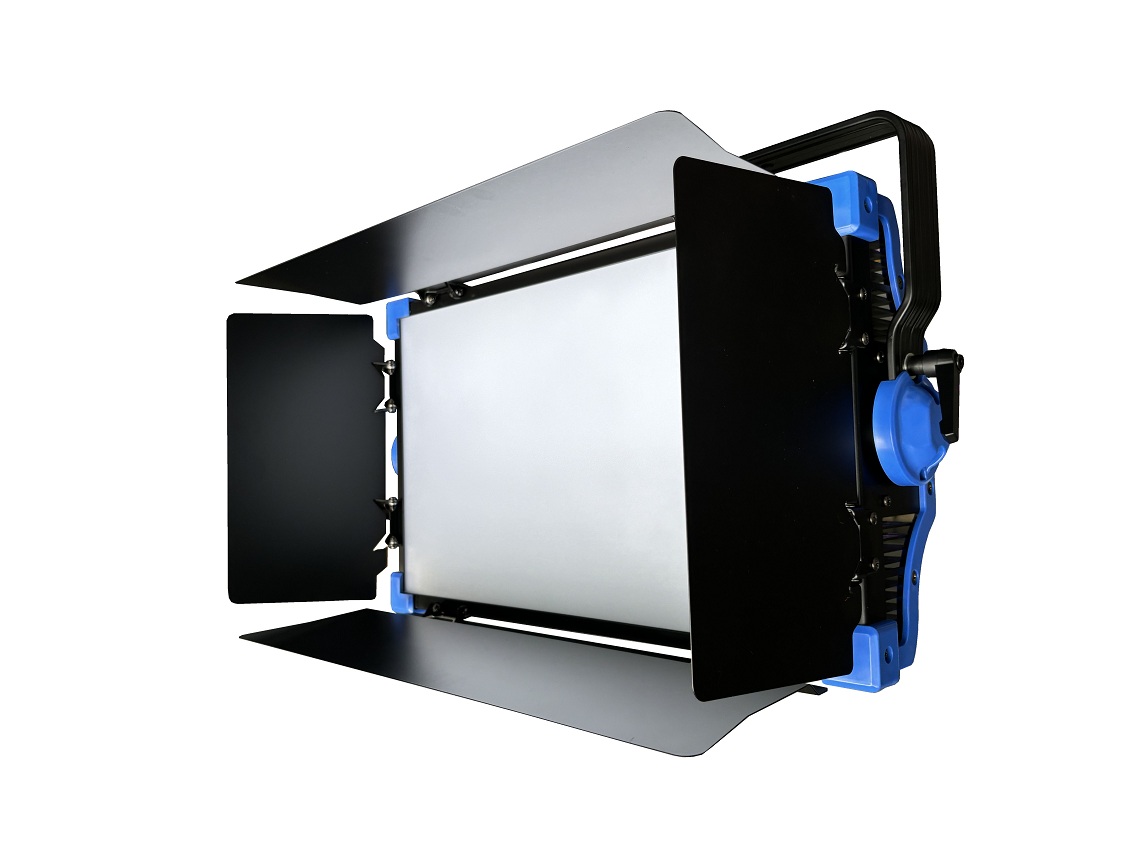

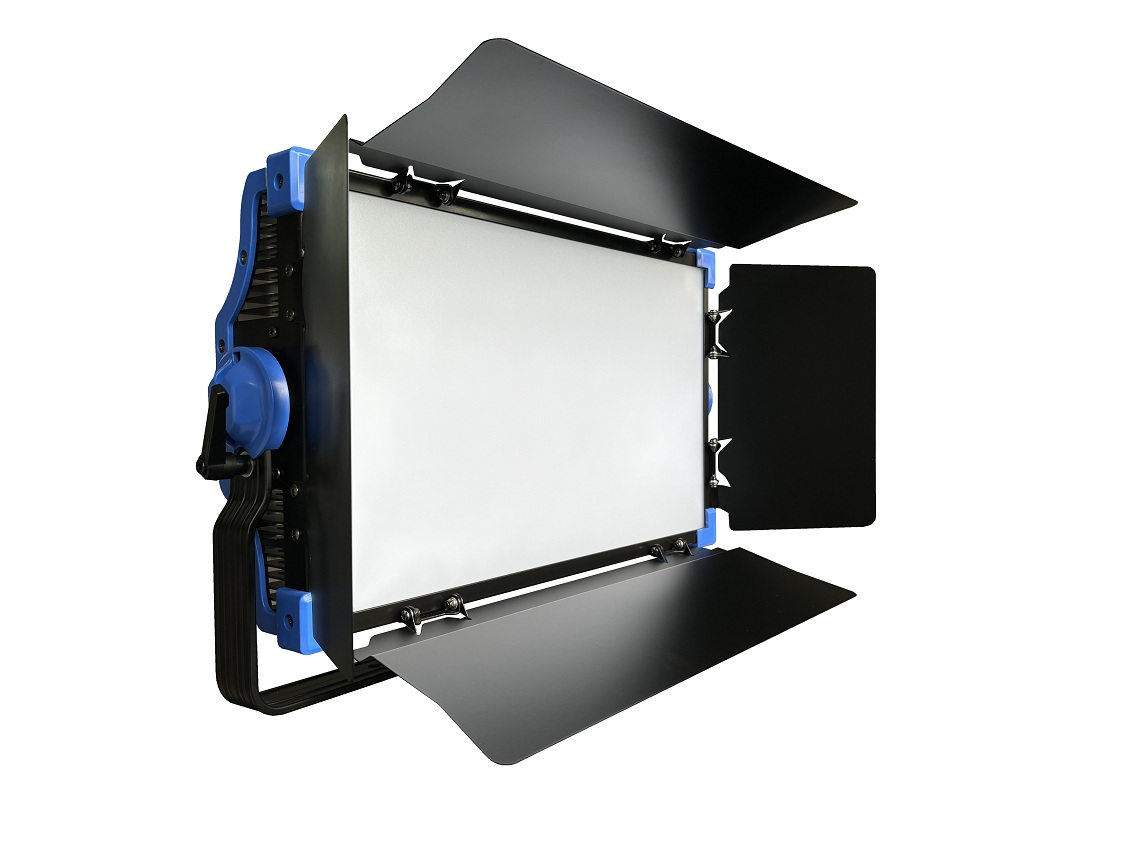

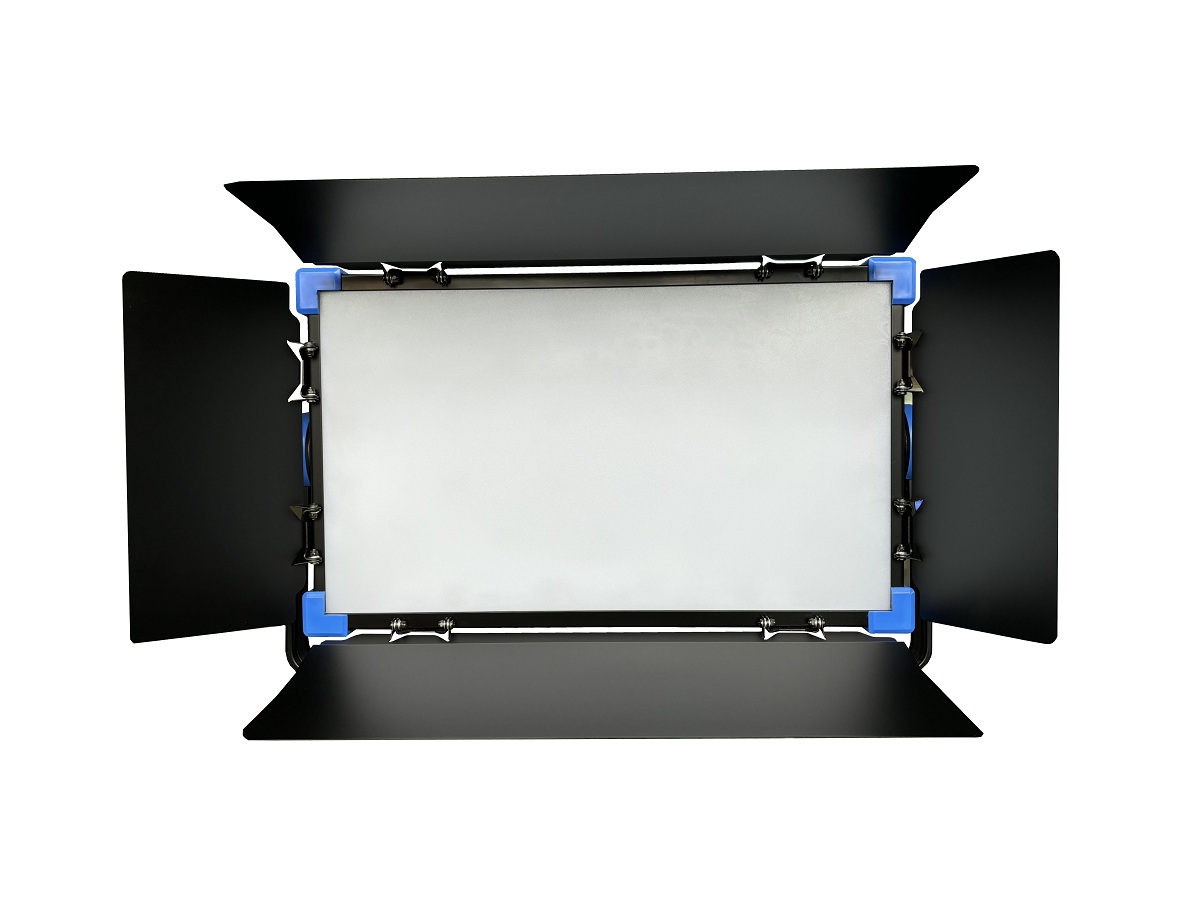

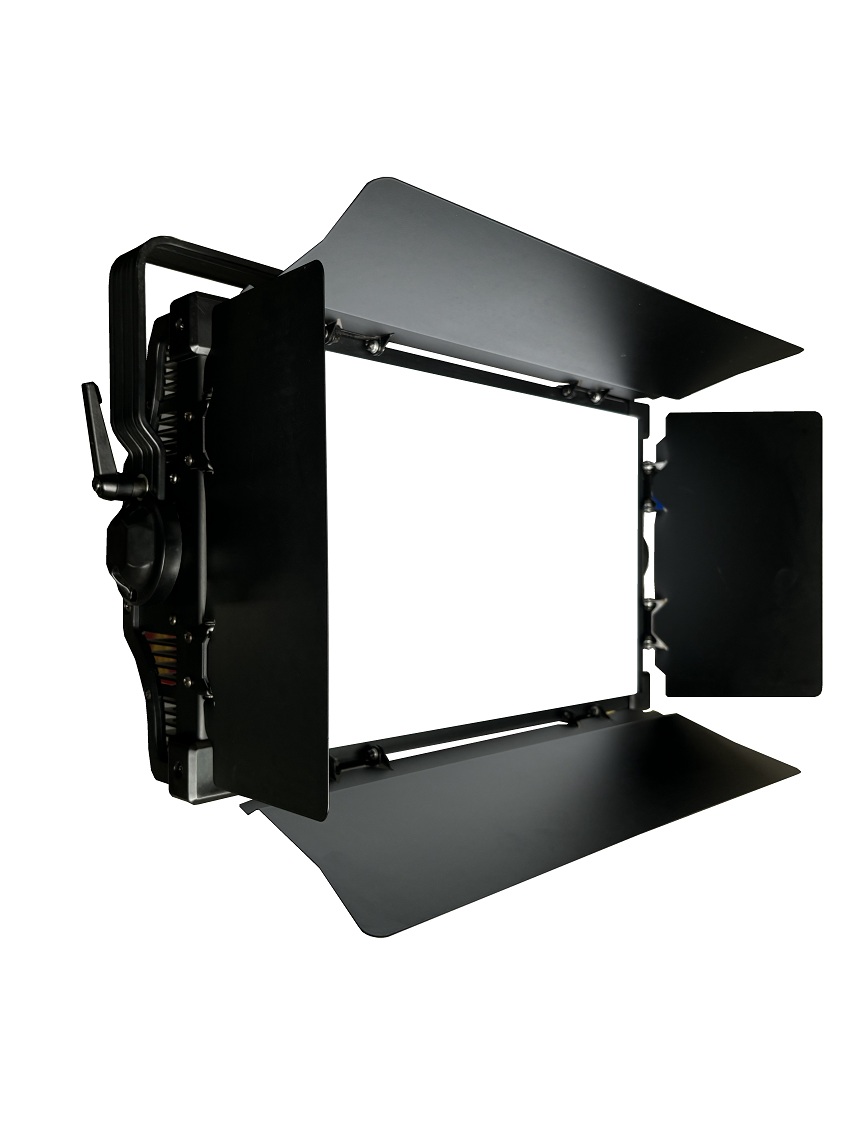

160W Flat Panel Light

1. ​​Power Supply: AC 100–240V, 50/60Hz;
2. Light Source: Minimum of 460 high-CRI LED SMD chips;
3. Power: LED power 150W; total fixture power 170W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95, TLCI ≥95;
6. Beam Angle: 120°;
7. Color Temperature: Options for 3200K (single), 5600K (single), or adjustable dual color temperature (3200K–5600K);
8. Control Channel Modes: Single color: 1 or 3 channels; Dual color: 2, 5, or 6 channels;
9. Control Signal: DMX512/RDM protocols;
10. Dimming Precision & Method: Selectable 8-bit, 16-bit, or 32-bit modes; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming Refresh Rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control system ensures flicker-free and jitter-free light output;
12. Drive Method: Constant current drive;

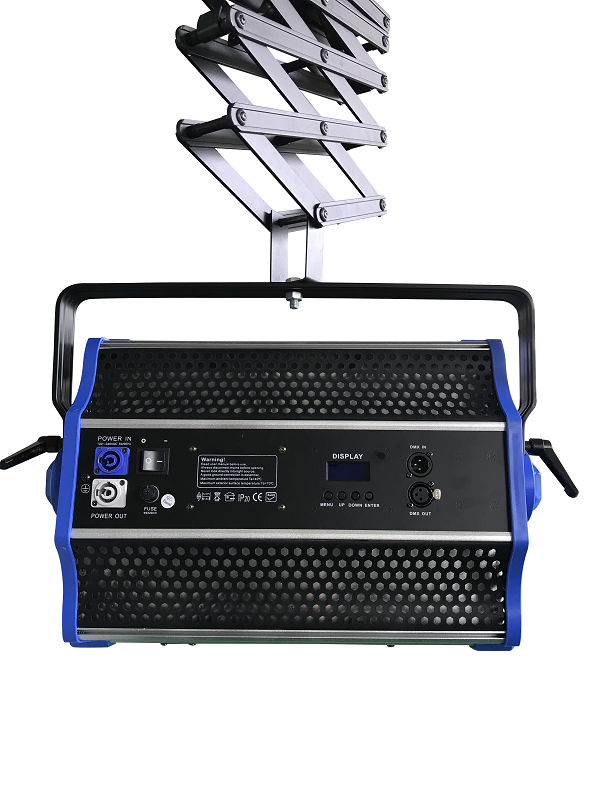

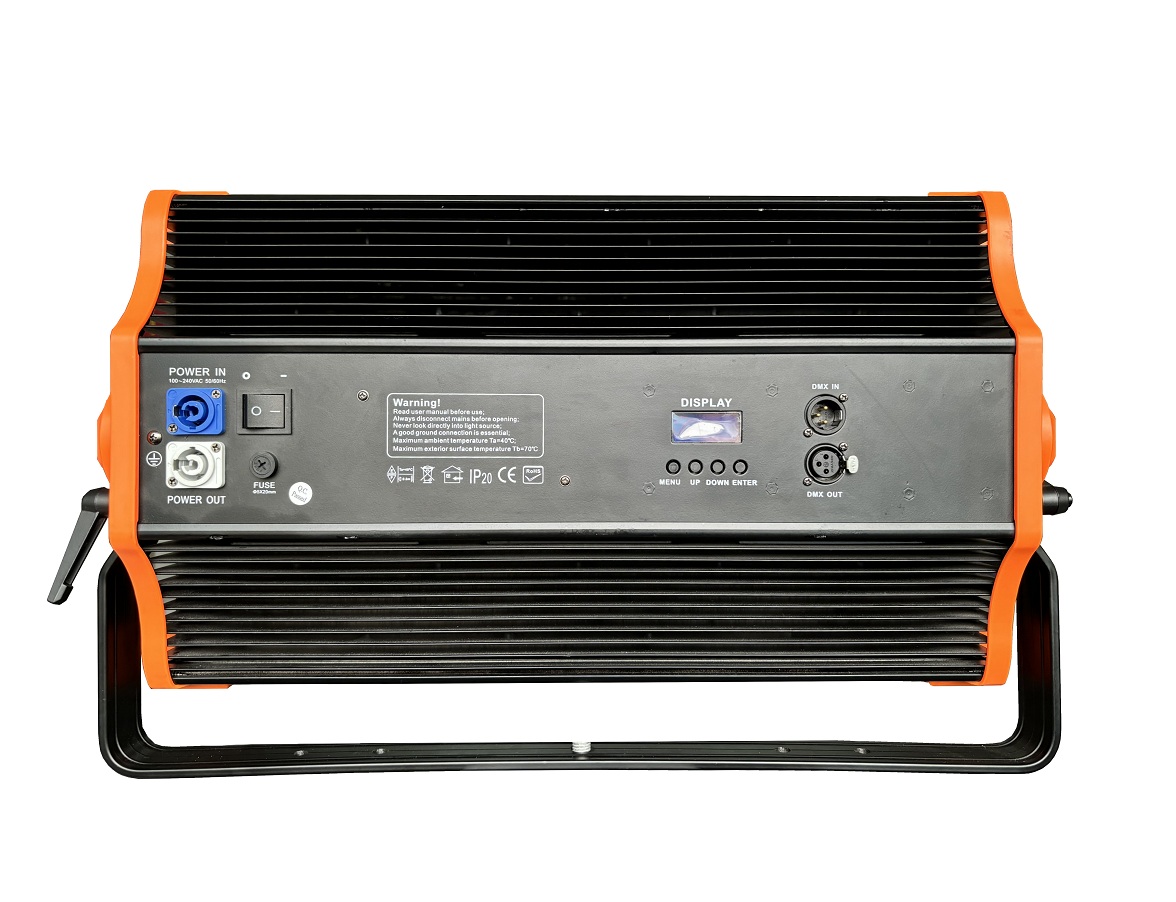

13. Control Panel Display: LCD screen;
14. Strobe: 1–30 flashes/second;
15. Optical System: 1) Uses imported milky-white PC light guide plate; hides individual LED chips and provides uniform light distribution; High luminous efficacy and anti-glare performance; 2) Features a honeycomb light-focusing grid for secondary light correction, eliminating glare issues;
16. Materials and structure: Utilizes a patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate, ensuring efficient heat dissipation from the LED chips;

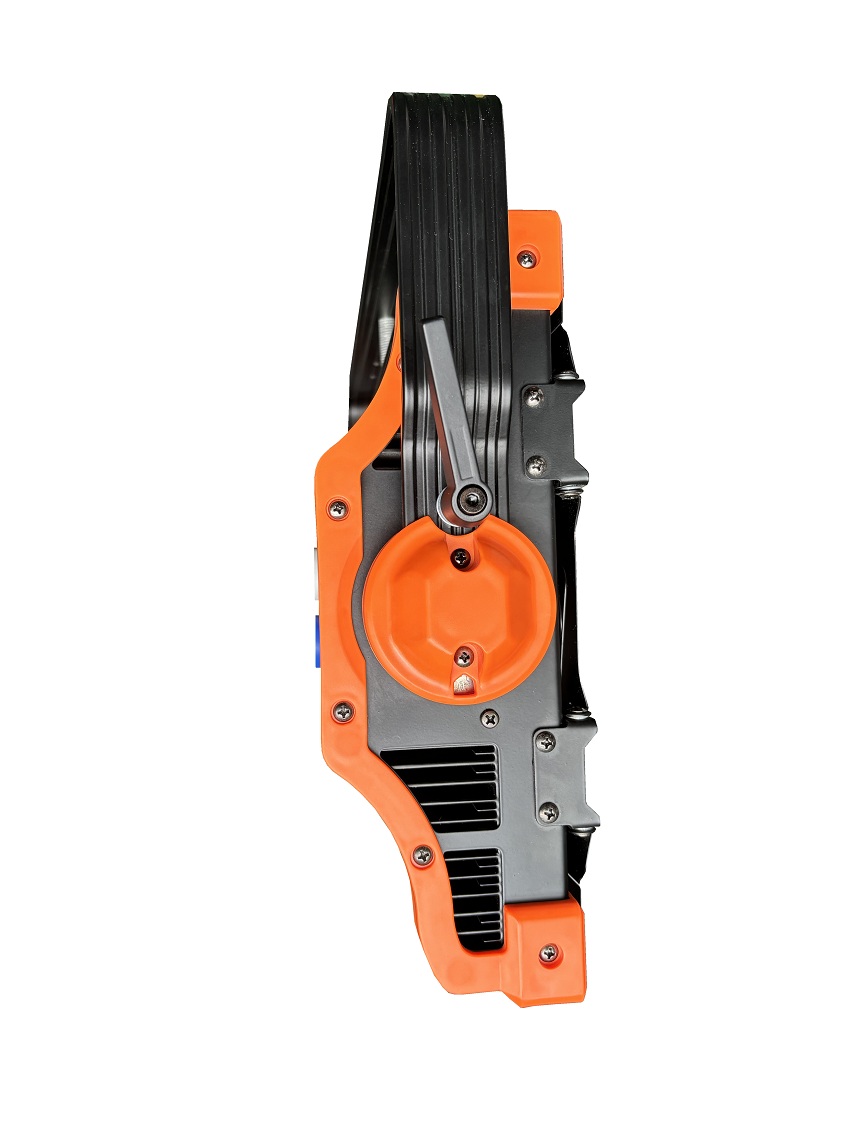

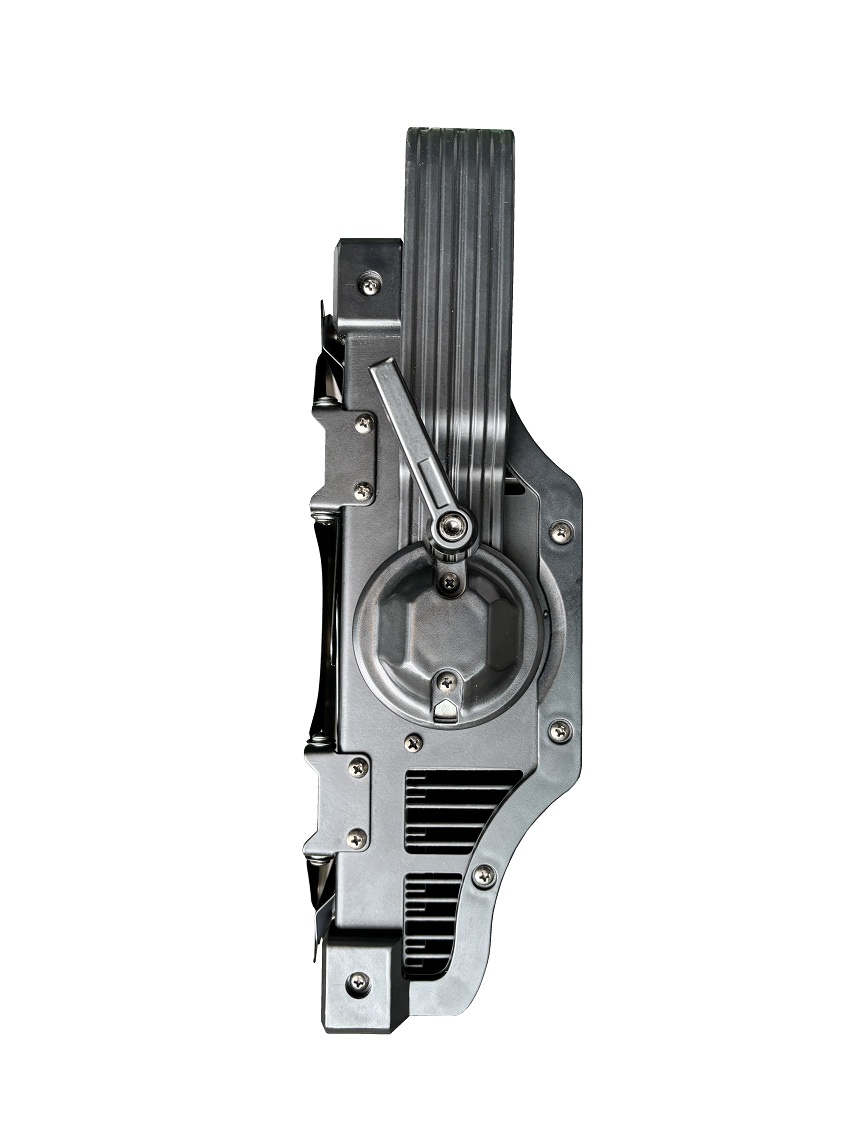

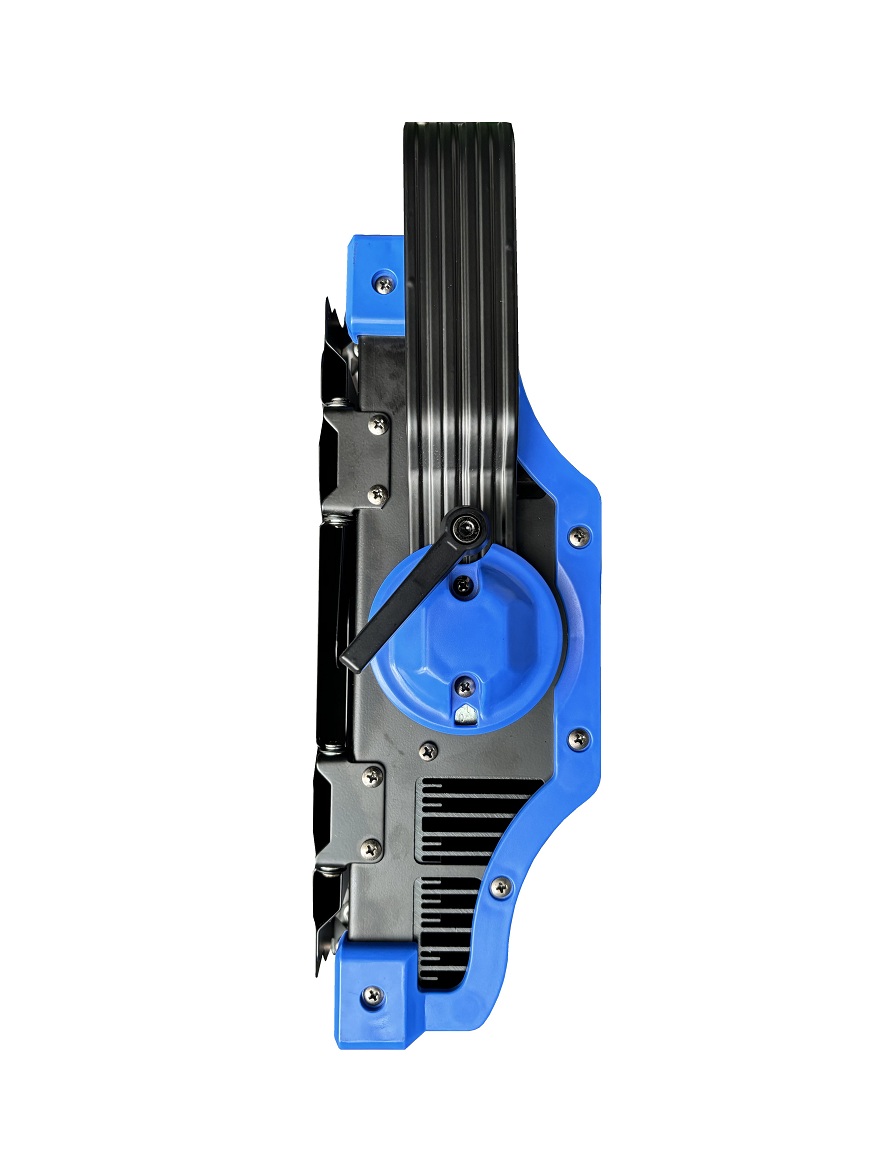

17. Heat dissipation method: Employs a fanless, integrated aluminum alloy heat dissipation system relying on natural air convection; this technology holds a utility model patent;
18. Noise level: Silent operation;
19. Protection rating: IP20;
20. Operating temperature range: -20°C to 35°C; includes a built-in sensor for over-temperature protection;

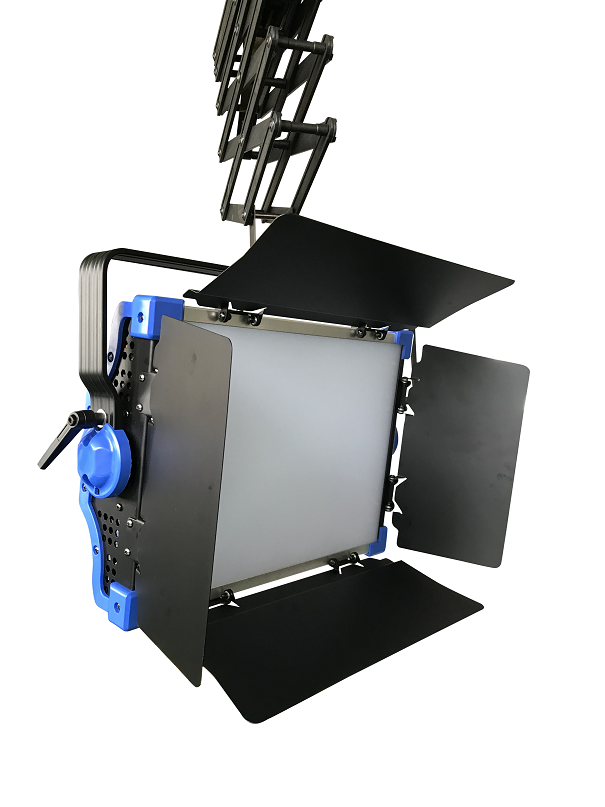

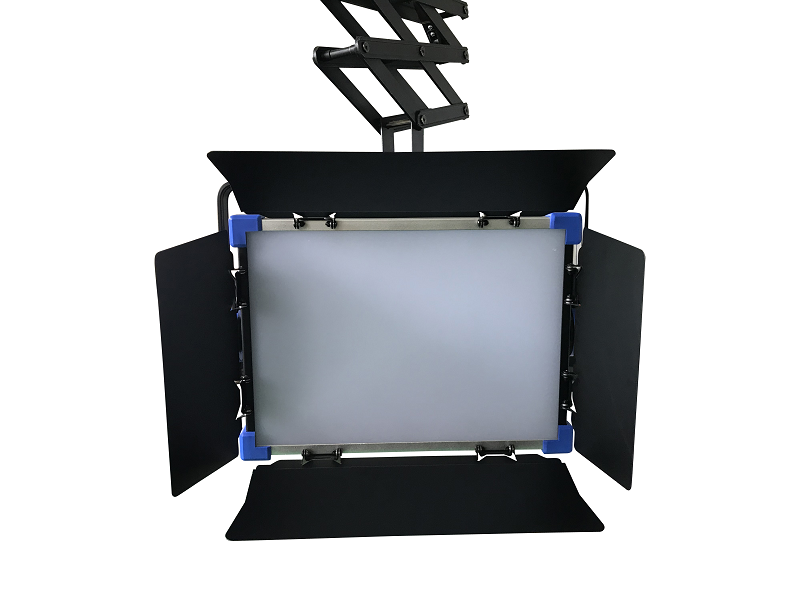

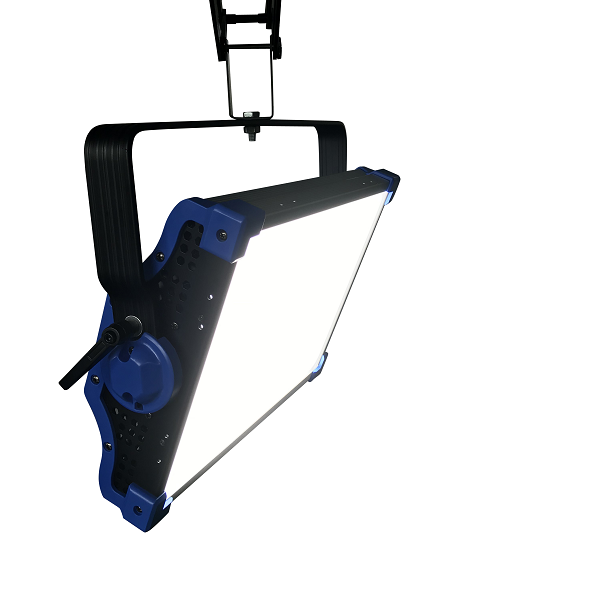

21. Mounting method: Choice of manual suspension or digital electric motorized yoke;
22. Fixture weight: 8.9 kg / 11.9 kg;
23. Fixture dimensions: 550 x 320 x 115 mm;

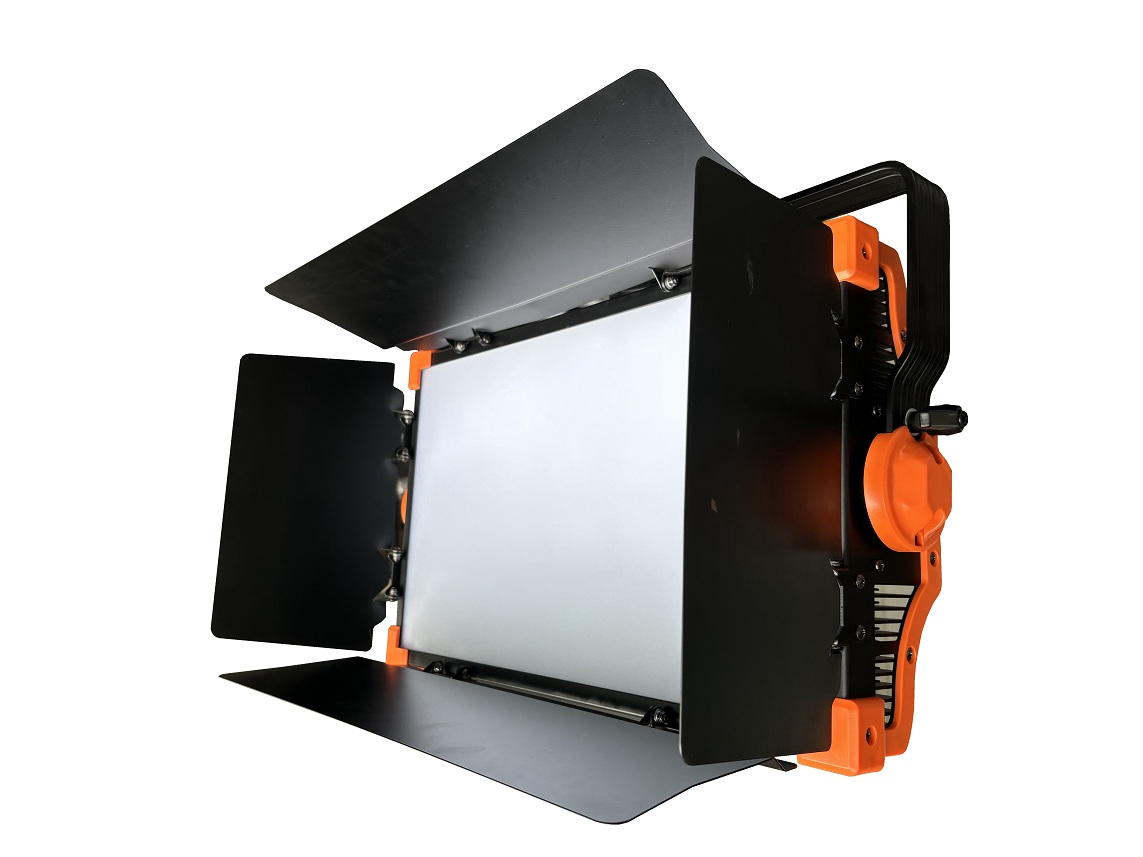

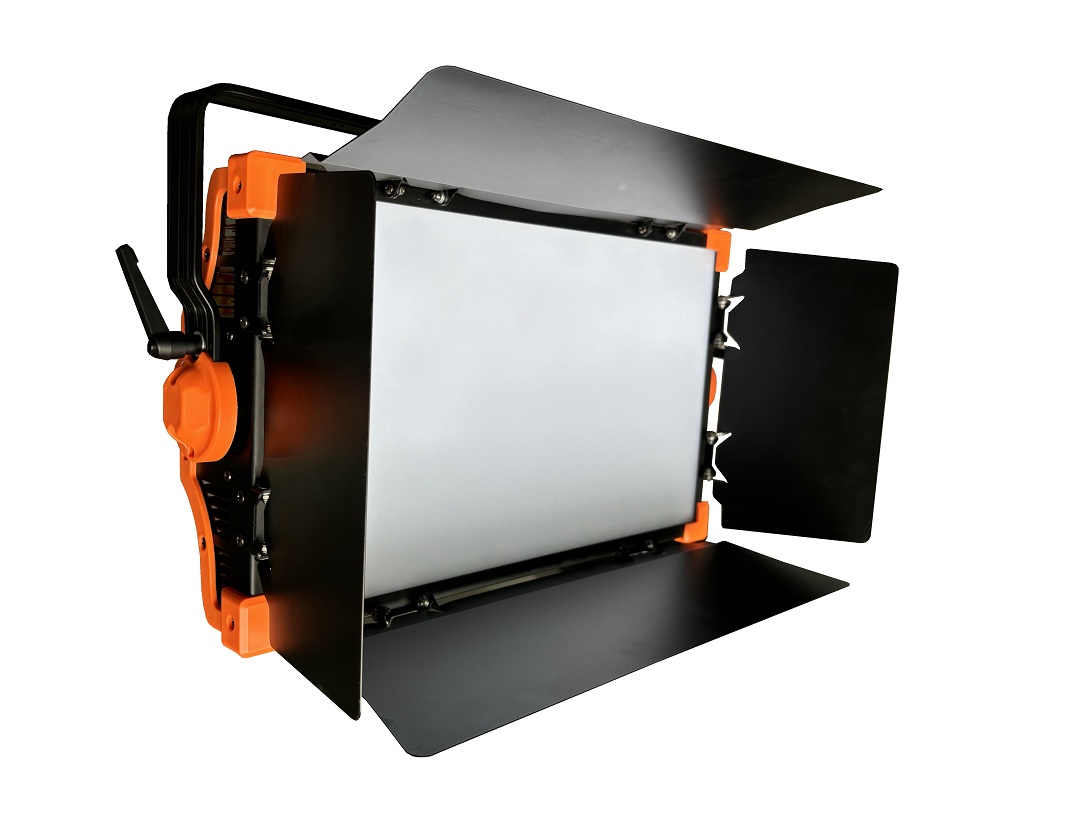

24. Impact-resistant design: Features molded plastic decorative frames and yoke arm covers to prevent damage from collisions; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
