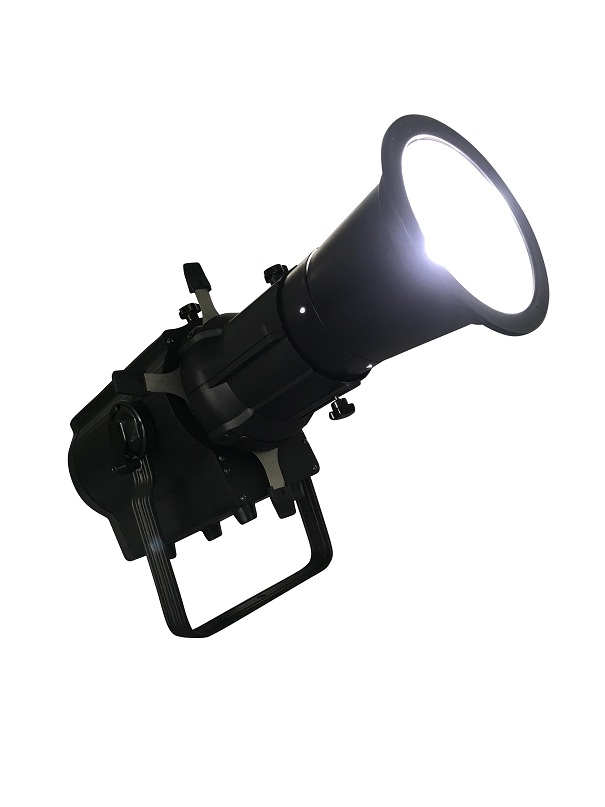

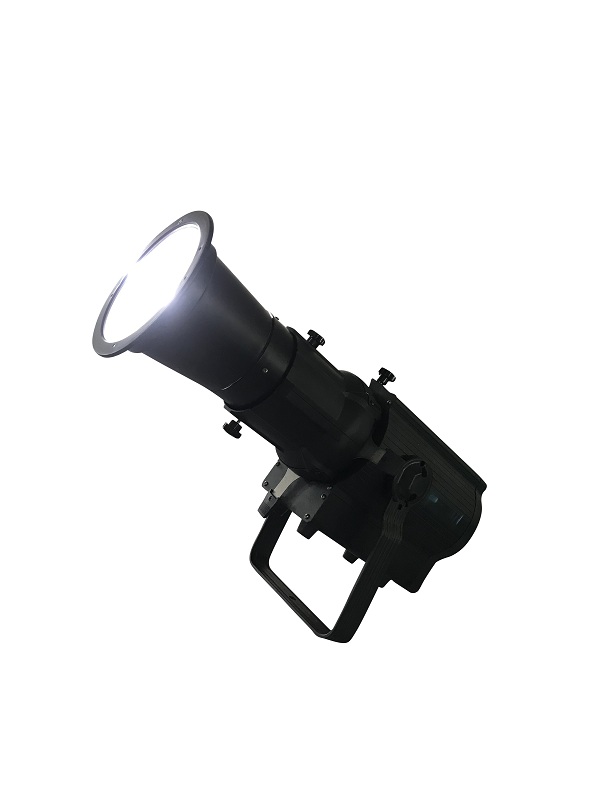

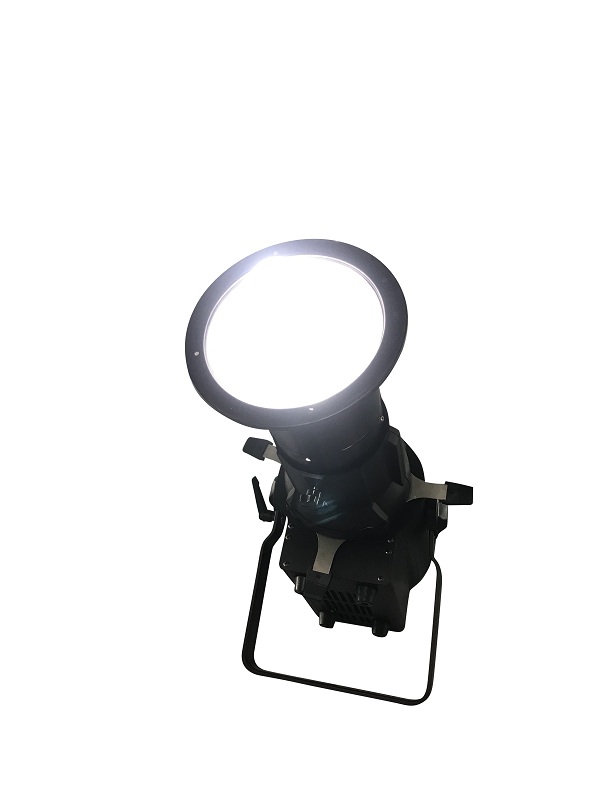

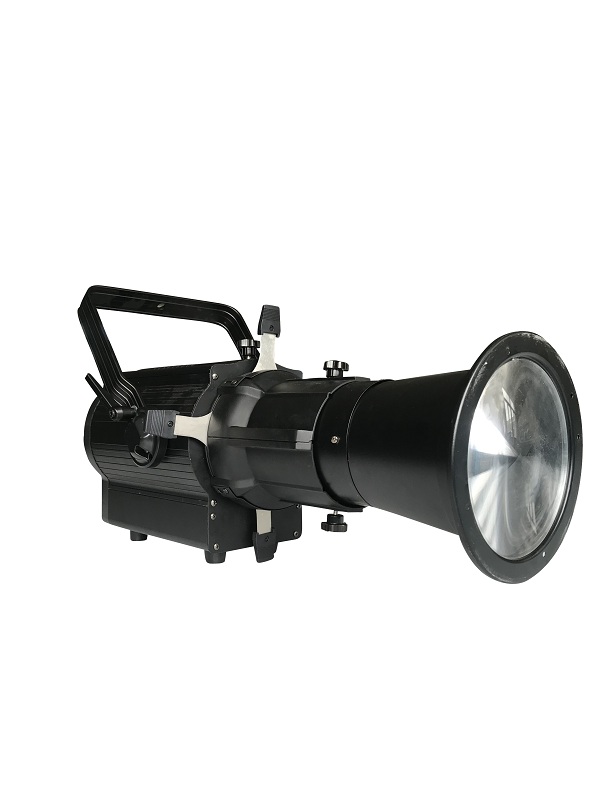

14-Degree Profile Spotlight

1. Power Supply: AC100-240V, 50/60Hz;
2. Light Source: 100/200/300/400/500/600W COB Single/Dual Color LED; RGBW/RGBWA 4-Color/5-Color LED;
3. Total Power Consumption: 130/230/330/430/530/630W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95, TLCI ≥95;
6. Beam Angle: 14° Fixed Focus;
7. Color Temperature: 3200K/5600K (Single/Dual Color options); Color mixing range: 2700K–10000K;
8. Control Channel Modes: Single Color (1/3 CH options); Dual Color (2/5/6 CH options);
9. Control Signal: DMX512/RDM Protocol;
10. Dimming Precision & Method: 30,000-level and 55,000-level options; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming Refresh Rate: >16K (selectable 16K/24K/32K); High-frequency control technology ensures flicker-free and jitter-free light output;
12. Drive method: Constant current drive;
13. Control panel display: LCD screen;
14. Luminous efficacy: 110 lm/W;
15. Strobe: 1–30 flashes/second;
16. Optical lens: Uses a combination of a condenser lens and a Fresnel lens assembly; provides uniform light distribution and high luminous efficiency; capable of producing both hard and soft-edged beams; delivers sharp, clean beam cuts without fringing;
17. Material and structure: Features an aluminum alloy profile, copper heat pipes, and a finned heat sink to ensure rapid heat dissipation from the LED source;
18. Cooling method: High-speed heat dissipation via copper pipes and fins combined with a silent fan (100W model utilizes fanless cooling);
19. Noise level: Silent fan operation; noise level does not exceed 25 dB;
20. Ingress protection rating: IP20;
21. Operating temperature monitoring: -20°C to 35°C; includes built-in thermal protection sensor for overheat protection;
22. Mounting method: Manual suspension;
23. Fixture weight: 9.1 kg;
24. Fixture dimensions: 760 x 350 x 335 mm;
25. Impact-resistant design: Molded plastic rear housing and mounting arm covers protect the fixture from collision damage; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
