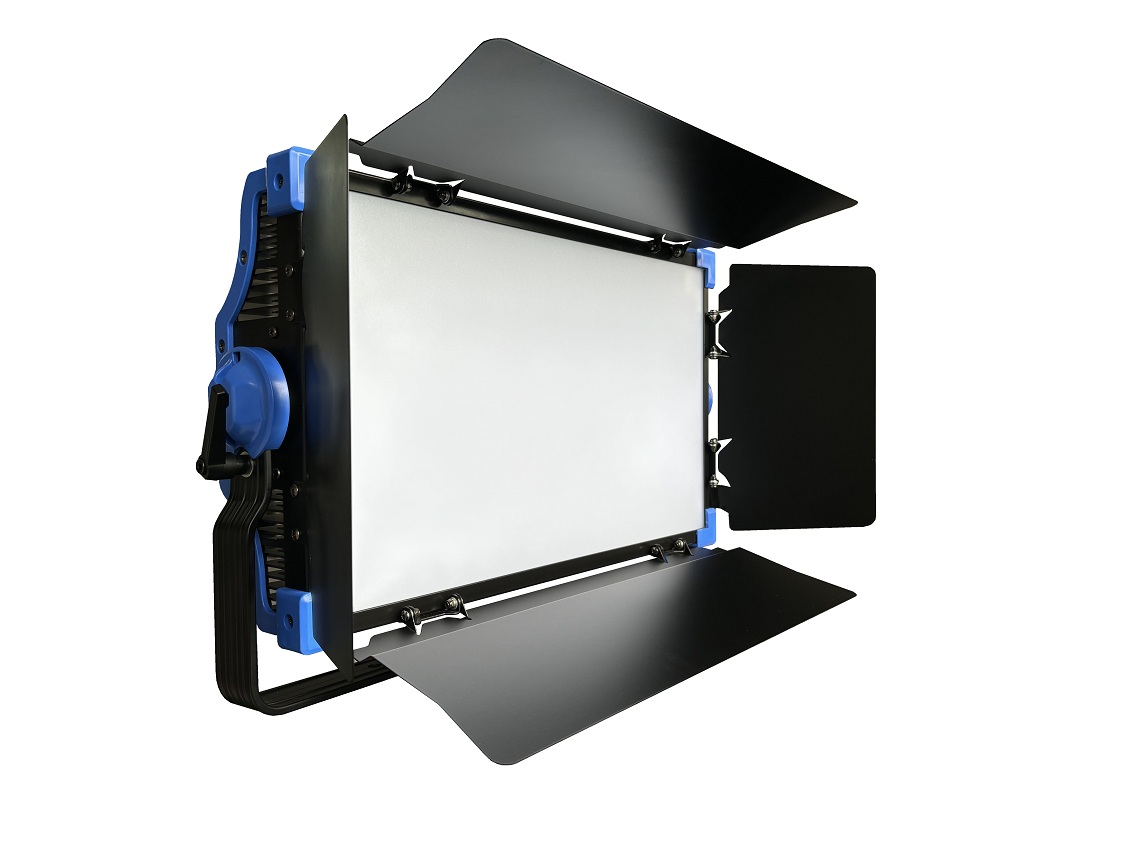

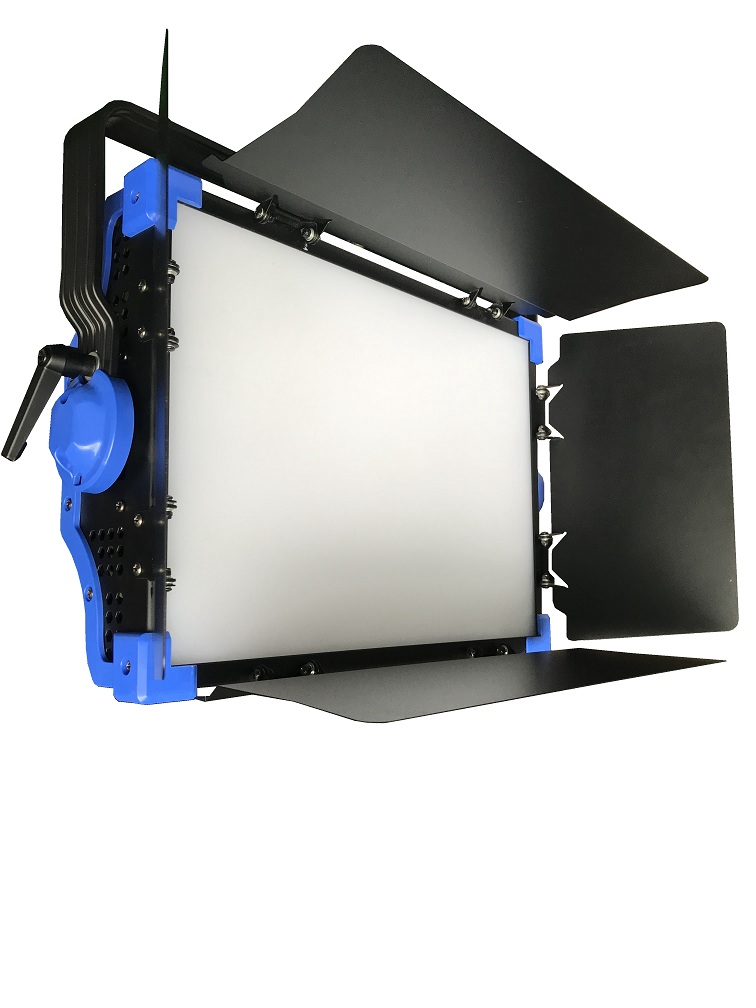

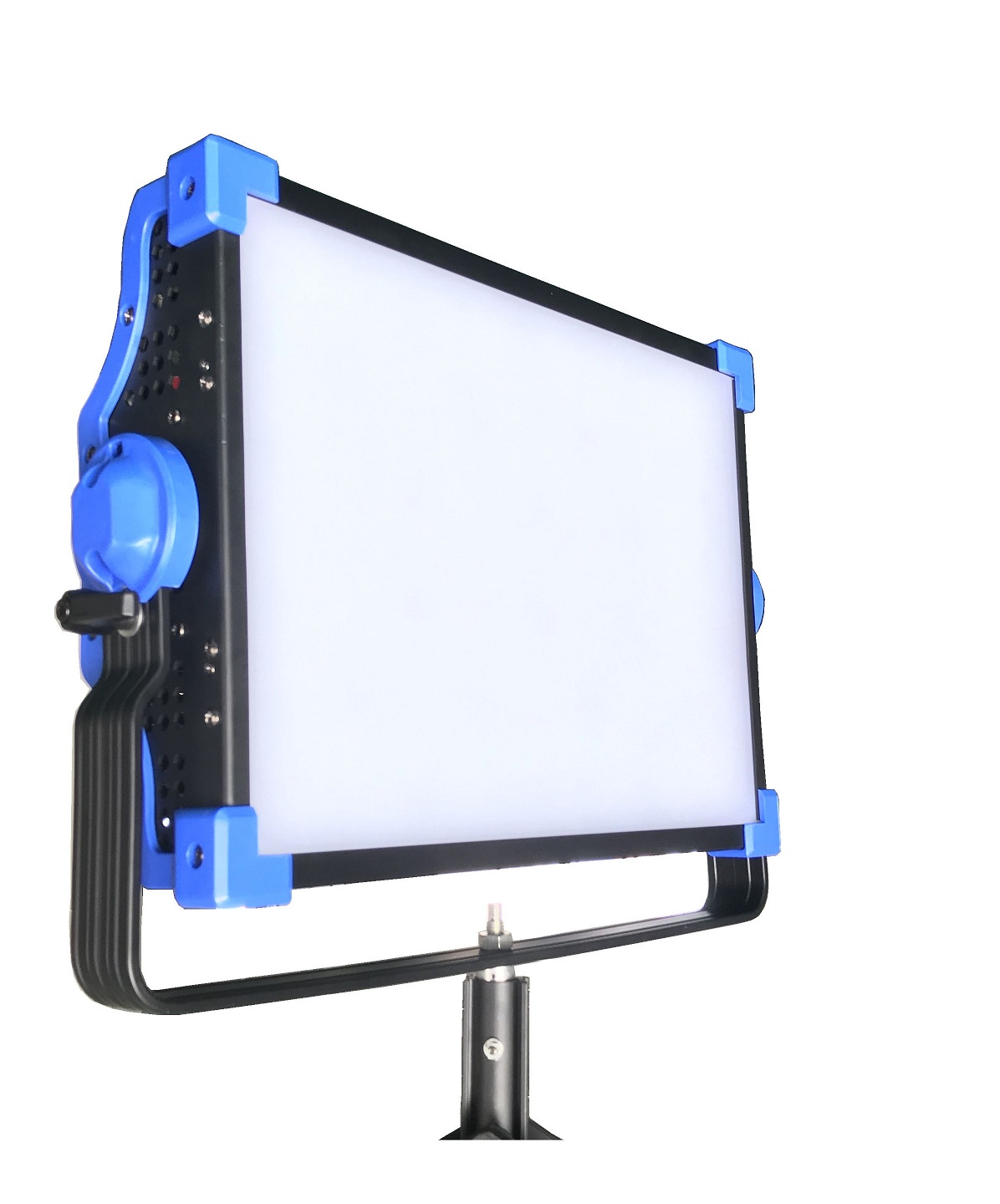

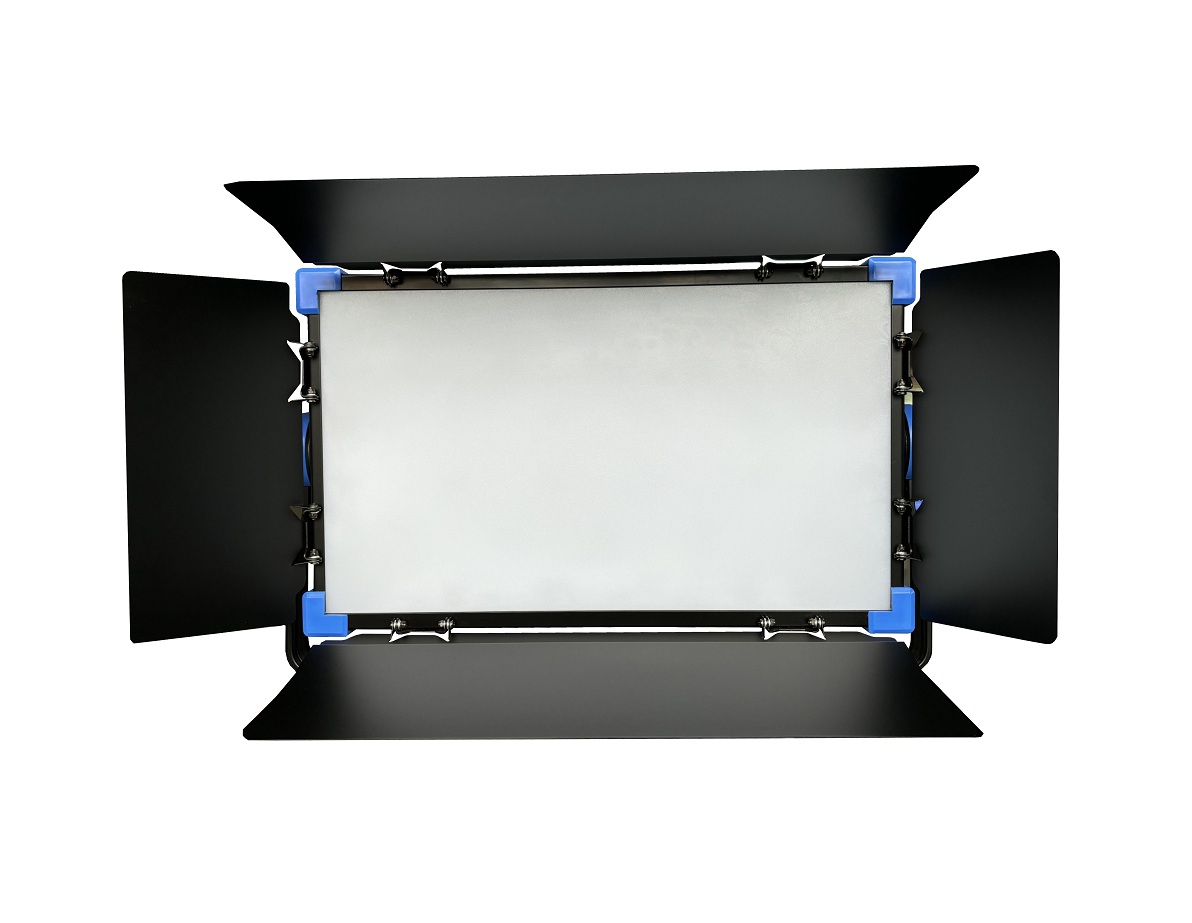

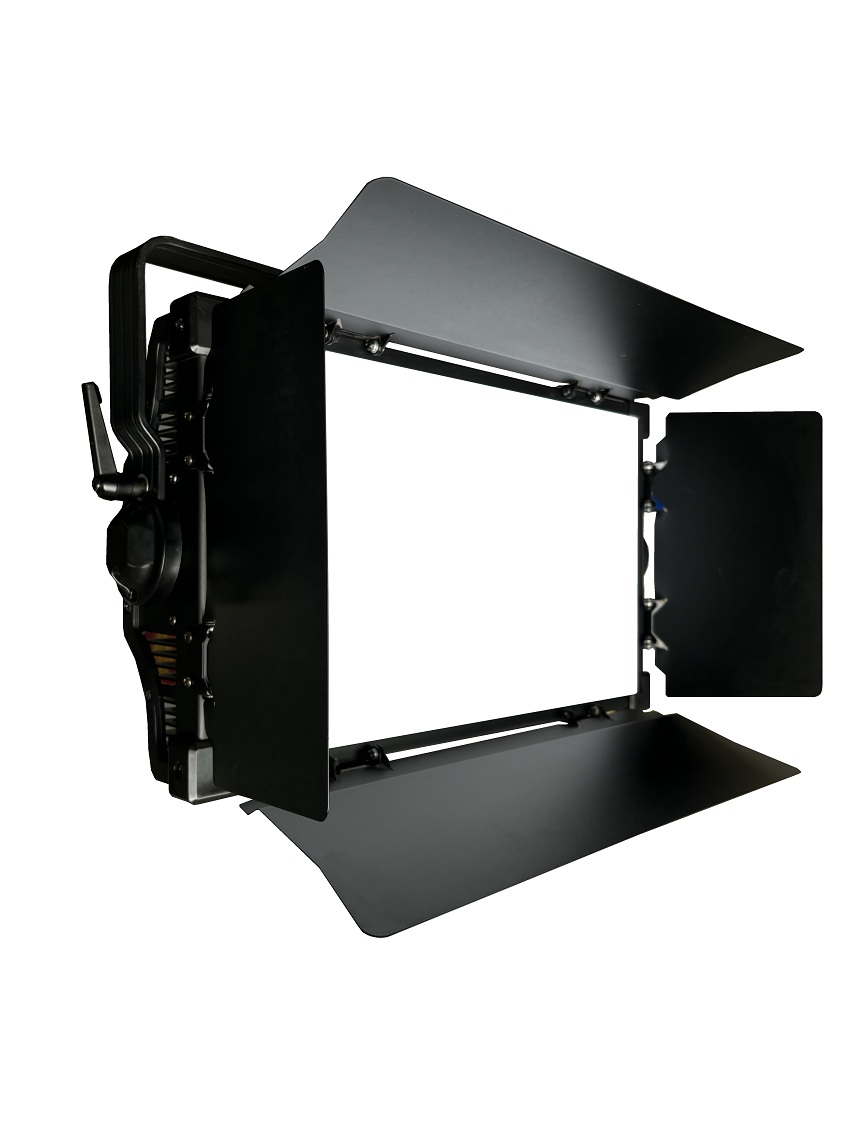

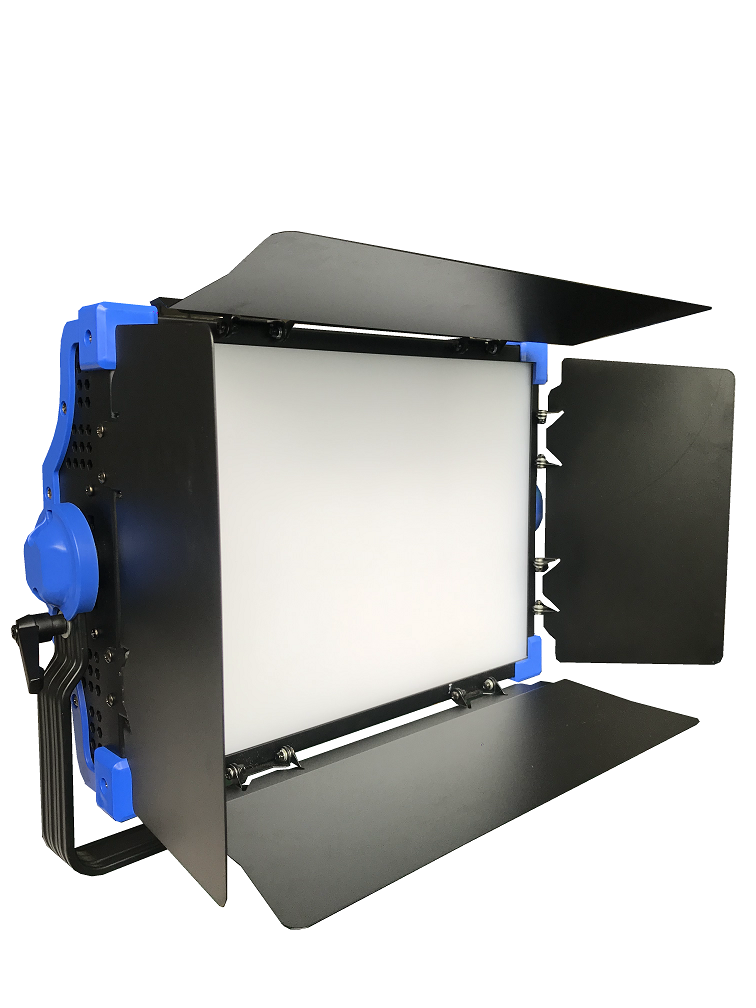

120W Flat Panel Light

1. Power Supply: AC 100-240V, 50/60Hz;
2. Light Source: At least 320 high-CRI SMD LED beads;
3. Power: LED bead power 120W; total fixture power 150W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95, TLCI ≥95;
6. Beam Angle: 120°;
7. Color Temperature: Options for 3200K, 5600K (single), or bi-color; bi-color adjustment range: 3200K–5600K;
8. Control Channel Modes: Single color (1 or 3 CH); Bi-color (2, 5, or 6 CH);
9. Control Signal: DMX512/RDM protocol;
10. Dimming Precision & Method: Selectable 8-bit, 16-bit, or 32-bit modes; 0–100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming Refresh Rate: >16kHz (selectable 16kHz/24kHz/32kHz); high-frequency control system ensures flicker-free and jitter-free light output;
12. Drive Method: Constant current drive;

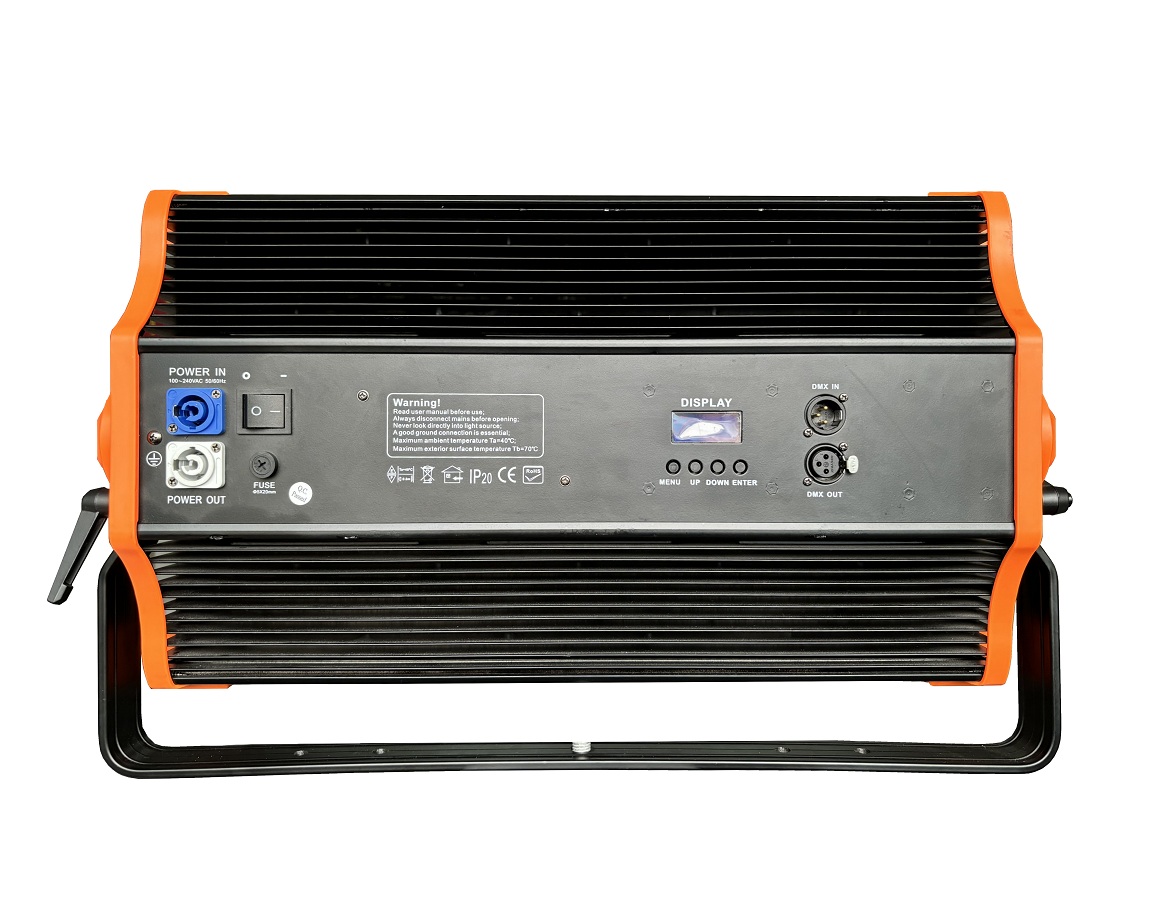

13. Control Panel Display: LCD screen;
14. Strobe: 1–30 flashes/second;

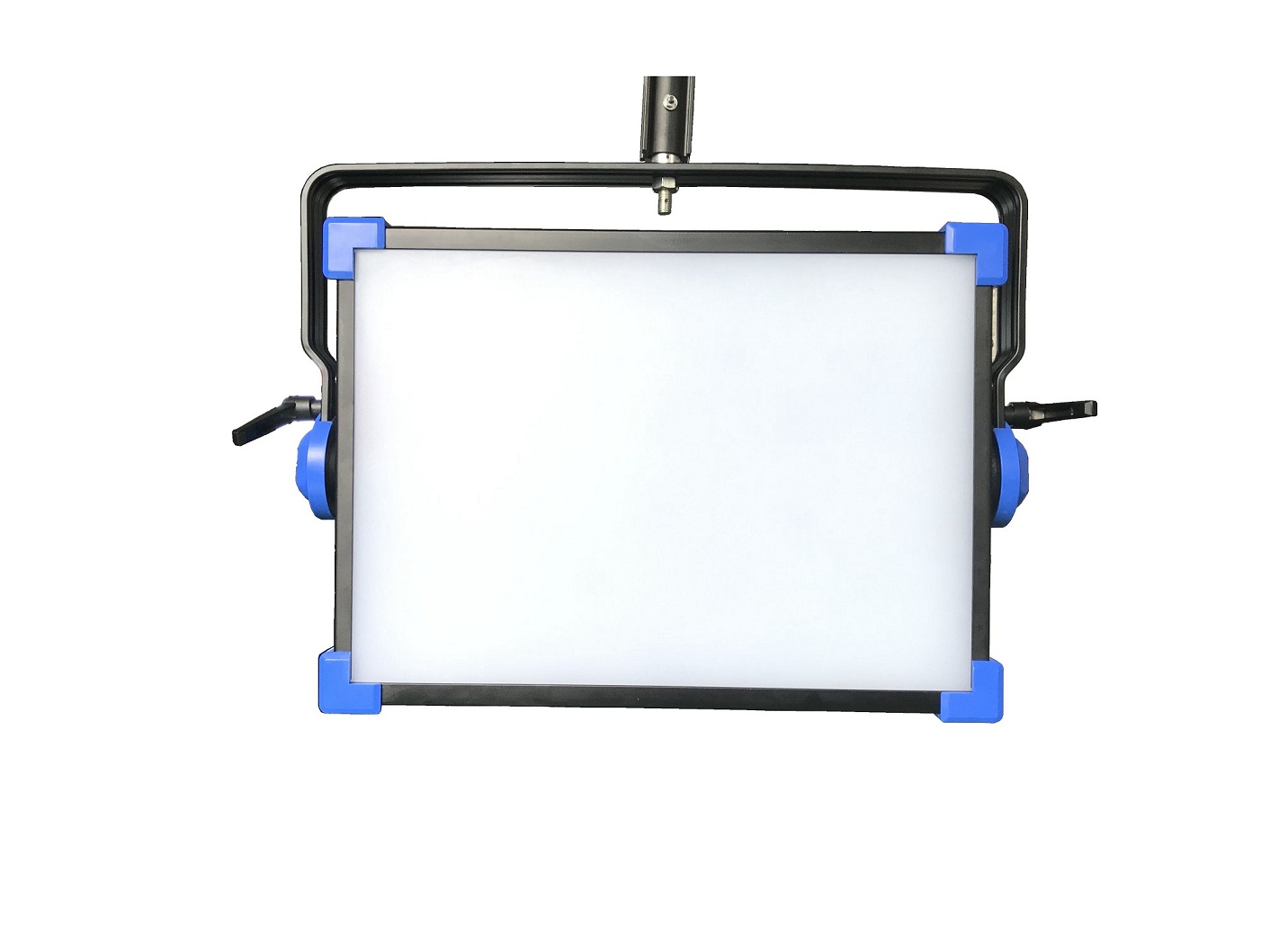

15. Optical System: 1) Uses imported milky-white PC light-guide plate; hides individual LED beads for uniform light distribution, high luminous efficacy, and anti-glare performance; 2) Secondary light correction via honeycomb grid to eliminate harsh glare;
16. Material & Structure: Patented integrated structure combining aluminum alloy profiles with a high-thermal-conductivity aluminum alloy substrate for efficient heat dissipation from the LED beads;

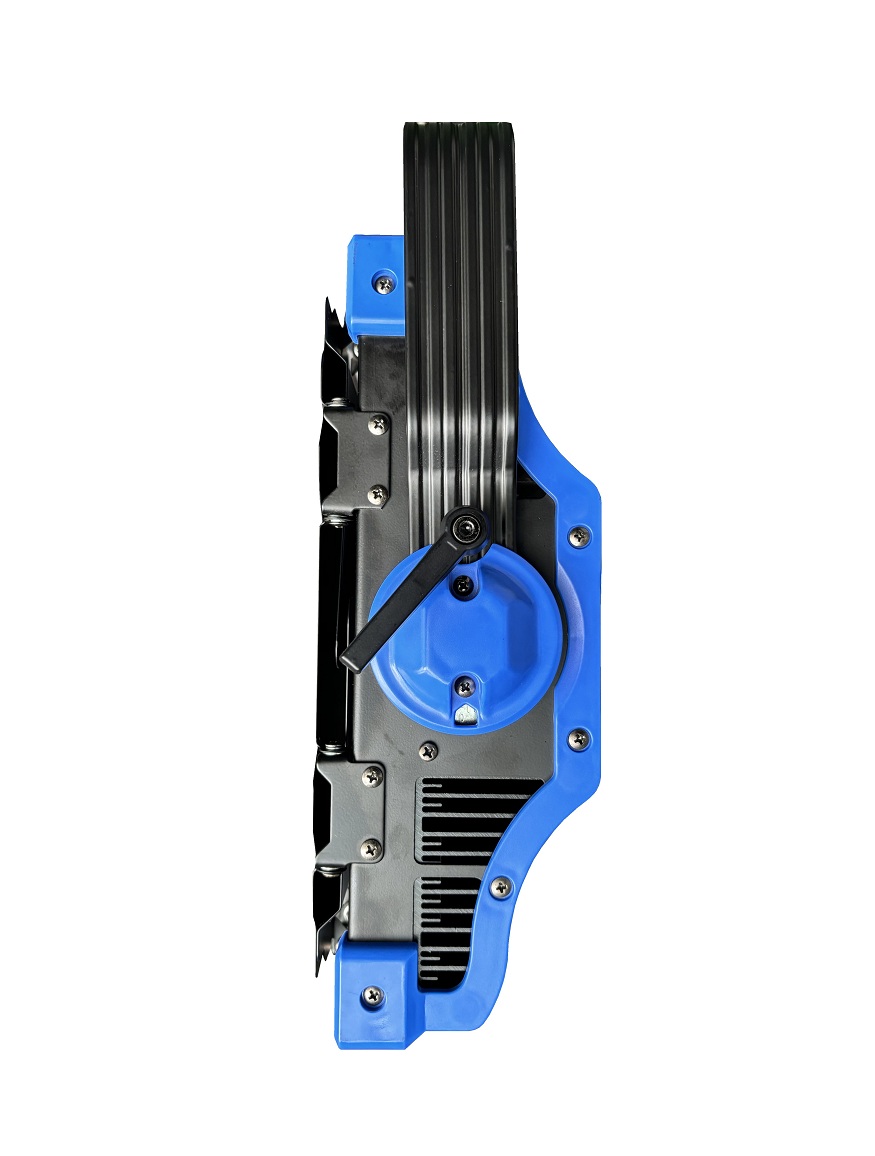

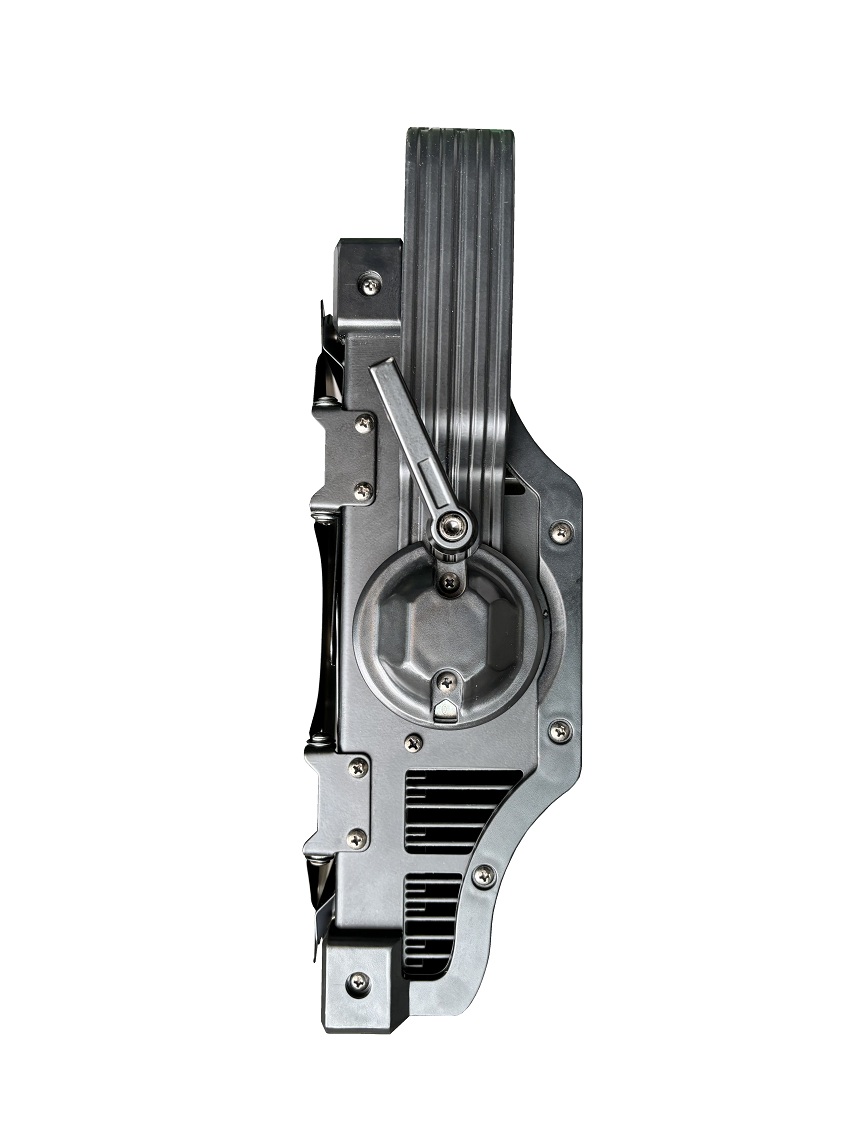

17. Cooling Method: Fanless integrated aluminum alloy cooling system utilizing natural air convection (Utility Model Patent awarded);
18. Noise Level: 0. db;
19. Protection rating: IP20;
20. Operating environment temperature monitoring: -20°C to 35°C; features a built-in temperature sensor for over-temperature protection;
21. Suspension method: Choice of manual suspension or digital electric motorized arm;
22. Fixture weight: 8.5 kg / 11.5 kg;

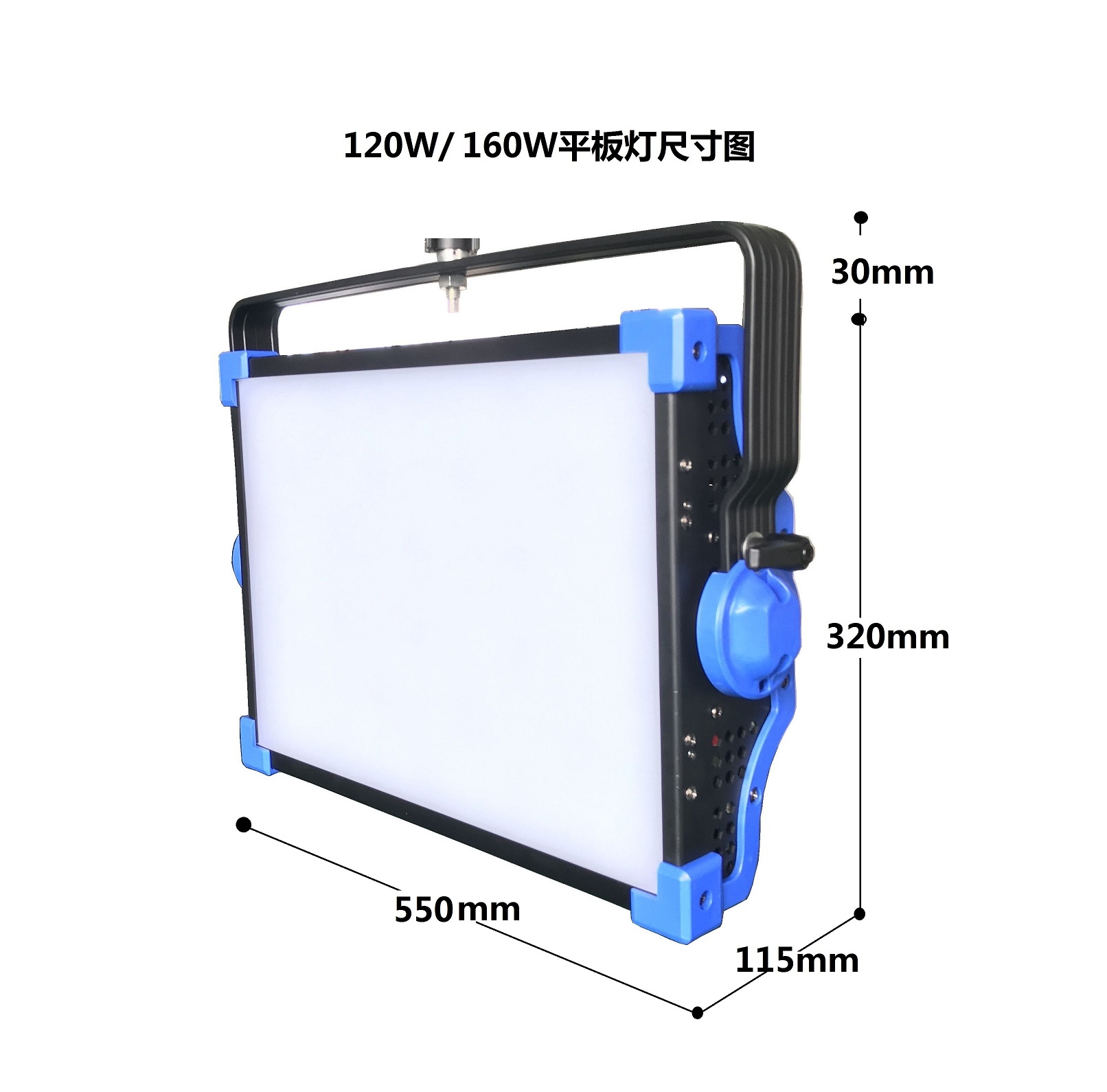

23. Fixture dimensions: 550 × 320 × 115 mm;

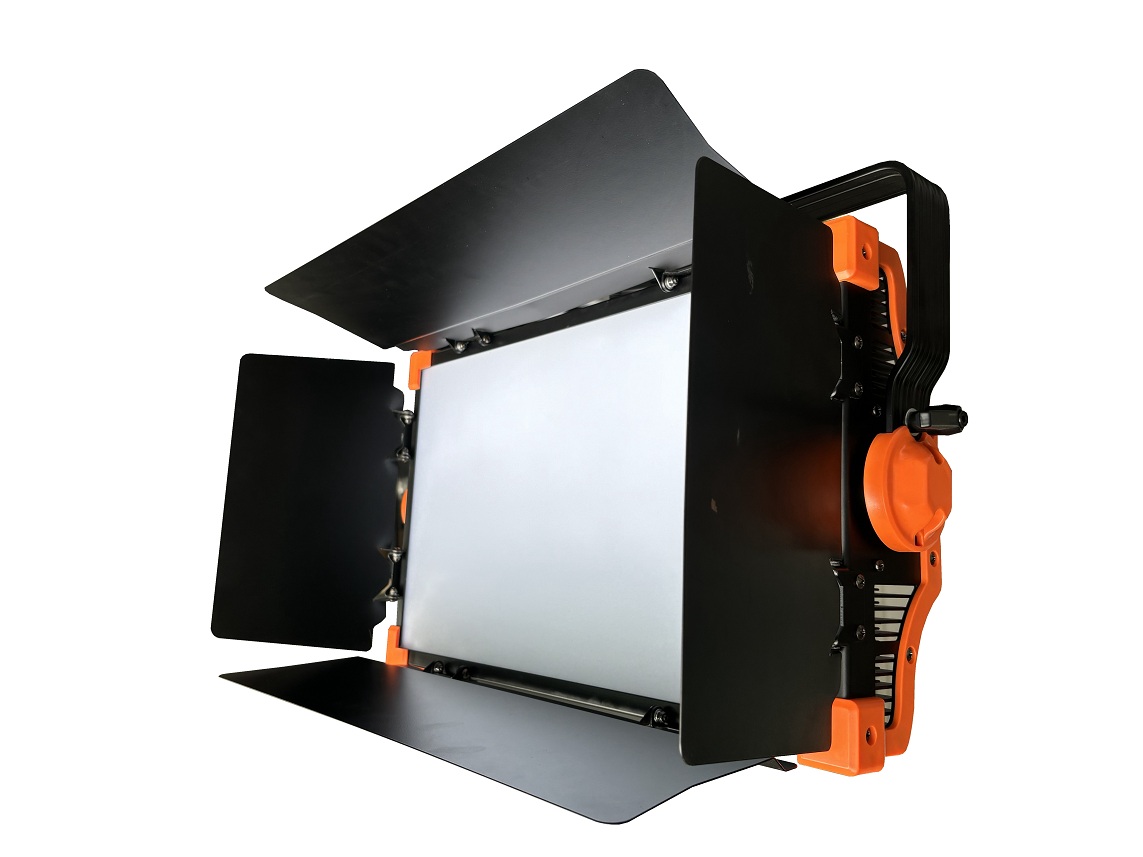

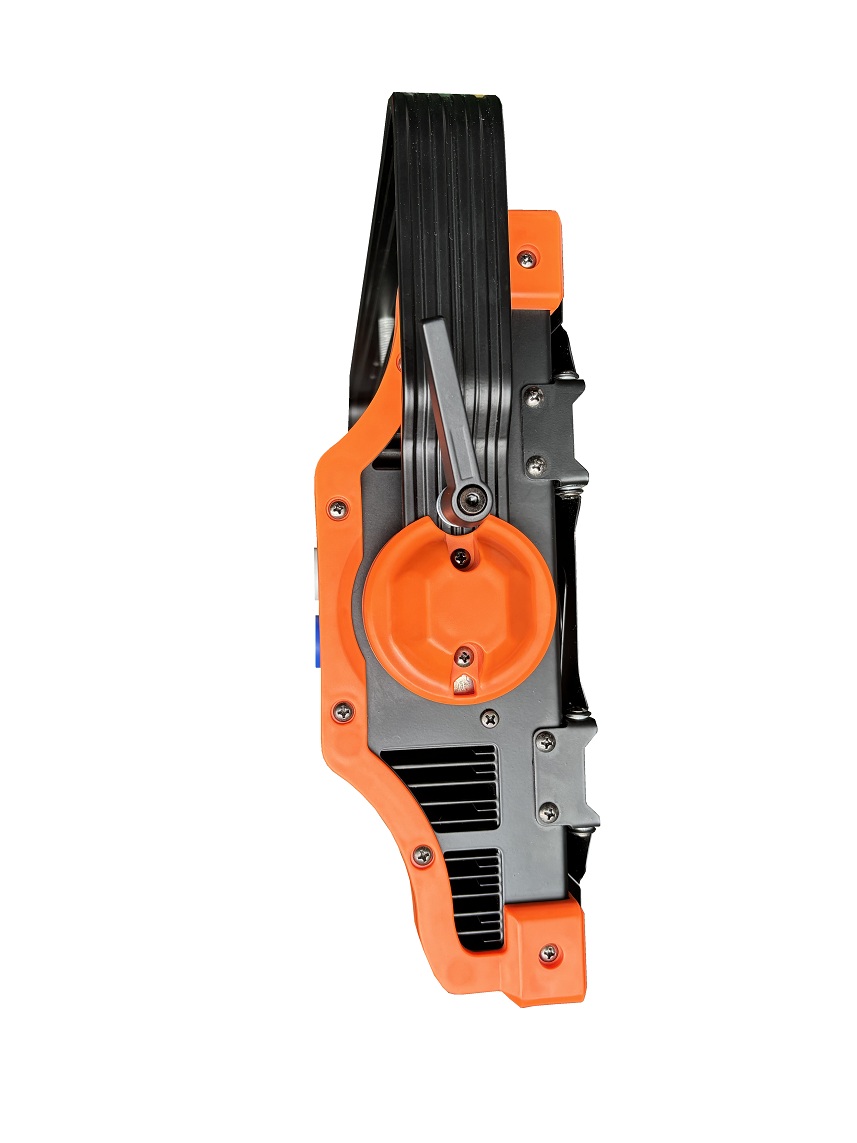

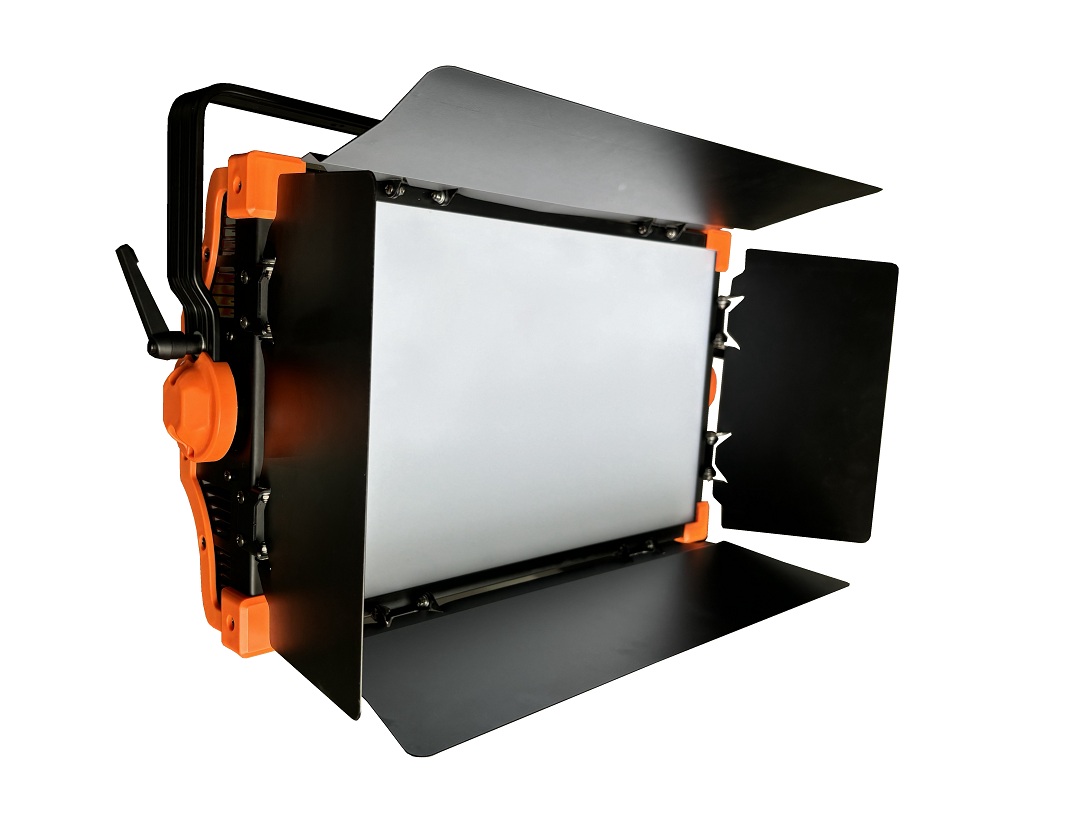

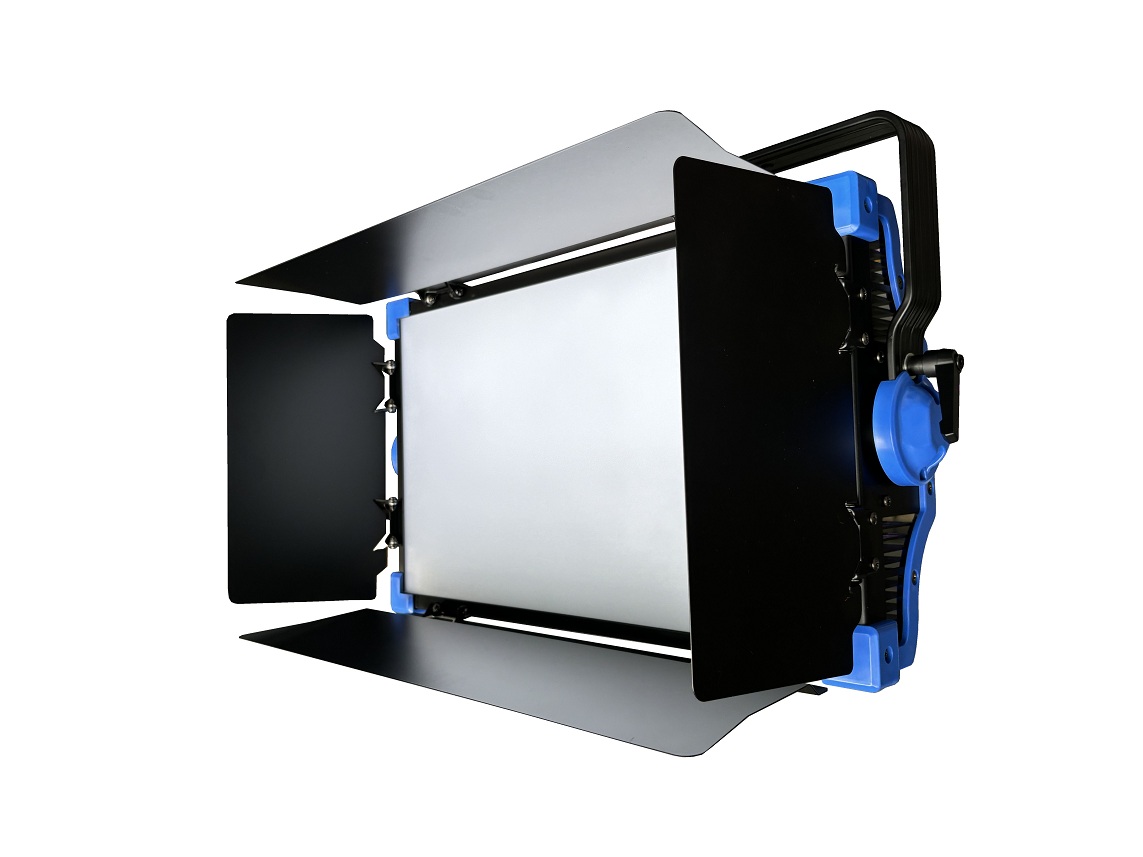

24. Anti-collision design: Molded plastic is used for the product frame and suspension arm covers to prevent collision damage; available in three colors—Diamond Black, Sky Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
