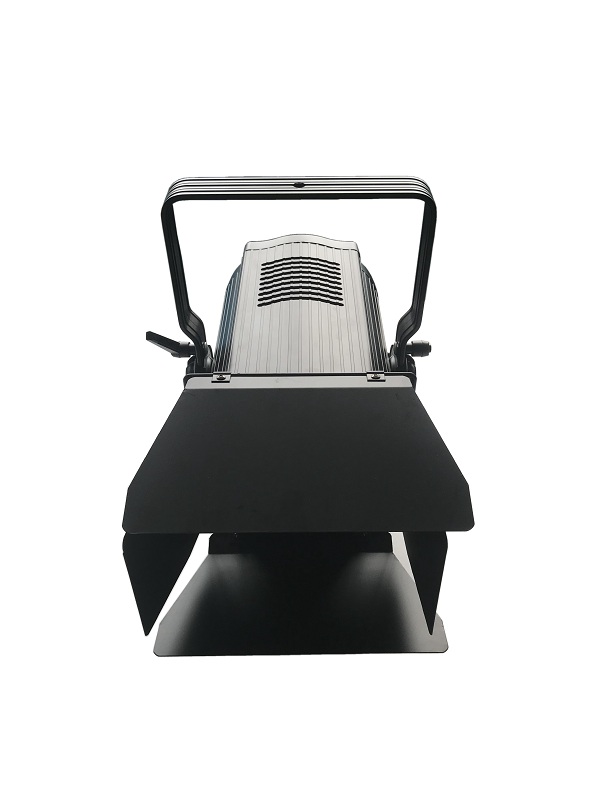

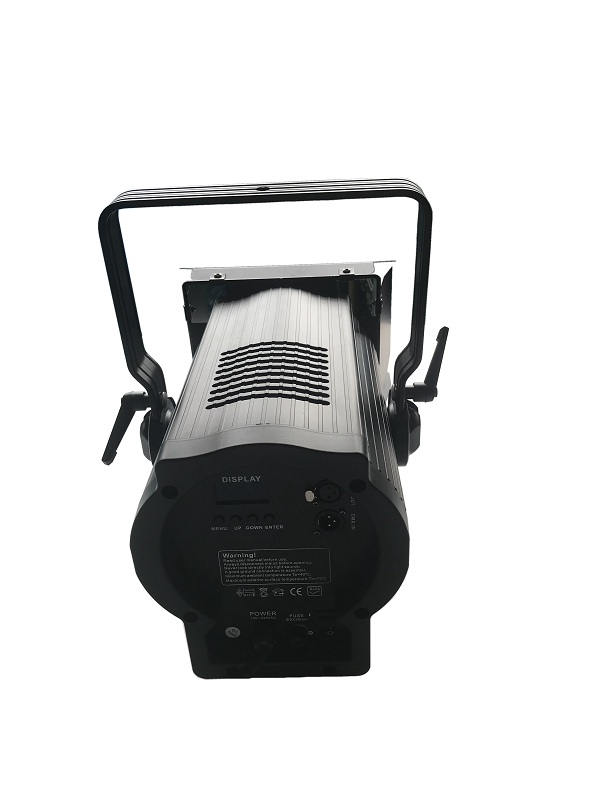

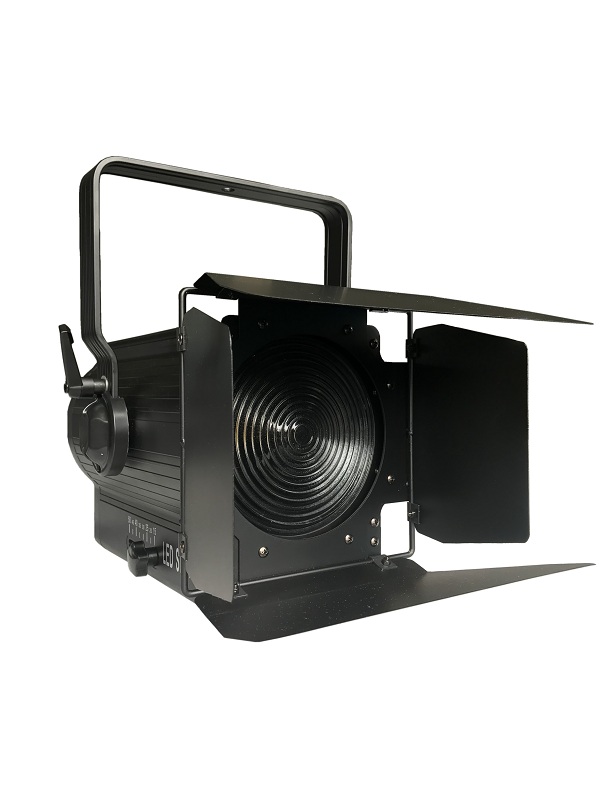

100W Classic Fanless Model

1. Power Supply: AC100-240V, 50/60Hz;
2. Light Source: 100W COB (Single/Bi-color or RGBW 4-in-1);
3. Total Power Consumption: 130W;
4. Light Source Lifespan: ≥50,000 hours;
5. Color Rendering Index: Ra ≥95, CRI ≥95; TLCI ≥95;
6. Beam Angle: 15-60° manual zoom;
7. Color Temperature: 3200K/5600K (Single or Bi-color options); RGBW color mixing range: 2700K-10000K;
8. Control Channel Modes: Selectable 1, 3, 5, 7, or 11 channels;
9. Control Signal: DMX512/RDM protocols;
10. Dimming Precision & Method: Selectable 8-bit/16-bit/32-bit; 0-100% smooth linear dimming; 3 selectable dimming curves;
11. Dimming Refresh Rate: >8K (selectable 16K/24K/32K); high-frequency control system ensures flicker-free and jitter-free light output;
12. Drive Method: Constant current drive;
13. Control Panel Display: LCD screen;
14. Luminous efficacy: 110 lm/W;
15. Strobe rate: 1–30 flashes/second;
16. Optical lens: 1) Fresnel/plano-convex PC lens made of high-transmittance borosilicate glass material, ensuring uniform light output and high luminous efficiency; 2) Lens diameter: 175 mm (Fresnel) / 150 mm (plano-convex PC);
17. Material and structure: Aluminum alloy profile combined with a high-thermal-conductivity aluminum alloy heat sink, facilitating rapid heat dissipation from the LED chips;
18. Heat dissipation method: High-speed heat dissipation via high-thermal-conductivity aluminum alloy heat sink;
19. Noise level: 0 dB;
20. Protection rating: IP20;
21. Operating temperature monitoring: -20°C to 35°C; features a built-in temperature sensor for over-temperature protection;
22. Mounting method: Manual suspension;
23. Fixture weight: 9.5 kg;
24. Fixture dimensions: 460 × 295 × 290 mm;
25. Impact-resistant design: Molded plastic components (front bezel, rear cover, and suspension arm cover) protect the fixture from impact damage; available in three colors—Diamond Black, Lake Blue, and Dawn Orange—exuding a sense of dignity, luxury, and prestige;
